<h1>Navigation</h1>


<p>

    <br>

</p>


<p><img class="fr-dib fr-draggable" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014930003/original/bxBS-bKTLV1MKIyJN_0Ab8fyZnSJ729c-w.JPG?1493283136" style="width: 508px; height: 228.512px;" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014930003/original/bxBS-bKTLV1MKIyJN_0Ab8fyZnSJ729c-w.JPG?1493283136" data-fileid="14014930003" data-uniquekey="1493278433374"></p>


<p>

    <br>

</p>


<h2>The tabs</h2>


<p>In the top of the page, you can select between the different tabs. These give you access to all the installations resources your user has access to.&nbsp;</p>


<ul>

    <li>This Installation</li>

    <li>Communicators</li>

    <li>Displays</li>

    <li>Products</li>

    <li>Designs</li>

    <li>Dynamic Images</li>

    <li>Jobs</li>

    <li>Vision</li>

    <li>Mobile</li>

    <li>Configuration</li>

</ul>


<p>

    <br>

</p>


<h2>Right click actions</h2>


<p>When right clicking an item you will get access to actions that will effect&nbsp;</p>


<p>

    <br>

</p>


<h2>Bottom actionbar</h2>


<p>In the bottom actionbar, you will find actions that do not effect specific items like adding a new display, print. installation details.&nbsp;</p>


<p>

    <br>

</p>


<p>The actions will vary to match the tab you are in.</p>


<p>

    <br>

</p>


<p><img class="fr-dib fr-draggable fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14017152930/original/GVwLfYfCbk0G7Uel-pT_HA2RQbqD9MUCvA.JPG?1498032809" data-fileid="14017152930" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14017152930/original/GVwLfYfCbk0G7Uel-pT_HA2RQbqD9MUCvA.JPG?1498032809" data-uniquekey="1498031833601"></p>


<p>

    <br>

</p>


<h2>

    <br>

</h2>


<h2>Side bar <img src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014779439/original/K8jgI3xP_6ZtlaKwMgNcH_STEyQCNexdfQ.JPG?1493032199" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014779439/original/K8jgI3xP_6ZtlaKwMgNcH_STEyQCNexdfQ.JPG?1493032199" data-fileid="14014779439" data-uniquekey="1493030989664" class="fr-dii fr-draggable" style="width: 21px;height: 66.9565px;position: relative;bottom: -17px;"></h2>


<h2>

    <br>

</h2>


<p>

    <br>

</p>


<p>The sidebar is a detailed information panel that will give you additional information on the currently selected item.</p>


<p>

    <br>

</p>


<p>Click on the arrow on the right side of the page to access the side bar.&nbsp;</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<h2>Top bar<img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14019100766/original/eEBHWrLEWPgxrzKNdFG8UELTaOmDJa8Xag?1502094677" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14019100766/original/eEBHWrLEWPgxrzKNdFG8UELTaOmDJa8Xag?1502094677" data-fileid="14019100766" data-uniquekey="1502094634025" style="     position: relative;     bottom: 6px; "></h2>


<p>

    <br>

</p>


<p>In the top bar, you can&nbsp;</p>


<p>

    <br>

</p>


<p><img class="fr-draggable fr-fil fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14019162786/original/QbH3piBdwsojkqBWXJ9FlFCdrZZHjzp9KA.jpg?1502185262" data-fileid="14019162786" style="

    position: relative;

    bottom: 12px;

" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14019162786/original/QbH3piBdwsojkqBWXJ9FlFCdrZZHjzp9KA.jpg?1502185262" data-uniquekey="1502185246974"></p>


<p>Manage your profile.</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<p><img class="fr-draggable fr-fil fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14019103500/original/dbrEKPCs0PAbErRS2UlUbvPR9F_CWZCtpw.jpg?1502096785" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14019103500/original/dbrEKPCs0PAbErRS2UlUbvPR9F_CWZCtpw.jpg?1502096785" data-fileid="14019103500" data-uniquekey="1502096706778" style="

    position: relative;

    bottom: 12px;

"></p>


<p>Create support tickets or get contact information.</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<h2>Health Dashboard<img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14020361034/original/g0UwHSZvBwMHqNh9lV6Q2oTLOj_rzEkqiw?1504603075" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14020361034/original/g0UwHSZvBwMHqNh9lV6Q2oTLOj_rzEkqiw?1504603075" data-fileid="14020361034" data-uniquekey="1504603042749"></h2>


<p>

    <br>

</p>


<p>In the Bottum of the screen, you will have access the Health Dashboard.&nbsp;</p>


<p>If the click the button you will you get a view of Error and problems on the system.</p>


<p>

    <br>

</p>


<h3>Health Status</h3>


<p>The color gives you the state of the system.&nbsp;</p>


<p>

    <br>

</p>


<p>Green - OK&nbsp;</p>


<p>Yellow - Warning!&nbsp;</p>


<p>Red - Error! ATTENTION NEEDED</p>


<p>

    <br>

</p>


<h3>Health Overview</h3>


<p>Here you can see all errors.&nbsp;</p>


<p>

    <br>

</p>


<p>You can filter the list by Installation and time.</p>


<p>

    <br>

</p>


<h4><strong>AlertSeverity</strong></h4>


<p>There are two Alert severities. Critical and warning.</p>


<p>

    <br>

</p>


<p>Critical alert</p>


<p>The critical alert indicates that the installation is having major problems that are causing<span></span> the installation not to function properly.</p>


<p>

    <br>

</p>


<p>Warning alert</p>


<p>The warning alert indicates that the installation is having minor problems that are a minor inconvenience but will not affect the overall functionality of the installation</p>


<p>

    <br>

</p>


<p><strong>Acknowledge alerts</strong></p>


<p>When you acknowledge an alert the alert will be removed from the notification system and the system will stop notifying you about the alert. You can still see the alert in the acknowledged list.&nbsp;</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<h1><img class="fr-draggable fr-fil fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014840112/original/3N8GFDNsFE4mHlB9a5X6YWUw_lbvmY4FrQ.jpg?1493126281" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014840112/original/3N8GFDNsFE4mHlB9a5X6YWUw_lbvmY4FrQ.jpg?1493126281" data-fileid="14014840112" data-uniquekey="1493126271128" style="width: 41px; height: 41.5325px;">&nbsp;System Overview</h1>


<p>

    <br>

</p>


<p>In the "This Installation" tab, you can get information about the state of the system. Do you need easy access to failed displays, communicator status, product updates this is the place to be. &nbsp;</p>


<p>In the top of each section, you will find a circle diagram that will give you a summarized status and an icon that tells if there are errors that need your attention.</p>


<p>

    <br>

</p>


<table class="fr-no-borders" style="width: 100%;">

    <tbody>

        <tr>

            <td style="width: 33.3333%; text-align: center; vertical-align: middle;"><img class="fr-dib fr-draggable" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014693129/original/OxxlwE7r1_lxdhNEyQI48hf7FzjWalKqpg.jpg?1492762208" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014693129/original/OxxlwE7r1_lxdhNEyQI48hf7FzjWalKqpg.jpg?1492762208" data-fileid="14014693129" data-uniquekey="1492762171362" style="width: 75px; height: 75px;">

                <br>

            </td>

            <td style="width: 33.3333%; text-align: center; vertical-align: middle;"><img class="fr-dib fr-draggable" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014693147/original/RIUChwr_SrADa4pRP-onSXpUMTOY3KeCtw.jpg?1492762238" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014693147/original/RIUChwr_SrADa4pRP-onSXpUMTOY3KeCtw.jpg?1492762238" data-fileid="14014693147" data-uniquekey="1492762171362" style="width: 75px; height: 75px;">

                <br>

            </td>

            <td style="width: 33.3333%; text-align: center; vertical-align: middle;"><img class="fr-dib fr-draggable" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014693149/original/mhHACzfuxKRPqCkqe0wHH5CAkTXxHXUNgA.jpg?1492762242" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014693149/original/mhHACzfuxKRPqCkqe0wHH5CAkTXxHXUNgA.jpg?1492762242" data-fileid="14014693149" data-uniquekey="1492762171362" style="width: 75px; height: 75px;">

                <br>

            </td>

        </tr>

        <tr>

            <td style="width: 33.3333%; text-align: center; vertical-align: middle;">OK

                <br>

            </td>

            <td style="width: 33.3333%; text-align: center; vertical-align: middle;">Warning!

                <br>

            </td>

            <td style="width: 33.3333%; text-align: center; vertical-align: middle;">Error! ATTENTION NEEDED

                <br>

            </td>

        </tr>

    </tbody>

</table>


<p>

    <br>

</p>


<p>

    <br>

</p>

<div style="page-break-inside: avoid">


    <h2>Displays overview</h2>


    <p>

        <br>

    </p>


    <p style="text-align: left;"><img class="fr-dib fr-draggable fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014690351/original/o7Lyi5pnVyA_9K8DISe1zDqyJ3akZYkTyA.JPG?1492758452" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014690351/original/o7Lyi5pnVyA_9K8DISe1zDqyJ3akZYkTyA.JPG?1492758452" data-fileid="14014690351" data-uniquekey="1492757622810" style="width: 266px; height: 306.766px;"></p>


    <p style="text-align: left;">

        <br>

    </p>


    <p><strong>Operation&nbsp;</strong><strong>status</strong> will give you an overview of all displays in the system. How many in use/not in use.</p>


    <p>

        <br>

    </p>


    <p><strong>Warnings&nbsp;</strong>status give you an overview of displays with low battery.</p>


    <p>

        <br>

    </p>


    <p><strong>Errors</strong> status gives you an overview of all the displays that are reporting errors.</p>


    <p>If a display fails to update, the system will try to update the display several times before it ends up in the list of displays that are reporting errors.</p>

</div>


<p>

    <br>

</p>

<div style="page-break-inside: avoid">


    <h2>Data Overview</h2>


    <p>

        <br>

    </p>


    <p><img class="fr-dib fr-draggable fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014690628/original/YsKCrscEgAu3KbayS7mvVJ1FP9Xk1Vbjdg.JPG?1492758808" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014690628/original/YsKCrscEgAu3KbayS7mvVJ1FP9Xk1Vbjdg.JPG?1492758808" data-fileid="14014690628" data-uniquekey="1492758727161" style="width: 263px; height: 288.869px;"></p>


    <p>

        <br>

    </p>


    <p><strong>Entries&nbsp;</strong>shows you an overview of products in use and not in use. You can click on them to get a list of products of either.</p>


    <p>

        <br>

    </p>


    <p><strong>Imports&nbsp;</strong>will show you an overview of product imports. You can click on them to see detailed information on the imports.</p>


    <p>

        <br>

    </p>


    <p><strong>Updates&nbsp;</strong>will show you an overview of each update on the products. Take note that the numbers reflect each time a product has been updated. If you click into the list it will not show each update, it will show each product that has been updated.</p>

</div>


<p>

    <br>

</p>


<p>

    <br>

</p>


<h1><img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014840525/original/jPvu4iGOcXQGY2QlTuRQWIx92bHdYnz7vw.jpg?1493126687" data-fileid="14014840525" style="width: 41px;" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014840525/original/jPvu4iGOcXQGY2QlTuRQWIx92bHdYnz7vw.jpg?1493126687" data-uniquekey="1493126543700">&nbsp;Communicators</h1>


<p>In the "Communicators" tab you will find a list of all communicator configured on your system. Administrators can manage the communicators.<img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776654/original/UFug57EPjRMvVGm3WImMS-MhhKCRn9uo7w.JPG?1493028888" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776654/original/UFug57EPjRMvVGm3WImMS-MhhKCRn9uo7w.JPG?1493028888" data-fileid="14014776654" data-uniquekey="1493026428605">to find the communicators you are looking for.</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<h2>Communicator Type</h2>


<p>The Dynamic Communicator(DC) is the control center in the installation. All communication between the server and the antennas goes thru this antenna. There can only be one DC on each installation. You can't delete a master DC.</p>


<p>

    <br>

</p>


<p>You will have Range Extenders in your installation when one DC can't cover the whole installation area.&nbsp;</p>


<p>

    <br>

</p>


<h2>Communicator Name</h2>


<p>Best practice is either a location name so you can easy find the antenna or the antenna serialnumber.&nbsp;</p>


<p>

    <br>

</p>


<h2>Channel</h2>


<p>It's important for Communicators close together to not share the same channel. If they do it can cause the communication between the antenna and display to be unstable.</p>


<p>

    <br>

</p>


<h2>Hostname</h2>


<p>Ip address of the antenna.</p>


<p>

    <br>

</p>


<h2>Operational mode</h2>


<p>Update and Configure mode. will enable the antenna to configure new displays and update displays in range. there can only be one antenna set to Update and Configure mode</p>


<p>Update mode will only enable the antenna to update the displays in range.</p>


<p>

    <br>

</p>


<h2>Operational Status</h2>


<p>With Operational status, you can see the antenna status. This could be interesting in daily use of the system. If you encounter problems with the system it's a good idea to make sure the system and the antennas are online.&nbsp;</p>


<p>

    <br>

</p>


<p><img class="fr-dib fr-draggable fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014697686/original/ooNmQZ-qJ44-ORDgSecUxyzLMuwAs0DFRg.JPG?1492767979" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014697686/original/ooNmQZ-qJ44-ORDgSecUxyzLMuwAs0DFRg.JPG?1492767979" data-fileid="14014697686" data-uniquekey="1492764087574"></p>


<h2>Communicator actions</h2>


<p>By right clicking or clicking the arrow on an antenna in the list, you will get a menu with all the actions you have available with one antenna.</p>


<p>

    <br>

</p>


<h3>Reboot</h3>


<p>Restarts the antenna.</p>


<p>

    <br>

</p>

<div style="width: 422px;height: 98px;border-radius: 25px;border: 1px rbg(0,147,226);box-sizing: border-box;text-align: center;paddin;padding: 21px;background-color: #00B5E4;"><span style="width: 20%;"><img class="fr-draggable fr-dii fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14015131228/original/LSosk9QiiGdeo-preGN3l8tv_GFmbrluxA.png?1493793090" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14015131228/original/LSosk9QiiGdeo-preGN3l8tv_GFmbrluxA.png?1493793090" data-fileid="14015131228" data-uniquekey="1493792820352" style="width: 51px; height: 51px;"></span>

    <div style="width: 80%;">


        <p style="text-align: left;">

            <br>

        </p>


        <p style="text-align: left;"><span style="color: rgb(251,255,147);">Take note that this can take some time.</span></p>

    </div>

</div>


<p>

    <br>

</p>


<p><span style="color: rgb(243, 121, 52);"></span></p>


<p>

    <br>

</p>


<h3>Clear Queues</h3>


<p>Clears all displays that are queued in the Dynamic Communicator.&nbsp;</p>


<p>

    <br>

</p>

<div style="width: 422px;height: 98px;border-radius: 25px;border: 1px rbg(0,147,226);box-sizing: border-box;text-align: center;paddin;padding: 21px;background-color: #00B5E4;"><span style="width: 20%;"><img class="fr-draggable fr-dii fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14015136028/original/c3fa0Kb98NfqmnXrUGO2FLf4rzMZdSU-zg.png?1493798843" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14015136028/original/c3fa0Kb98NfqmnXrUGO2FLf4rzMZdSU-zg.png?1493798843" data-fileid="14015136028" data-uniquekey="1493798686606" style="width: 51px; height: 51px;"></span>

    <div style="width: 80%;">


        <p style="text-align: left;">

            <br>

        </p>


        <p style="text-align: left;"><span style="color: rgb(209, 72, 65);">JOBS CLEARED CAN'T BE RECOVERED</span></p>

    </div>

</div>


<p>

    <br>

</p>


<h3>Request log</h3>


<p>Will get logs from the antenna.&nbsp;</p>


<p>

    <br>

</p>

<div style="width: 422px;height: 98px;border-radius: 25px;border: 1px rbg(0,147,226);box-sizing: border-box;text-align: center;paddin;padding: 21px;background-color: #00B5E4;"><span style="width: 20%;"><img class="fr-draggable fr-dii fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14015131228/original/LSosk9QiiGdeo-preGN3l8tv_GFmbrluxA.png?1493793090" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14015131228/original/LSosk9QiiGdeo-preGN3l8tv_GFmbrluxA.png?1493793090" data-fileid="14015131228" data-uniquekey="1493792820352" style="width: 51px; height: 51px;"></span>

    <div style="width: 80%;">


        <p style="text-align: left;">

            <br>

        </p>


        <p style="text-align: left;"><span style="color: rgb(251,255,147);">Take note that this can take some time.</span></p>

    </div>

</div>


<h3 style="text-align: left;">

    <br>

</h3>


<h3 style="text-align: left;">Logs</h3>


<p style="text-align: left;">See requested logs.</p>


<p style="text-align: left;">

    <br>

</p>


<h3 style="text-align: left;">Configure</h3>


<p style="text-align: left;">Configure Name, Hostname, Configuration type, Is enabled, Channel.</p>


<p style="text-align: left;">

    <br>

</p>


<h3 style="text-align: left;">New antenna</h3>


<p style="text-align: left;">Adds a new antenna to the system.</p>


<p style="text-align: left;">

    <br>

</p>


<h3 style="text-align: left;">Backup</h3>


<p style="text-align: left;">Requests a backup from the selected antenna.</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<h1><img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014840656/original/JNbYCiJqAKuOdQkxUd395WtLo2G7mUCA8w.jpg?1493126836" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014840656/original/JNbYCiJqAKuOdQkxUd395WtLo2G7mUCA8w.jpg?1493126836" data-fileid="14014840656" data-uniquekey="1493126543700" style="width: 41px;">&nbsp;Displays</h1>


<p>In the Displays tab, you can manage all your displays. Use the filters<img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776654/original/UFug57EPjRMvVGm3WImMS-MhhKCRn9uo7w.JPG?1493028888" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776654/original/UFug57EPjRMvVGm3WImMS-MhhKCRn9uo7w.JPG?1493028888" data-fileid="14014776654" data-uniquekey="1493026428605">to find the displays you are looking for.</p>


<p>

    <br>

</p>


<h2>Display actions</h2>


<p>Display actions allow add, delete, assign displays and more.&nbsp;</p>


<p>

    <br>

</p>


<p><img class="fr-dib fr-draggable fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776685/original/0FFhoCgR5aEfmmTvCTy_rlBTKJ1XUZW6xQ.JPG?1493028925" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776685/original/0FFhoCgR5aEfmmTvCTy_rlBTKJ1XUZW6xQ.JPG?1493028925" data-fileid="14014776685" data-uniquekey="1493026428605"></p>


<p>

    <br>

</p>


<p>Single display actions</p>


<p>By right clicking or clicking the arrow on a display in the list, you will get a menu with all the actions you have available with one display.</p>


<p>&nbsp;</p>


<p><strong>Assignment&nbsp;</strong>will<strong>&nbsp;</strong>assign a display to a product.</p>


<p>When clicking assignment a new window will open. Here you can type or scan the product number. Select the desired layout and press "Add". The product will now be assigned to the display.&nbsp;</p>


<p>

    <br>

</p>


<p><strong>Release&nbsp;</strong>will release a product from a display. If no problems arise this message will show.</p>


<p>

    <br>

</p>


<p><img class="fr-dib fr-draggable fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014702702/original/fiu6-mrr6w-8Lxhm1EvmhZMAFlmXFVSIaA.JPG?1492774645" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014702702/original/fiu6-mrr6w-8Lxhm1EvmhZMAFlmXFVSIaA.JPG?1492774645" data-fileid="14014702702" data-uniquekey="1492774355558"></p>


<p>

    <br>

</p>


<p><strong>Assign History</strong> will give you a list of all assignments of the given display.</p>


<p>

    <br>

</p>


<p><strong>Queue History</strong> will give you a list of all actions that have been done to a display.&nbsp;</p>


<p>

    <br>

</p>


<h3>Multiple display actions</h3>


<p>When one or more displays are selected by checkbox, you can access actions you can do on multiple displays by right clicking or on a display in the list.</p>


<p>

    <br>

</p>


<p><img class="fr-dib fr-draggable fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776713/original/Em0nBnMIbxSiXLvEXYX-ySsUjz2megngxA.JPG?1493028942" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776713/original/Em0nBnMIbxSiXLvEXYX-ySsUjz2megngxA.JPG?1493028942" data-fileid="14014776713" data-uniquekey="1493026428605"></p>


<p>

    <br>

</p>


<p><strong>Multi release&nbsp;</strong>will release products from displays. If no problems arise this message will show.</p>


<p>

    <br>

</p>


<p><img class="fr-dib fr-draggable fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014702702/original/fiu6-mrr6w-8Lxhm1EvmhZMAFlmXFVSIaA.JPG?1492774645" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014702702/original/fiu6-mrr6w-8Lxhm1EvmhZMAFlmXFVSIaA.JPG?1492774645" data-fileid="14014702702" data-uniquekey="1492774355558"></p>


<p>

    <br>

</p>


<p><strong>Reconfigure displays</strong> will reconfigure display. For more information see three"Most common display faults and solutions".</p>


<p>

    <br>

</p>


<p><img class="fr-dib fr-draggable fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014705772/original/f8W-pRoPzBsbTsxcchdKkTw0VbQ6obOyJQ.JPG?1492778687" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014705772/original/f8W-pRoPzBsbTsxcchdKkTw0VbQ6obOyJQ.JPG?1492778687" data-fileid="14014705772" data-uniquekey="1492774355558"></p>


<p>

    <br>

</p>


<p><strong>Force Update&nbsp;</strong>will force an update of the display. For more information see the "Most common display faults and solutions".</p>


<p>

    <br>

</p>


<p><strong>Ping</strong> will test the connection to the display.</p>


<p>

    <br>

</p>


<p><strong>Pagechange</strong> will change the page on the display. Each display has thee page slots available.&nbsp;</p>


<p>&nbsp;</p>


<p><strong>Delete Displays</strong> will remove the display from the system. &nbsp;For more information see the "Most common display faults and solutions".</p>


<p>

    <br>

</p>


<h3>Bottom action bar</h3>


<p>

    <br>

</p>


<p><strong>Add Display</strong> will enable you to easy and effectively add multiple displays to the system. Scan or type display serial number and press "Add". Repeat until you are done.&nbsp;</p>


<p>

    <br>

</p>


<p><strong>Assignment</strong> will enable you to continuously assign displays. Scan or type the display serial number and product number, select layout and press add. Repeat until you are done.&nbsp;</p>


<p>

    <br>

</p>


<p><strong>Broadcast</strong><strong>&nbsp;</strong><strong>pagechange</strong> will change the page of all displays in the system. Select a page and click "Broadcast".</p>


<p>

    <br>

</p>

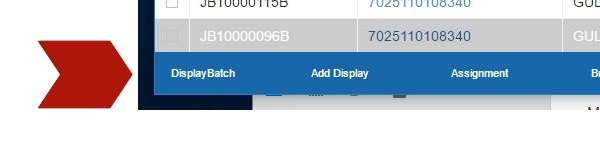

<p><strong>DisplayBatch</strong> makes it easy to make actions on multiple displays.</p>


<p>

    <br>

</p>

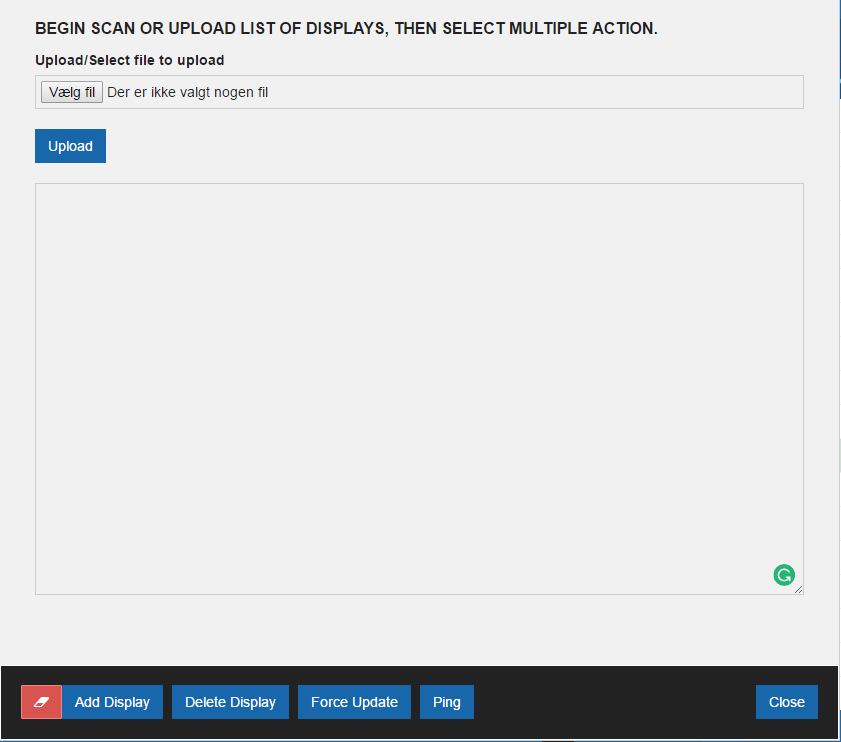

<p>Upload a file with serialnumbers arranged like this and click " Upload"</p>


<p>

    <br>

</p>


<p><strong><span style="color: rgb(184, 49, 47);">&lt;serialnumber1&gt;</span></strong></p>


<p><span style="color: rgb(184, 49, 47);"><strong>&lt;serialnumber3&gt;</strong></span></p>


<p><strong><span style="color: rgb(184, 49, 47);">&lt;serialnumber3&gt;</span></strong></p>


<p>...</p>


<p>

    <br>

</p>


<p>Or select the field under the and scan or type the serial numbers.</p>


<p><img class="fr-dib fr-draggable fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14017151940/original/byps_meqUk20KUOJixnQcOycsWNFcQ4XQw?1498031956" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14017151940/original/byps_meqUk20KUOJixnQcOycsWNFcQ4XQw?1498031956" data-fileid="14017151940" data-uniquekey="1498031833601" style="width: 481px; height: 424.378px;"></p>


<p>

    <br>

</p>


<p>When you have all the displays select the action you want to perform.</p>


<p>

    <br>

</p>


<h2>Detailed Information</h2>


<p>

    <br>

</p>


<p><em>Current Page:</em></p>


<p>Show the active page.</p>


<p>

    <br>

</p>


<p><em><span lang="EN-US">Battery status:</span></em></p>


<p><span lang="EN-US">Shows the current battery status off the display.</span></p>


<p><span lang="EN-US"><br></span></p>


<p><em><span lang="EN-US">Temperature:</span></em></p>


<p><span lang="EN-US">Shows the current temperature of the display.</span></p>


<p>

    <br>

</p>


<p><em>Layout:</em></p>


<p>Click the link to see what is shown on the display. <img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014936797/original/E7DmGveRynlFH5BzTuXgC-GBkaSdlO1Pzg.JPG?1493291664" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014936797/original/E7DmGveRynlFH5BzTuXgC-GBkaSdlO1Pzg.JPG?1493291664" data-fileid="14014936797" data-uniquekey="1493290998185" style="width: 27px; height: 23.1429px;"></p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<h2 dir="ltr">Common Status messages</h2>


<h3><em><span lang="EN-US">Failed radio coverage check</span></em></h3>


<p><span lang="EN-US">The display is out of range of the antennas or is unable to get in contact with the antenna.</span></p>


<p><span lang="EN-US">Solution: Make sure the display is in range off an antenna, Force update the display.</span></p>


<p><strong><em>&nbsp;</em></strong></p>


<p><span lang="EN-US"><em>Failed to network configure display</em></span></p>


<p><span lang="EN-US">When the display is added to the system the system will network configure the display. If this network configure fails the display will recive the message.</span></p>


<p><span lang="EN-US">Solution: Place the display near the main antenna and Reconfigure the display.</span></p>


<p><span lang="EN-US">&nbsp;</span></p>


<p><em><span lang="EN-US">Product does not exist</span></em></p>


<p><span lang="EN-US">If the product attached to the display does not exist in the Breece database.&nbsp;</span></p>


<p><span lang="EN-US">Solution: Make sure the product is loaded into Breece. You can check this in the products tab.</span></p>


<p><span lang="EN-US">&nbsp;</span></p>


<p><em><span lang="EN-US">Low battery</span></em></p>


<p><span lang="EN-US">When the display is about to run out of battery.</span></p>


<p>

    <br>

</p>


<p>Solution:</p>


<p>The displays will show one of these icons.</p>


<table class="fr-no-borders" style="width: 100%;">

    <tbody>

        <tr>

            <td style="width: 9.4783%; vertical-align: top;"><img class="fr-dib fr-draggable" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014836526/original/pgRB-wixfvmE1OdIERy1wF2a2F3KdYzRYg.jpg?1493122345" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014836526/original/pgRB-wixfvmE1OdIERy1wF2a2F3KdYzRYg.jpg?1493122345" data-fileid="14014836526" data-uniquekey="1493122264195">

                <br>

            </td>

            <td style="width: 90.4151%;">


                <p dir="ltr">Displayed when the display has low battery. Change the battery.</p>


                <p dir="ltr">

                    <br>

                </p>

            </td>

        </tr>

    </tbody>

</table>


<p>

    <br>

</p>


<table class="fr-no-borders">

    <tbody>

        <tr>

            <td style="width: 9.2651%; vertical-align: top;"><img class="fr-dib fr-draggable" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014836516/original/otWJasRuy8zjypboWyrM6452AbP9AlUHkQ.jpg?1493122327" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014836516/original/otWJasRuy8zjypboWyrM6452AbP9AlUHkQ.jpg?1493122327" data-fileid="14014836516" data-uniquekey="1493122264195">

                <br>

            </td>

            <td style="width: 90.6283%;">


                <p dir="ltr">Displayed when the display is mounted in a cool area below the recommended limit. Move the display to a new location where the temperature is in the recommended range. Wait for the display to warm up and try force updating the display.</p>

            </td>

        </tr>

    </tbody>

</table>


<h4>

    <br>

</h4>


<h1><img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939438/original/OuzwBJ74GWejAJaumb502LMKQ9lYIM2KEQ.jpg?1493295369" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939438/original/OuzwBJ74GWejAJaumb502LMKQ9lYIM2KEQ.jpg?1493295369" data-fileid="14014939438" data-uniquekey="1493295348677" style="width: 41px;">Vision</h1>


<p>In the Vision tab, you can manage all your Visions. Use the filters<img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776654/original/UFug57EPjRMvVGm3WImMS-MhhKCRn9uo7w.JPG?1493028888" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776654/original/UFug57EPjRMvVGm3WImMS-MhhKCRn9uo7w.JPG?1493028888" data-fileid="14014776654" data-uniquekey="1493026428605">to find the Vision you are looking for.</p>


<p>

    <br>

</p>


<h2>Vision actions</h2>


<p>Vision actions allow you to add, assign Visions and more.&nbsp;</p>


<p>

    <br>

</p>


<h3>Vision right click actions</h3>


<p><strong>Assignment</strong></p>


<p>

    <br>

</p>


<p><img class="fr-dib fr-draggable fr-bordered" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014938555/original/Dvo5TnMAfOKNBu6j3eHhuIQX6NB1NUAxTA.JPG?1493294271" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014938555/original/Dvo5TnMAfOKNBu6j3eHhuIQX6NB1NUAxTA.JPG?1493294271" data-fileid="14014938555" data-uniquekey="1493294199111" style="width: 479px; height: 272.482px;"></p>


<p>

    <br>

</p>


<p>Click a product field and type or scan the product to assign the product. &nbsp;</p>


<p>

    <br>

</p>


<p><em>Bottom action bar</em></p>


<p><strong>Split screen&nbsp;</strong>to enable split screen. You can see in the edit window that a new column has appeared.</p>


<p><strong>Full screen</strong> to enable full screen. Now there is only a single column in the edit window.</p>


<p><strong>Release&nbsp;</strong>will release all products from the Vision.</p>


<p><strong>Preview&nbsp;</strong>opens a new window. Wait for the preview to load.</p>


<p><strong>Commit</strong> to save the assignment <span style="color: rgb(243, 121, 52);">IMPORTANT !!!</span></p>


<p>

    <br>

</p>


<p><strong>Configure&nbsp;</strong></p>


<p>Location - Set the location of the device to better identify it.</p>


<p>Slideshow interval - Set the time in seconds where the slide show will change.</p>


<p>Multi product order type - Set how the products are ordered.</p>


<p>Enable overscan - Here you can fit output to the screen.</p>


<p>

    <br>

</p>


<p><strong>Migration&nbsp;</strong>is used to migrate a vision to another installation.</p>


<p>

    <br>

</p>


<p><strong>Assign History</strong> will get you a list of the assign history</p>


<p>

    <br>

</p>


<p><strong>Queue History</strong> will get you a list of the queue history</p>


<p>

    <br>

</p>


<h3>Vision multi actions</h3>


<p><strong>Force Update</strong> forces the vision to update creating new images and loads the images into the device.</p>


<p>

    <br>

</p>


<p><strong>Delete Vision&nbsp;</strong>removes the vision from the installation.</p>


<p>

    <br>

</p>


<h3>Bottom action bar</h3>


<p><strong>Add Vision</strong> adds a new Vision to the installation.&nbsp;</p>


<p>

    <br>

</p>


<h2>Detailed Information</h2>


<p>

    <br>

</p>


<p><em>Is spilt?:&nbsp;</em></p>


<p>Tells if the screen is running split screen.</p>


<p>

    <br>

</p>


<p><em>Latest</em><em>&nbsp;communication info:&nbsp;</em></p>


<p>Multiple fields. These will hold information about the latest information like if the vision is in queue and Last Successfully Communication.</p>


<p>

    <br>

</p>


<p><em>IP address:</em></p>


<p>The device IP address.</p>


<p>

    <br>

</p>


<p><em>Slideshow interval:</em></p>


<p>Shows the time in seconds when that pages in the slide show will change.</p>


<p>

    <br>

</p>


<p><em>Preview:</em></p>


<p>Click to see a preview off the vision. <img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014936797/original/E7DmGveRynlFH5BzTuXgC-GBkaSdlO1Pzg.JPG?1493291664" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014936797/original/E7DmGveRynlFH5BzTuXgC-GBkaSdlO1Pzg.JPG?1493291664" data-fileid="14014936797" data-uniquekey="1493290998185" style="width: 27px; height: 23.1429px;"></p>


<p>

    <br>

</p>


<h1><img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939502/original/N_IbiXvVURmtXiAwwM8uoNg5xA3ZuKSnLQ.jpg?1493295443" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939502/original/N_IbiXvVURmtXiAwwM8uoNg5xA3ZuKSnLQ.jpg?1493295443" data-fileid="14014939502" data-uniquekey="1493295348677" style="width: 41px;">Products</h1>


<p>In the Product tab, you can get information on products. Use the filters<img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776654/original/UFug57EPjRMvVGm3WImMS-MhhKCRn9uo7w.JPG?1493028888" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014776654/original/UFug57EPjRMvVGm3WImMS-MhhKCRn9uo7w.JPG?1493028888" data-fileid="14014776654" data-uniquekey="1493026428605">&nbsp;to find the products you are looking for.</p>


<p>

    <br>

</p>


<p><em>Product Number:</em></p>


<p>The product number.</p>


<p>

    <br>

</p>


<p><em>Is Assigned:</em></p>


<p>Tells if the product is assigned to a displays or vision.</p>


<p>

    <br>

</p>


<p><em>Product description:</em>

    <br>The product description is selected from the product import.</p>


<p>

    <br>

</p>


<p><em>Last product update:</em>

    <br>Timestamp of the last update on the display.

    <br>

    <br><em class="">Design pages</em><em>:</em>

    <br>Each display can hold up two Designs. The design is selected from the product import.</p>


<p>

    <br>

</p>


<p><em>Reorder</em><em>&nbsp;Code:&nbsp;</em></p>


<p>The product reorder code.</p>


<p>

    <br>

</p>


<h2>Buttom actionbar</h2>


<p><strong>Import products</strong> will open a dialog. Find your product import file and press "import product(s)"</p>


<p>

    <br>

</p>


<p><strong>Import history</strong> opens a new window with a list of the product import history.</p>


<p>

    <br>

</p>


<p><strong>Export Filtered List</strong> will export a list of products with a status on each product.</p>


<p>

    <br>

</p>


<h2>Detailed information</h2>


<p>

    <br>

</p>


<p><em>Variable Details:</em></p>


<p>Shows a list of all the fields in a product.</p>


<p>

    <br>

</p>


<h1><img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939516/original/cOjiozSWiA1iZTeSY7Mx5oxmQvD6d4_RhQ.jpg?1493295480" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939516/original/cOjiozSWiA1iZTeSY7Mx5oxmQvD6d4_RhQ.jpg?1493295480" data-fileid="14014939516" data-uniquekey="1493295348677" style="width: 41px;">Jobs</h1>


<p>In the jobs tab, you can follow the system handle the actions you or the system performs on the installation.&nbsp;</p>


<p>

    <br>

</p>


<h2>Display/Vision</h2>


<p>The display and vision job queues are separated. Select the views in the top of the page.</p>


<p>

    <br>

</p>


<h2>Job Status/Job type</h2>


<p><span lang="EN-US">We have 2 status categories. <strong>Job status</strong> that shows where in the process a specific display is. <strong>Job type</strong> that shows a number of different jobs in queues.&nbsp;</span></p>


<p>

    <br>

</p>


<p>You can click on the different status or types to get a list of items being handled.&nbsp;</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<h1><img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939553/original/AH1M34dulVMng-lwNT1JSsRIgXG5vjVOvQ.jpg?1493295555" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939553/original/AH1M34dulVMng-lwNT1JSsRIgXG5vjVOvQ.jpg?1493295555" data-fileid="14014939553" data-uniquekey="1493295348677" style="width: 41px;">Designs</h1>


<p>Here you can see and manage designs loaded into the system</p>


<p>

    <br>

</p>


<h2>Desing actions</h2>


<p>By right clicking or clicking the arrow on a layout in the list, you will get a menu with all the actions you have available with one layout.</p>


<p>

    <br>

</p>


<h3>Download design</h3>


<p>Downloads the design to your local drive.</p>


<p>

    <br>

</p>


<h3>Delete</h3>


<p>Deletes the layout.</p>


<p>

    <br>

</p>


<h2>Bottom action bar</h2>


<h3>Upload Design</h3>


<p>Uploads a design to the installation.</p>


<p>

    <br>

</p>


<h1><img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939655/original/FjWv8Gm327ArESZ--aR1EmqLcHTF1oP5dA.jpg?1493295636" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939655/original/FjWv8Gm327ArESZ--aR1EmqLcHTF1oP5dA.jpg?1493295636" data-fileid="14014939655" data-uniquekey="1493295348677" style="width: 41px;">Dynamic Images</h1>


<p>Here you can see and manage dynamic images loaded into the system.</p>


<p>

    <br>

</p>


<h2>Detailed information</h2>


<p>Here you can see a preview of the selected image.</p>


<p>

    <br>

</p>


<h2>Bottom action bar</h2>


<h3>Upload image(s)</h3>


<p>Uploads one or more images to the system.</p>


<p>

    <br>

</p>


<h3>Show images</h3>


<p>Will show a preview if each image.&nbsp;</p>


<p>

    <br>

</p>


<h3>Delete</h3>


<p>Deletes selected image(s).</p>


<p>

    <br>

</p>


<h1><img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939709/original/24fxibkWAfof9VR-bFmwOnWKHx6sh0hKdA.jpg?1493295694" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939709/original/24fxibkWAfof9VR-bFmwOnWKHx6sh0hKdA.jpg?1493295694" data-fileid="14014939709" data-uniquekey="1493295348677" style="width: 41px;">Mobile</h1>


<p>Here you can see your mobile devices configured to the system.</p>


<p>

    <br>

</p>


<h2>Bottom Action bar</h2>


<h3>Add device</h3>


<p>Adds a new device to the system. insert serialnumber and click "Save".</p>


<p>

    <br>

</p>

<div style="width: 422px;height: 98px;border-radius: 25px;border: 1px rbg(0,147,226);box-sizing: border-box;text-align: center;paddin;padding: 21px;background-color: #00B5E4;"><span style="width: 20%;"><img class="fr-draggable fr-dii fr-fil" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14015131228/original/LSosk9QiiGdeo-preGN3l8tv_GFmbrluxA.png?1493793090" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14015131228/original/LSosk9QiiGdeo-preGN3l8tv_GFmbrluxA.png?1493793090" data-fileid="14015131228" data-uniquekey="1493792820352" style="width: 51px; height: 51px;"></span>

    <div style="width: 80%;">


        <p style="text-align: left;">

            <br>

        </p>


        <p style="text-align: left;"><span style="color: rgb(251,255,147);">This tab only holds information on Windows CE devices</span></p>

    </div>

</div>


<p>

    <br>

</p>


<h1><img class="fr-draggable fr-dii" src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939726/original/07MKS1mXLOjZvWZ_XI7LEaHATPiMWT2qaw.jpg?1493295728" data-filelink="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/14014939726/original/07MKS1mXLOjZvWZ_XI7LEaHATPiMWT2qaw.jpg?1493295728" data-fileid="14014939726" data-uniquekey="1493295348677" style="width: 41px;">Configuration</h1>


<p>In the configuration tab, you can configure the installation.</p>


<p>

    <br>

</p>


<p><em>Product Imports:</em></p>


<p>Here you can setup the product import.</p>


<p>&nbsp;</p>


<p><em>Templates:</em></p>


<p>Here you can manage your system templates.</p>


<p>&nbsp;</p>


<p><em>Product lookup:</em></p>


<p>Here you can setup how the product lookup should react.&nbsp;</p>


<p>

    <br>

</p>


<p><em>Definitions:</em></p>


<p>If you have some special defenitions your layout needs access to this is the place to look.</p>


<p>

    <br>

</p>


<p><em>Scheduler:</em></p>


<p>Schedule for example page broadcasts or Force updates.&nbsp;</p>


<p>

    <br>

</p>


<p><em>Plugins:</em></p>


<p>See and manage you plugins.</p>


<p>

    <br>

</p>


<p><em>Users:</em></p>


<p>Manage your users.</p>


<p>

    <br>

</p>


<p><em>System Configuration:</em></p>


<p>Here you can set installation information like system logo, language and installation name.</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<p>

    <br>

</p>


<p>

    <br>

</p>
