Vision 4K list
Configuration
Wifi profiles
Design packages
Weekly schedules


For System Admins:

When a Vision 4K gets turned on for the first time and is connected to the internet - the box will report to Cloud.

Unregistered list:

The box has been online but is not yet moved to an Installation.

From the “Unregistered list”

It it is possible to move the V4K to an installation or move to external system by right-clicking on the V4K.


Externally managed:

If the V4K has been moved to another system like DEMO or an Enterprise installation


For installation admins and installation readers.

  • Click  V4K icon

Check the features as shown in the picture below:


A. Vision4K list:


How to create device :

  • Click on the Vision 4K list

Opens a window as shown below.


  • Click on  'Create device'

Opens a window as shown below.

  • Fill in the fields
  • Select 'Master'
  • Click  'Save'


Device has been created successfully as shown below.

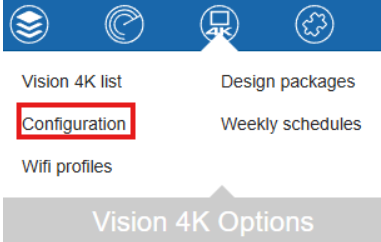

B. Configuration:

  • Click on 'Configuration'

Opens a window as shown below

Select Default paths to set up default settings.

  • Fill in the paths
  • Click 'Save'




Select Default Network Configuration to set up default settings

All the fields are pre-filled

  • Click 'Save'

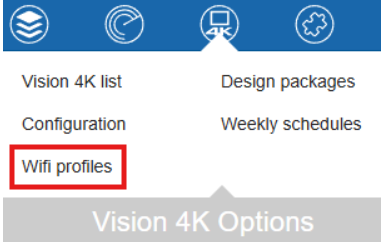

WIFI-profiles:

The Wifi default settings are set up on the installation.

 or can be selected in the configuration of the single V4K.


How to create Wifi profile on the installation:

  •  Click on 'WIFI-profiles'

 Opens  a new window


  • Fill the fields
  • Click 'Save'.

Check /Vision 4K WIFI profiles.

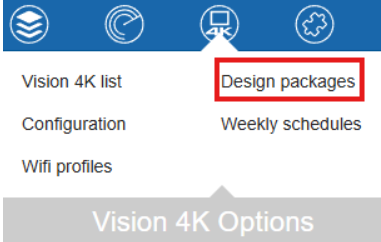

Design Packages:

Upload different designs on V4K (xml/csv files).

Please refer this guide :Guide to webdesigner for Vision4k : Support Portal


Weekly Schedules:


  • Click on 'WIFI-profiles'

 Opens  a new window


  • Click '+'

It opens a new window

  • Fill the fields
  • Click 'Save'

After adding 'New Weekly schedules'

  • Click on the 'schedule'
  • Select the time and date

 Saves automatically.
