This guide helps the reader get knowledge about displays and gives more insight of the roles -

  • User / Super user / Admin)

their access to the different functionalities in the Breece Cloud.


Displays

User, super user, and Admin has the same access to this functionality.

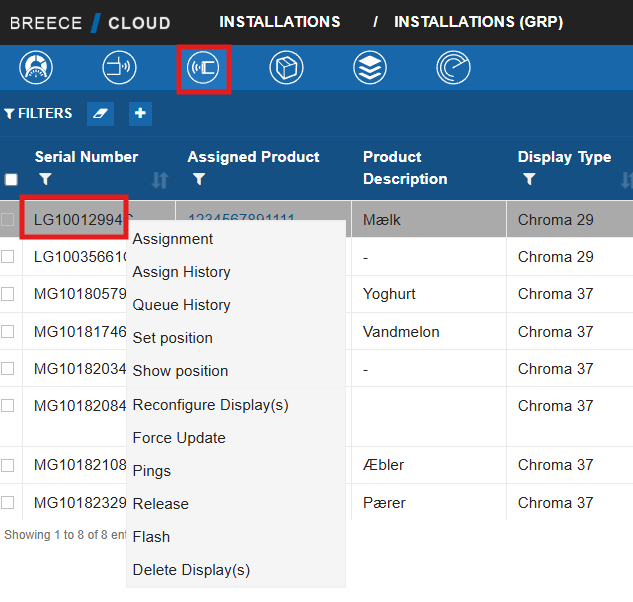

  • Click on the display icon,

open the list of displays in the installation.

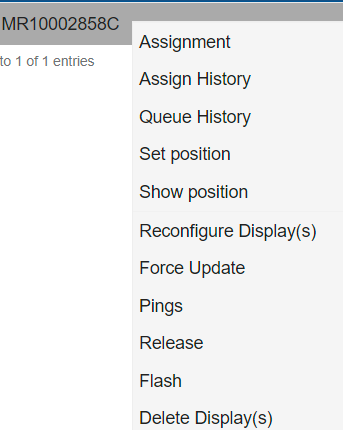

  • Right click on the 'Serial number',

here shows the different options, like shown in the screenshot below.


A. Assignment: This function helps to assign/add a product to the display


  • Click on the Assignment,

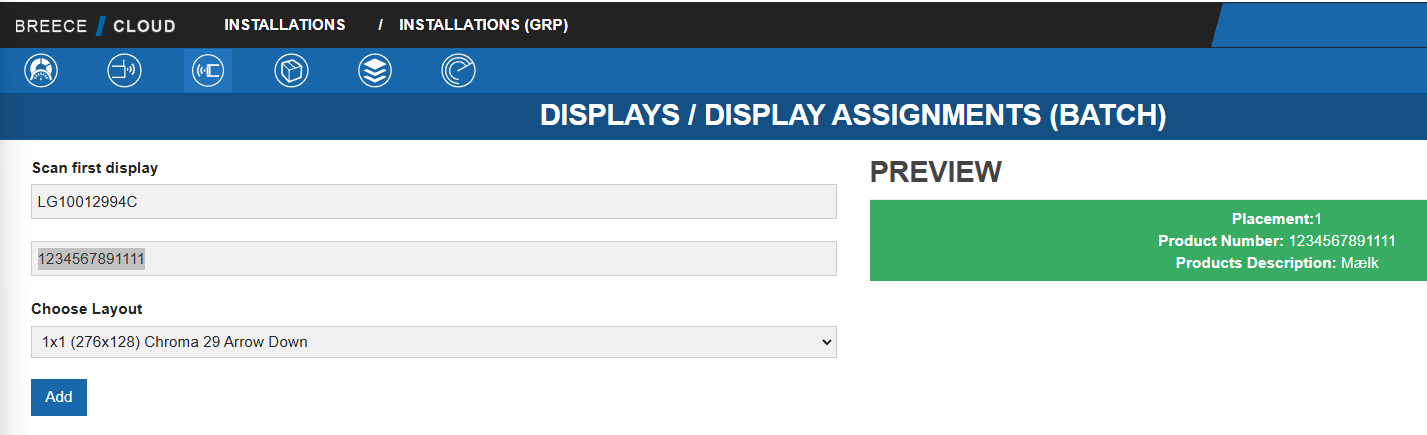

which opens a new page with 'Displays/Display Assignments (Batch).


Here, you can assign a product to the display.

  •  Click on Choose Layout
  • Select a layout  in the dropdown list

This is activated in the Definitions,  this can be found in the configuration tab (the wrench)


  • Click 'Add' once the product number and Layout are selected.


Preview: Check the preview (in green), which shows Product Number and Product Description.


B. Assign history: This function show the history of what and when the different products are assigned to the particular display

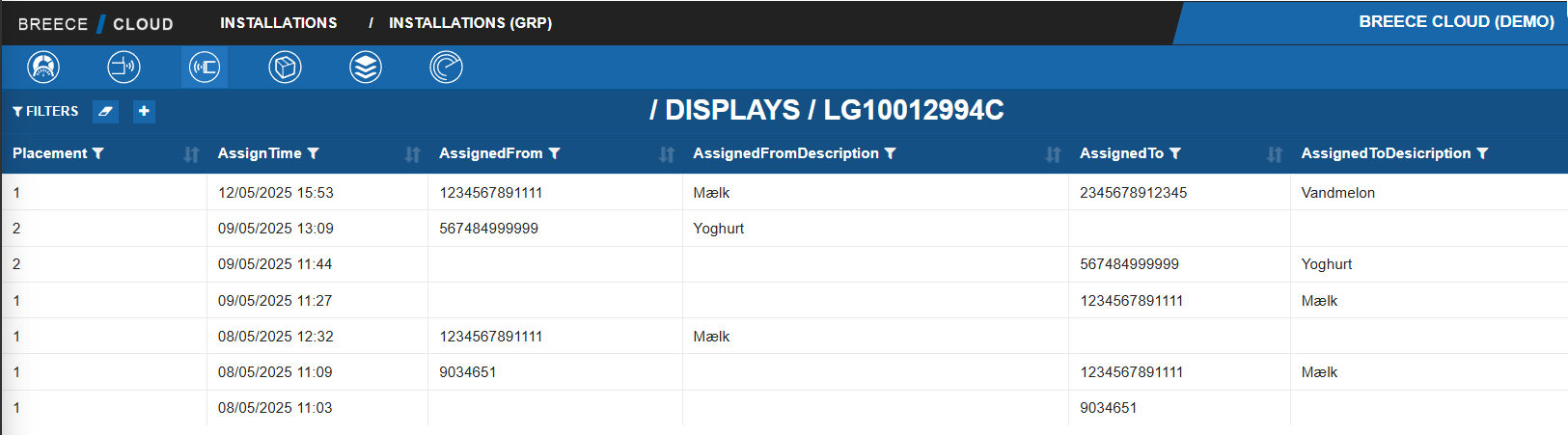

  • Click on Assign History,

which opens a new page with the history of the particular display where you can see the following information:


Placement: This number describes the position of the products assigned to the display. This is used when a display can have multiple products assigned.

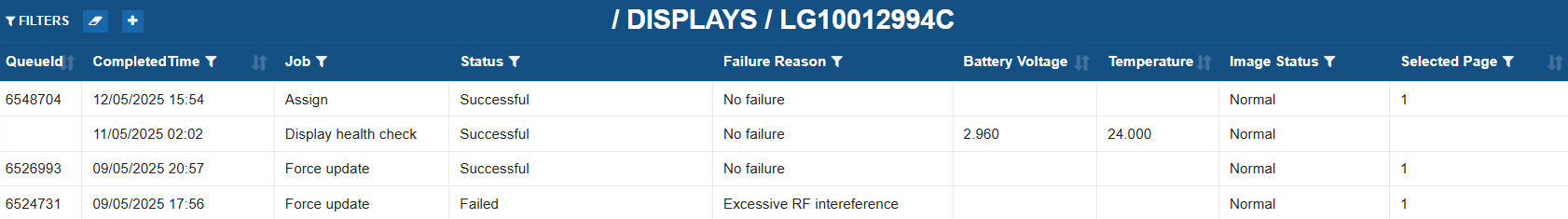

C. Queue History: This function helps to view the history of the different jobs attempted on the particular display


Click on Queue  History, opens a new page with all the history of that particular display where you can see the following information.




D. Set Position : This function helps to set the position (Floor/Rack/Room) of a display.

There may occur 2 scenarios here:

1. If there exists a plan already and it is connected to an Installation , then plan will be shown and you can set a position of the display where exactly you wanted it to be.
For more info please refer : Guide for Positions

2. If there is no plan existing on the installation, the following steps must be followed.

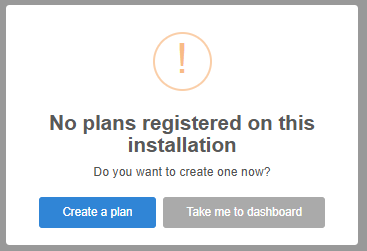

 Click on the Function, opens a small box shown below


Click on 'Create a plan', a new page opens with '/Floor plan ' with a bottom tool bar with 'New plan'

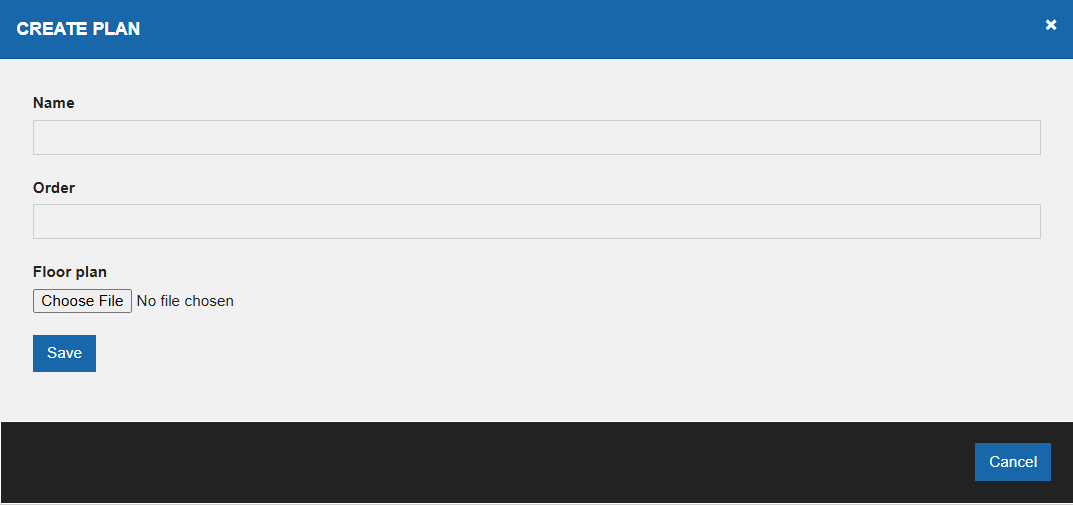

Click on 'New plan', a new window opens shown below. Fill in the fields and choose the floor plan which is already made and saved and click 'save'

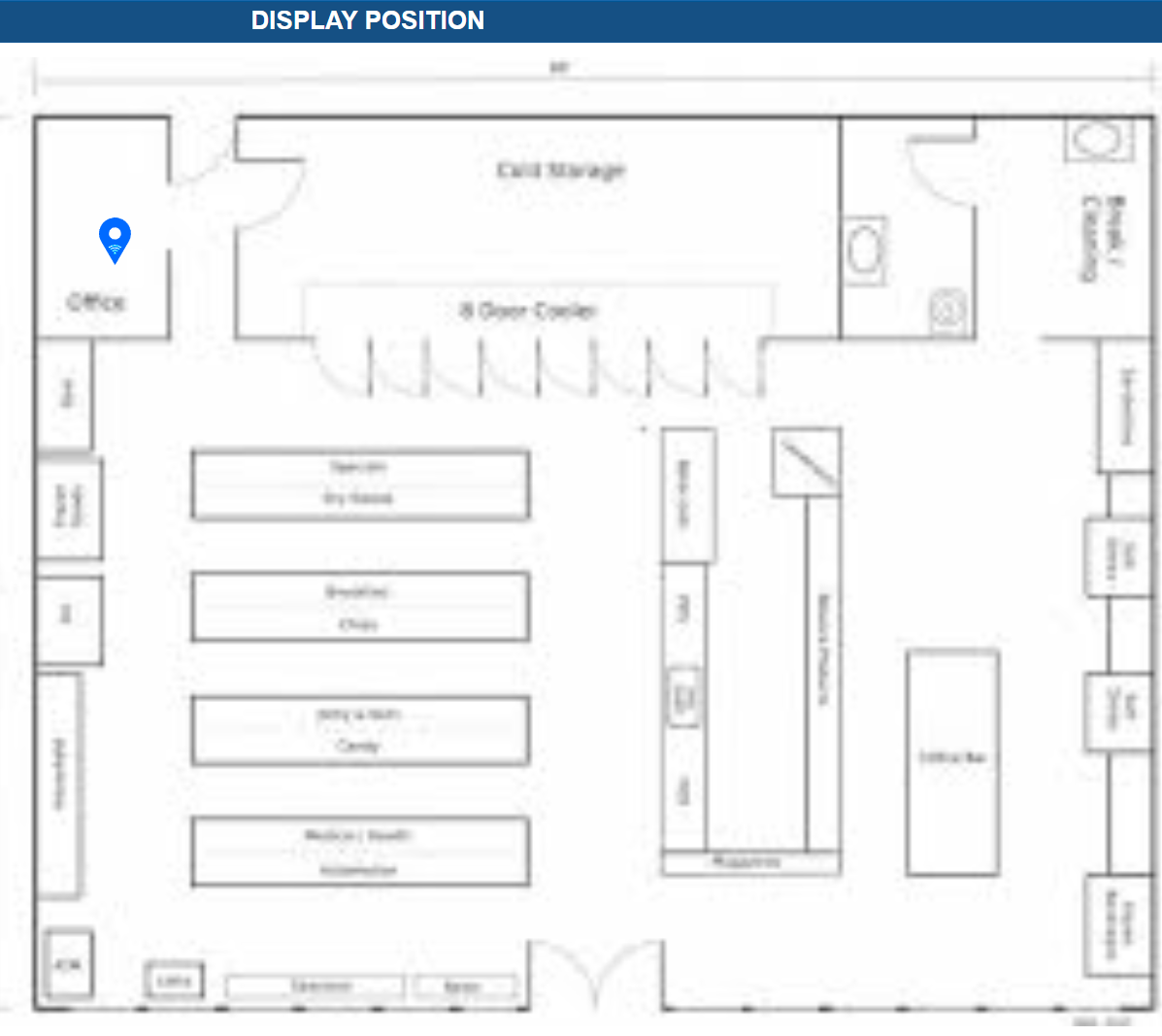

E. Show Position : This function helps to show the exact position (Racks/shelves/on the tables) of a display.

Click on the Function, and it shows position exactly where you have set the position of the display(s).



F. Reconfigure Display(s): This function helps to reconfigure the display.

Please note that this will delete the displays from system and attempt to add it again. This with caution.

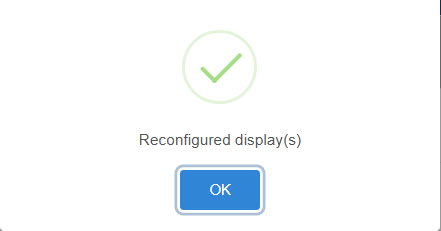

Click on the Function , you will get a new message that display is reconfigured with success.


G. Force Update : This function will send the same data/image to the displays, as is already assigned.

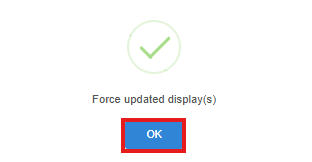

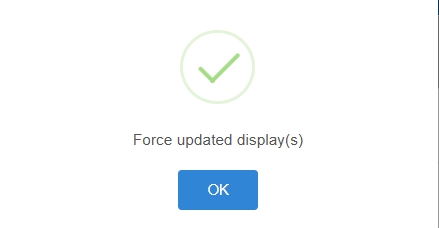

Click on the Function, you will get a new message that display will be updated and, moreover you can see the display blinks while its been updates.

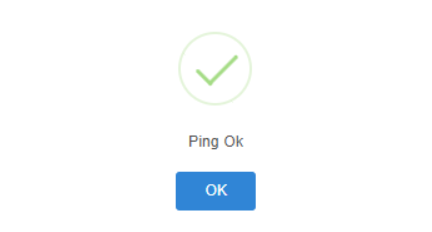

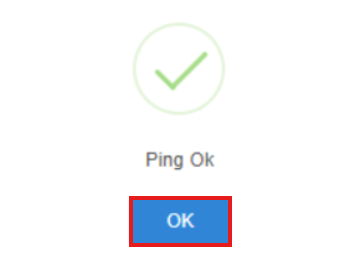

H.  Pings:  Click on the Function , you will get a new message shown below. The ping attempts to get the temperature and battery status from the display.



I. Release :  This function unassigns the product(s) from a display.

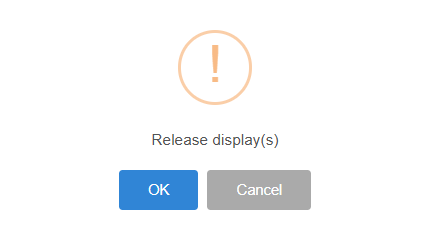

Click on the Function, you will get a new message shown below. Click 'OK', the product assigned to the display will be removed. The screenshots below gives you an overview how the display looks on the system before and after release process. Notice the Assigned Product field.


Before Release /Unassign: Assigned product and its description can be seen.



 After Release / Unassign: Assigned product and its description is deleted after release.


J. Flash :  This will tell the display to flash.

Particularly helps the user to locate the display if there are for example 500 products in a shelf/room/floor.

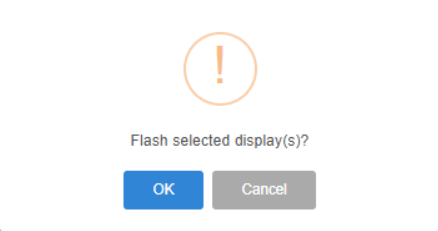

Click on the Function , you will get a new message shown below.

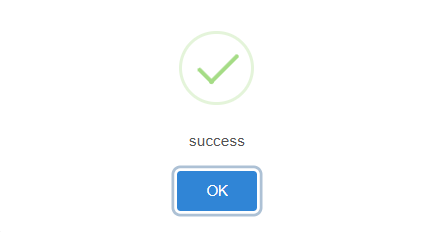

Click 'OK' , opens a small info box with success , the display starts flashing.


K. Delete Display(s): This delete the displays and makes the display inactive /off.

Please note that displays needs to be added (configured) to the system again, before they can be used again.

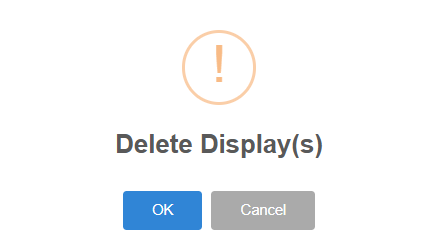

Click on the Function, you will get a new message shown below.



Click 'OK', opens a small info box with success, the display starts flashing, will be no no longer active and not in use.



Bottom action bar:


1. DisplayBatch

This function makes it easy to make actions on multiple displays.

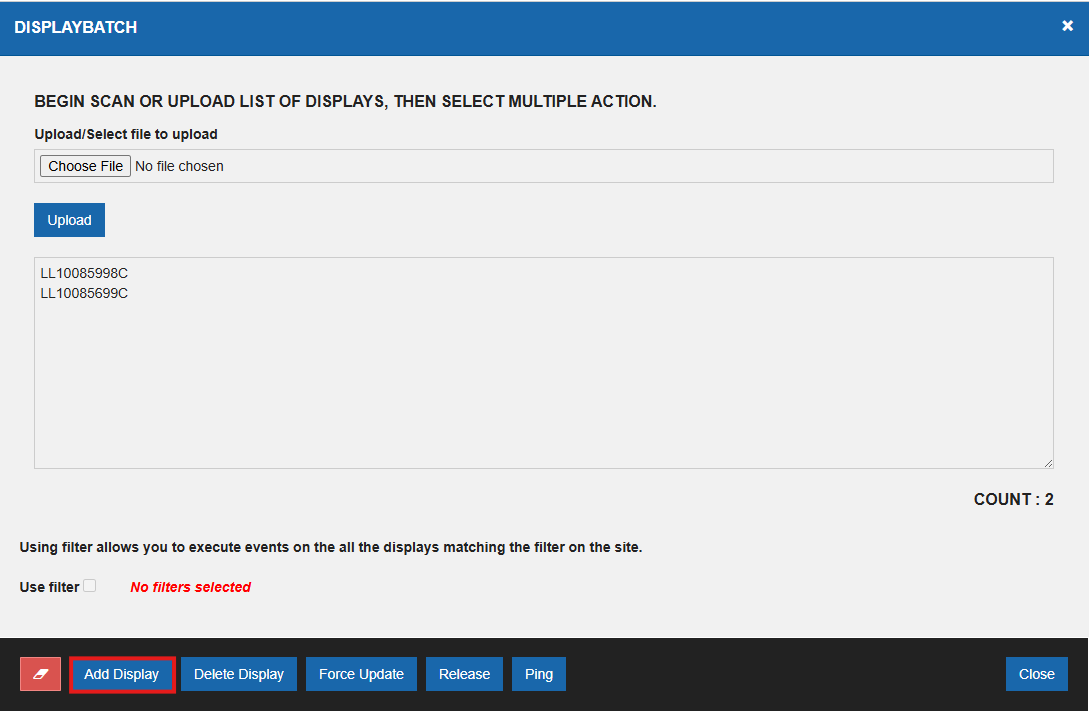

How to add displays by 'DisplayBatch' function:



a. You can upload a file with serialnumbers arranged like this and click " Upload". This will input the data from the file into the displaylist window.

<serialnumber1>

<serialnumber3>


Or select the field under the and scan or type the serial numbers.


b. When you have all the displays select the action - Add Display as shown in the screenshot above.

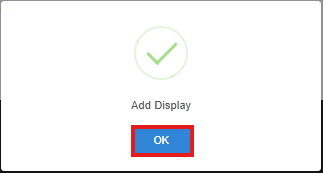

A pop-up message comes up to confirm the action: Click 'OK'

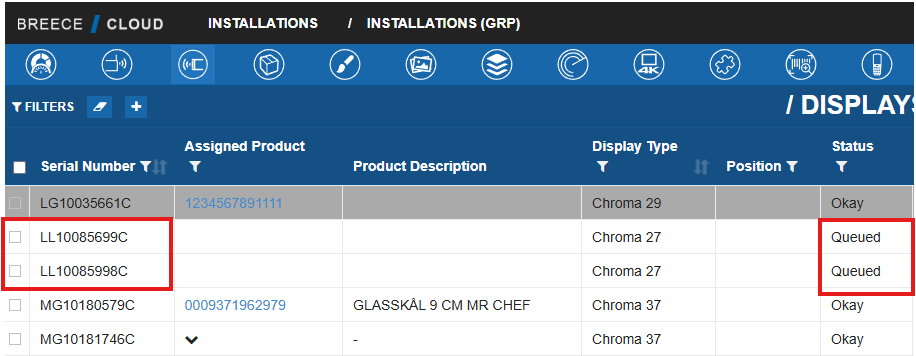

c. Close the 'Displaybatch' window and check for the displays and their status . Initially while the jobs are run, status will be shown as 'Queued'.

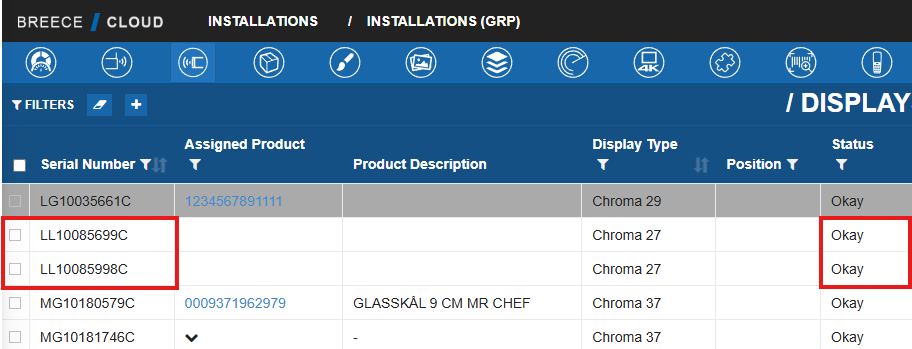

d. After the jobs are done, refresh the display page, and you can see status 'Okay', means the displays has been added successfully.



How to delete displays by 'DisplayBatch' function:


You can upload a file with serialnumbers arranged like this and click " Upload". This will input the data from the file into the displaylist window.

<serialnumber1>

<serialnumber3>


Or select the field below the "Upload" button and scan or type in the serial numbers.

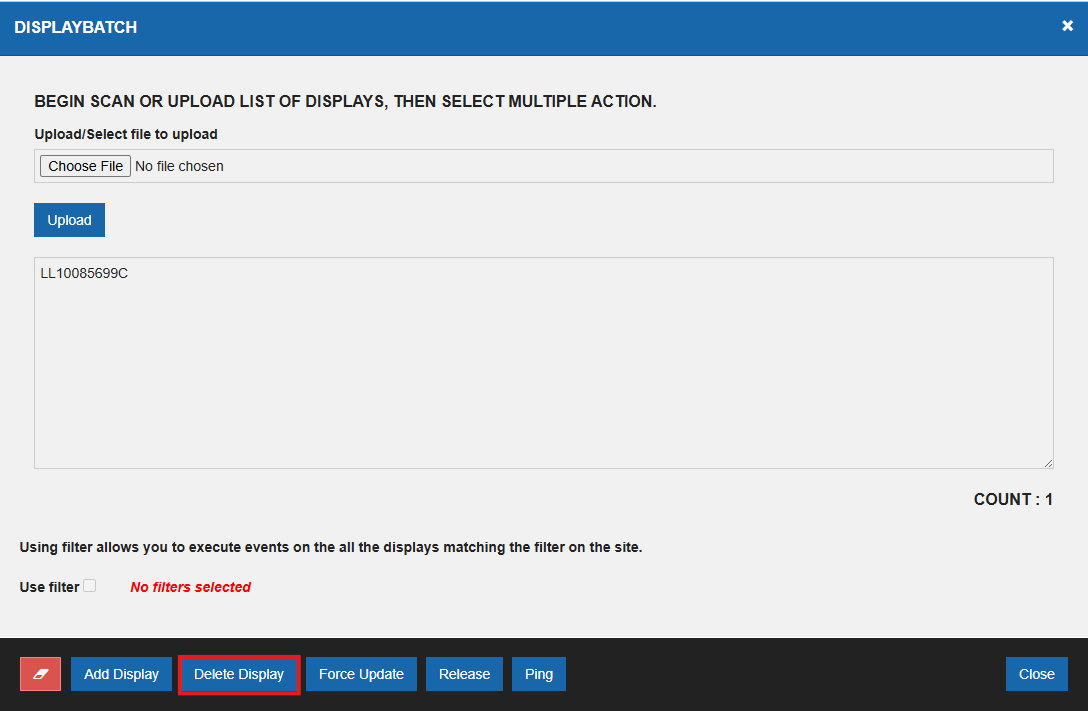

Here you can see an example where only one display will be deleted.

a. Type the serial number of the display you want to delete.

b. Click on 'Delete Display'

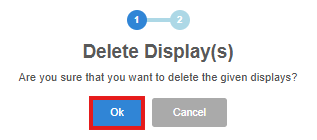

c. A pop-up message comes up to confirm the action: Click 'OK'

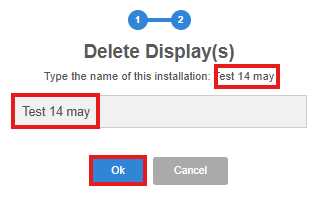

d. Type the name of the Installation and click 'OK' to confirm the deletion.

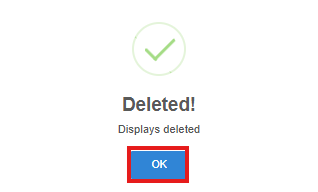

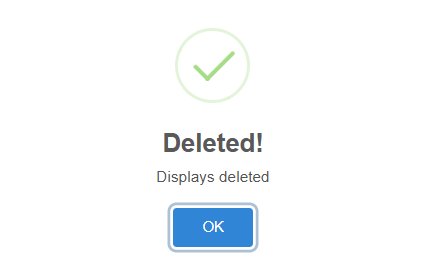

e. Click 'OK' and 'close' the 'DisplayBatch' window.



How to run a Force Update by 'DisplayBatch' function:


You can upload a file with serialnumbers arranged like this and click " Upload". This will input the data from the file into the displaylist window.

<serialnumber1>

<serialnumber3>


Or select the field below the "Upload" button and scan or type in the serial numbers.

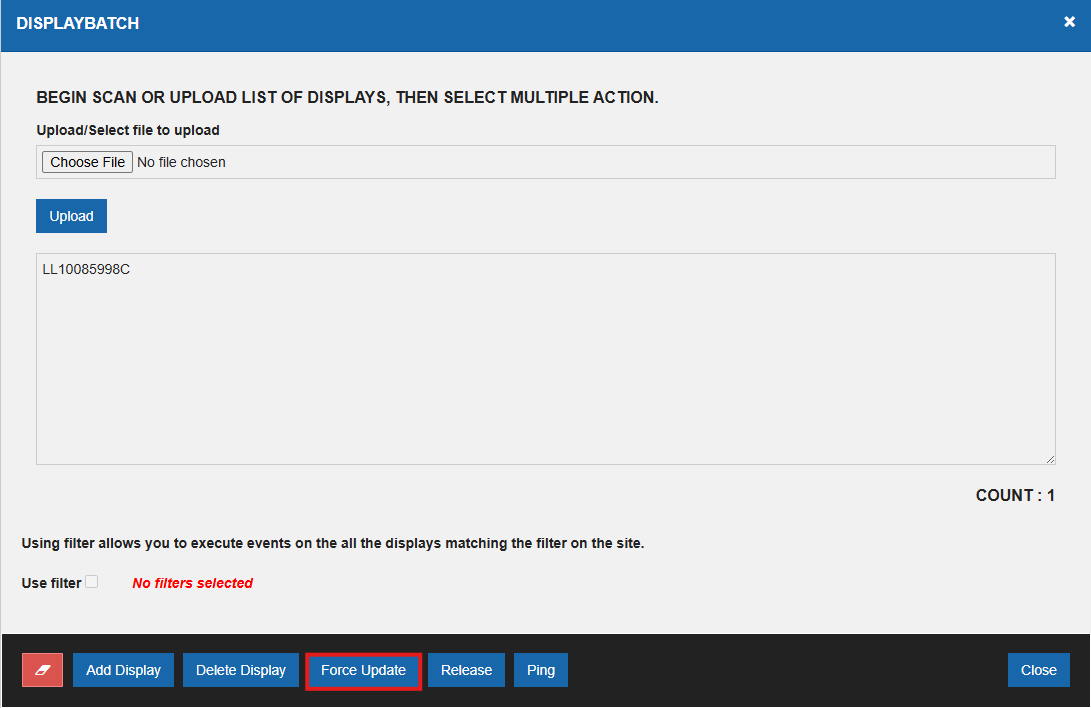

Here you can see an example where only one display will be 'Force Updated'.

a. Type the serial number of the display you want to force update.

b. Click on 'Force Update'


c. A pop-up message comes up to confirm the action: Click 'OK' and 'close' the 'DisplayBatch' window.

d. Check the jobs for the status and wait until the jobs are done.

e. Check the display for the force update. The screen will start flashing and the display will be updated with the details of the product.



How to 'Release' by 'DisplayBatch' function:

You can upload a file with serialnumbers arranged like this and click " Upload". This will input the data from the file into the displaylist window.

<serialnumber1>

<serialnumber3>


Or select the field below the "Upload" button and scan or type in the serial numbers.

Here you can see an example where only one display will be 'Released'.

a. Type the serial number of the display you want to unassign a product from a display.

b. Click on 'Release'

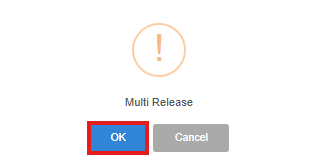

 c. A pop-up message comes up to confirm the action: Click 'OK'

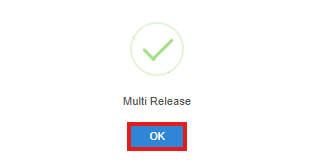

d. A pop-up message comes up to confirm the action: Click 'OK' and 'close' the 'DisplayBatch' window.





e. Check the jobs for the status and wait until the jobs are done .

f. Check the display for the release /Unassign the product . The screen will start flashing and the product is unassigned from, the display.


How to 'Ping' by 'DisplayBatch' function:

You can upload a file with serialnumbers arranged like this and click " Upload". This will input the data from the file into the displaylist window.

<serialnumber1>

<serialnumber3>


Or select the field below the "Upload" button and scan or type in the serial numbers.

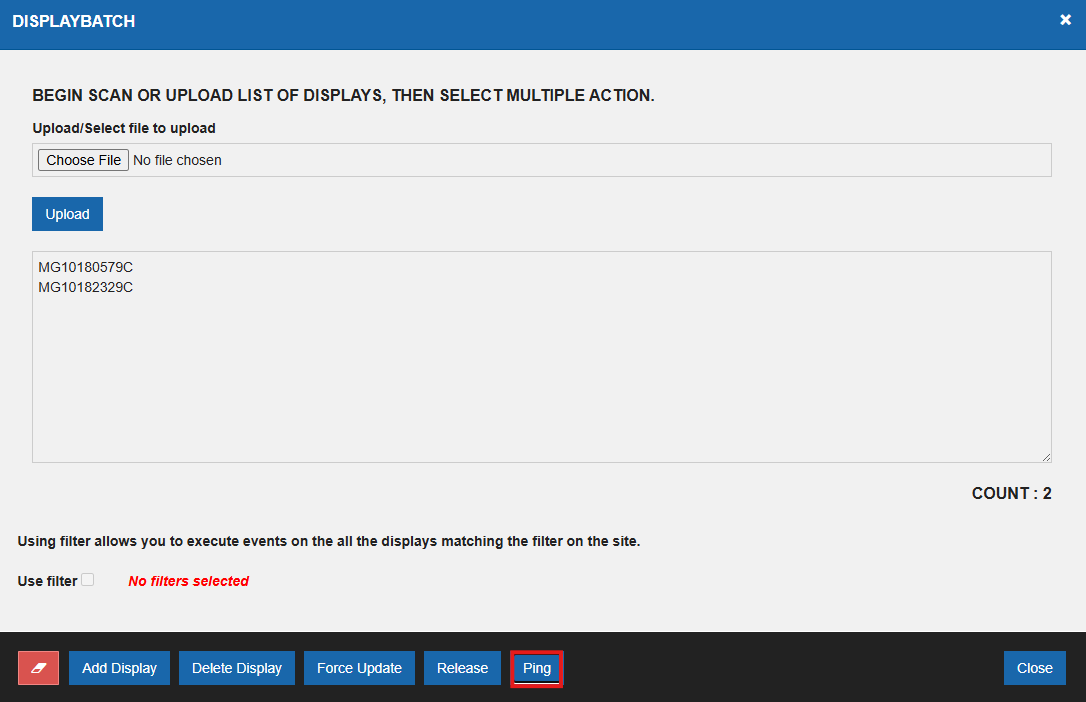

Here you can see an example where two displays will be 'Pinged'.

a. Type the serial number of the displays you want to ping.

b. Click on 'Ping'


c. A pop-up message comes up to confirm the action: Click 'OK' and 'close' the 'DisplayBatch' window.



2. View display batches:


Click on the 'View display batches' .

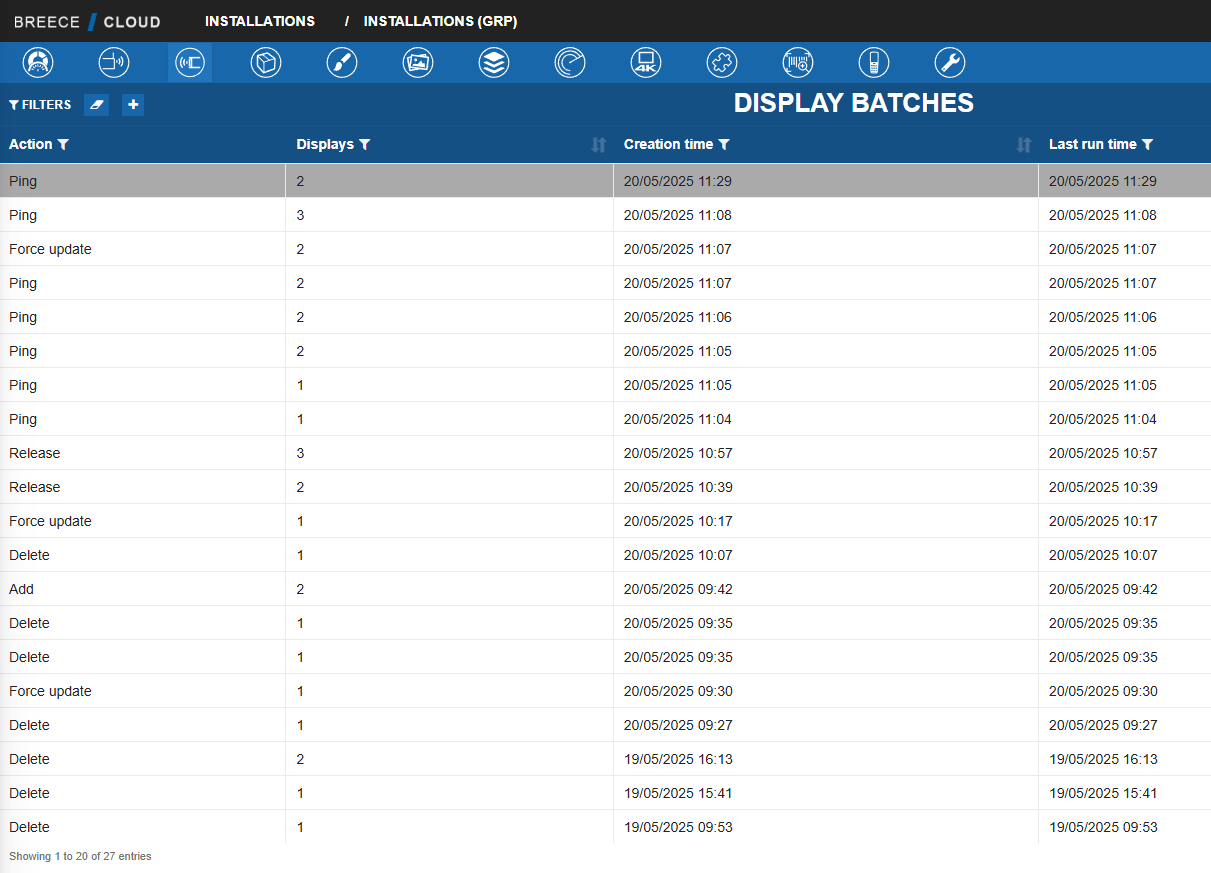

Opens to a new page where you can find the different activities/actions run on the displays with details of the time slots as shown below:




3. Display configuration:

Display Configuration is used to create a job which reserves the antenna to add displays. This function is used when adding many displays at once. Note that it cannot be used when there is more than one antenna on the system.

Note: All users have this function available.


Click on the 'Display configuration'.

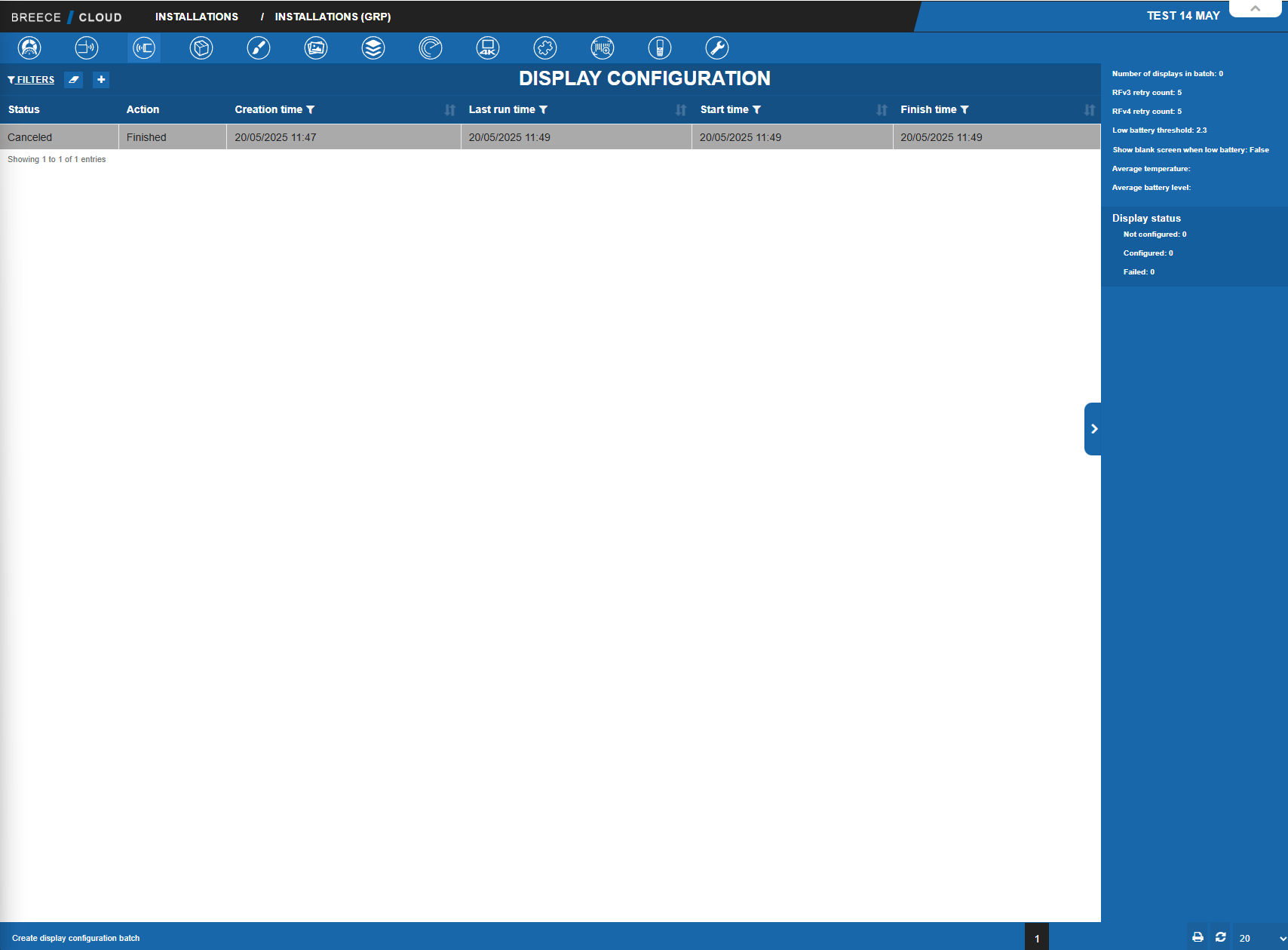

Opens to a new page 'Display Configuration' which show the details as shown below:



If you want to change the configuration of the displays, click on 'Create display configuration batch' in the bottom tool bar.


Opens a new window 'Create display configuration batch' where you can configure the values and click 'Save'.

Note : A pop-up a message in a split second showing that 'created display batch'


4. Manuel Property refresh:
A property job is our system (Breece) that contacts the DisplayData's antenna about specifications on the individual displays. including type, size, firmware and LUT


Click on 'Manuel Property refresh'

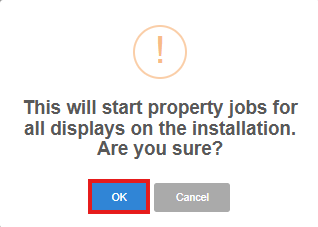

Confirm by clicking 'OK'

Click 'OK' and it will start property jobs for all the displays. You can check the jobs to find the status.

Note: Only administrator have access to this function.


5. Add Display:


Click on the 'Add Display'

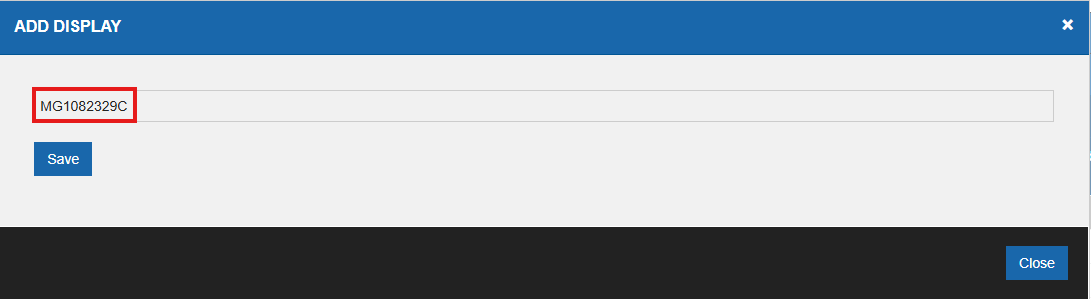

Opens a new window, type the serial number of the display and click 'Save' and close the window.

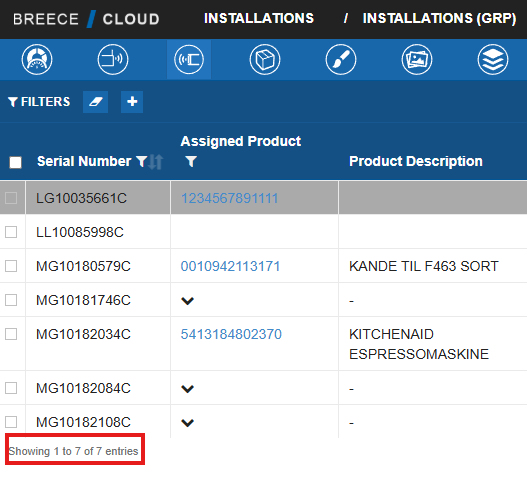

Before adding display: Check the box marked with 'red', shows the number of displays on the Installation.

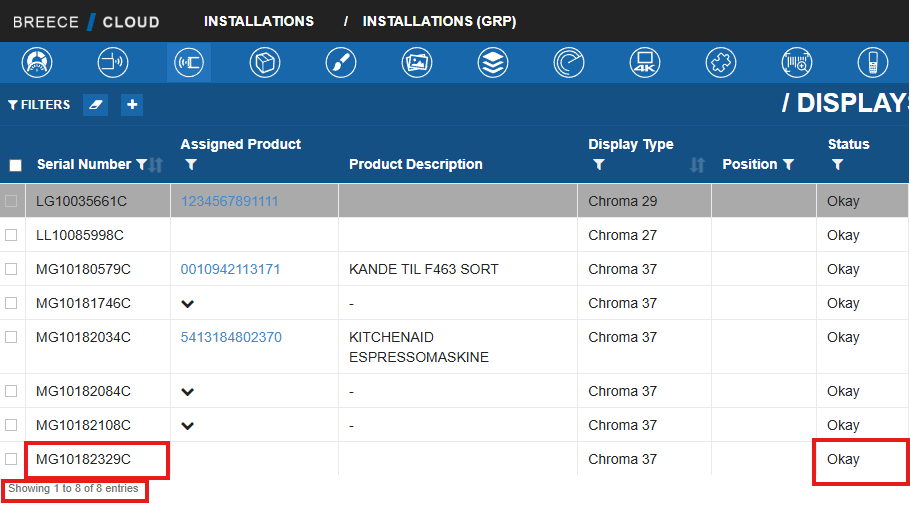

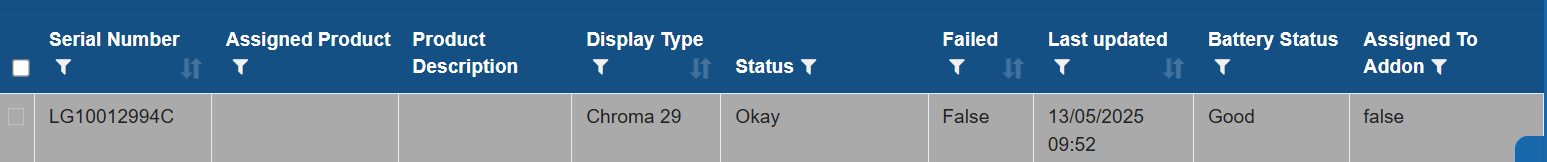

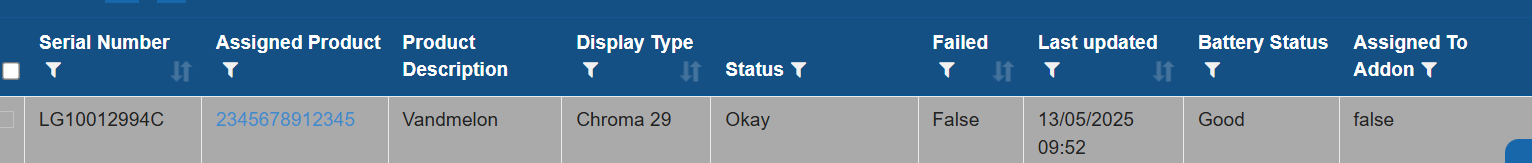

After adding display: New display has been added and the status shows 'OK' which means added successfully and the display is ready to assign a product if needed. If they are status "Failed network configuration", the display is not added to the system and must be deleted and then added again.




6. New Assignment: A process where you can assign a display, choose a product and a layout.


Click on the 'New Assignment '



1. Opens a new window as shown below: Type in the serial number of the display and press 'Enter'


2. There opens a new window where you can assign a product number to the display and choose the layout from the dropdown menu and click 'Add'

Choose Layout: Different layouts can be added to the displays by :

1. Go to configurations (Rench).

2. Click on definitions.

3. Choose and activate the layouts from the list, so that you can see the activated layouts in the dropdown - Choose layout under display/display assignments (Batch).

4. You can also set a layout as a default by clicking on 'Set as default', so that the layout will be shown as a default.

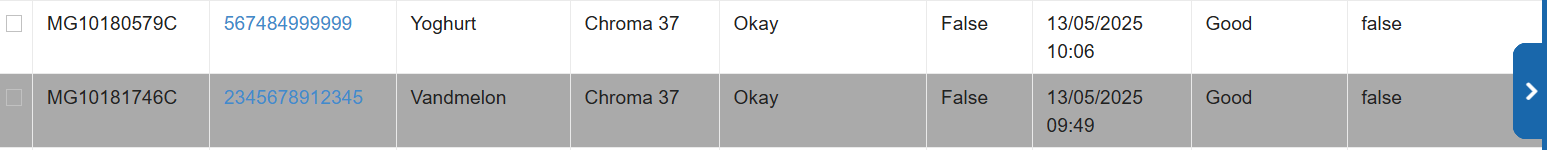

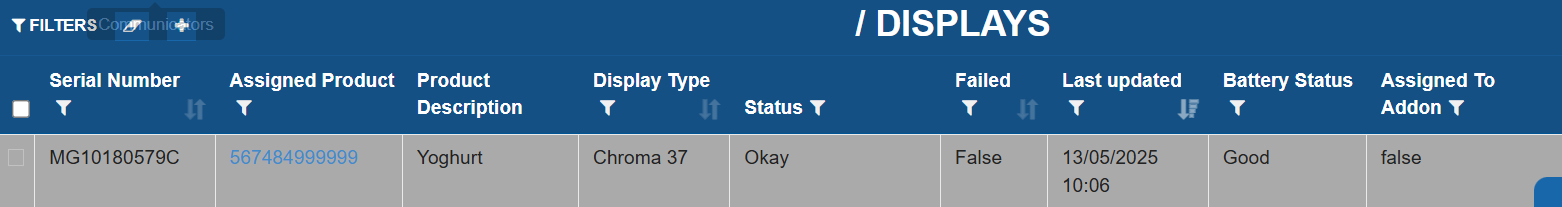

3. Check the display page and you can see the product is assigned and product description is filled and the status is 'OK'. The display is updated and ready for use.



 7. Export Filtered List:

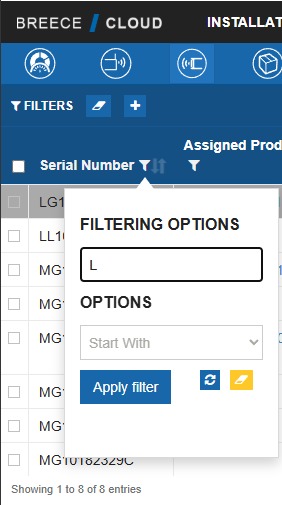

Before clicking the 'Export filtered List' , first you need to filter which displays you want to export. This can be done by clicking on the filter icon and select the display as shown below and click on 'Apply filter'

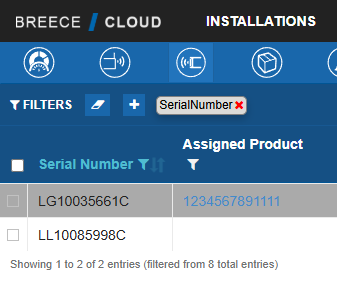

Page will be refreshed and it hsows the displays based on the filter used as shown below


Now click on 'Export Filtered List' and the list has been exported to down load. Open the file and you can see the same list as an excel file.
