BreeceGo and Control your Breece Cloud System in your Palm.
Use BreeceGo both on dedicated mobile handheld devices and mobile phones.
Get BreeceGo for Android on Google Play and IOS on App Store.

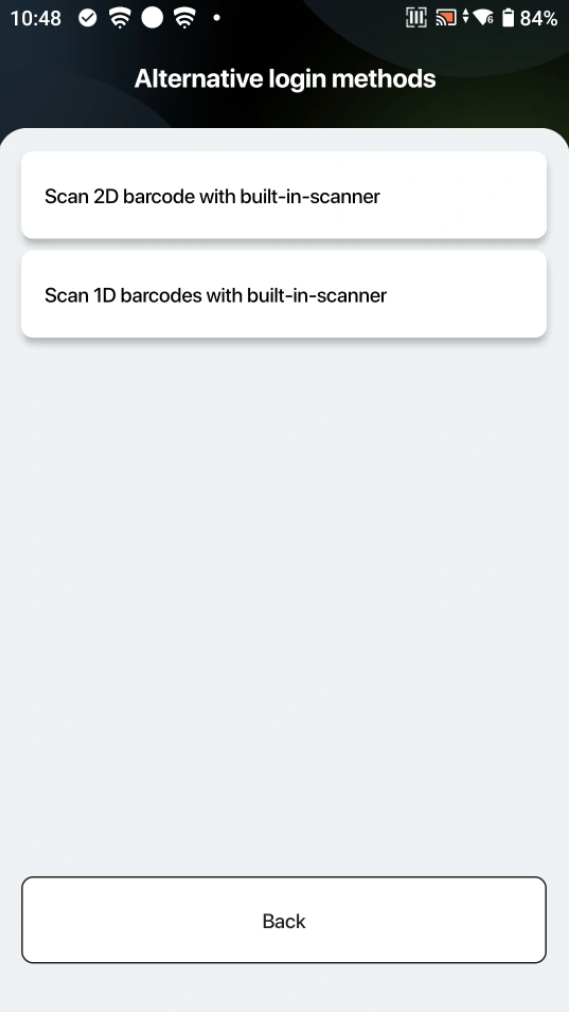

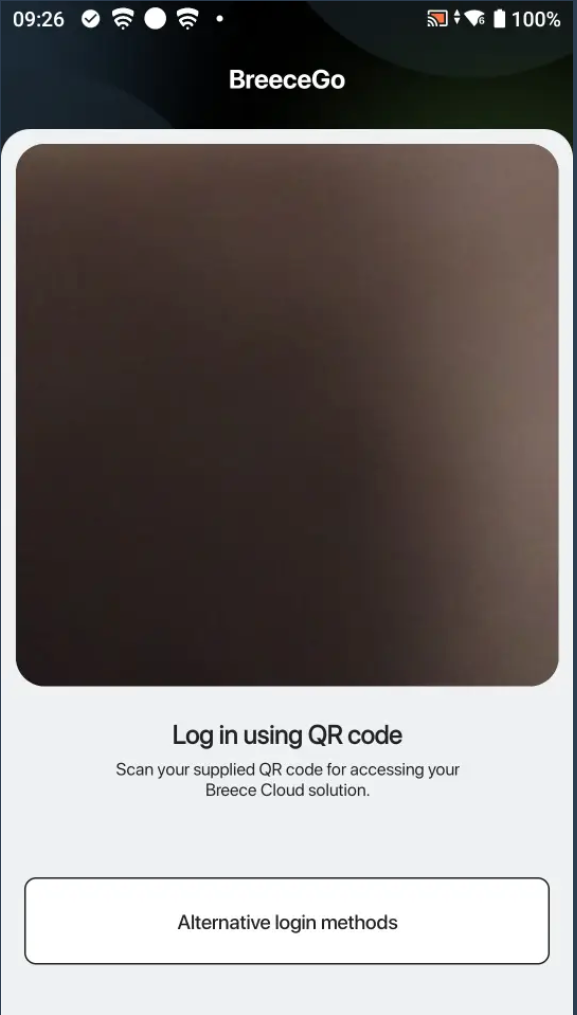

Scan the QR code you got in e-mail, printed paper, or web
After the first login, it's time to name the app/device
(optional) - Logging in with Access Duration Time (set in Breece Cloud)
the remaining login time is shown at the bottom of the screen
Push out messages to users.
At the top of the screen, it is possible for the cloud system to push out messages to users.
When tapping the yellow bar with the message at the top, the whole message can be read.

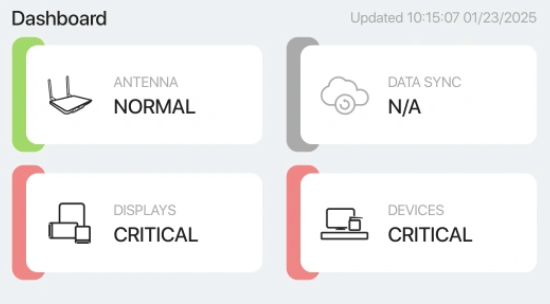

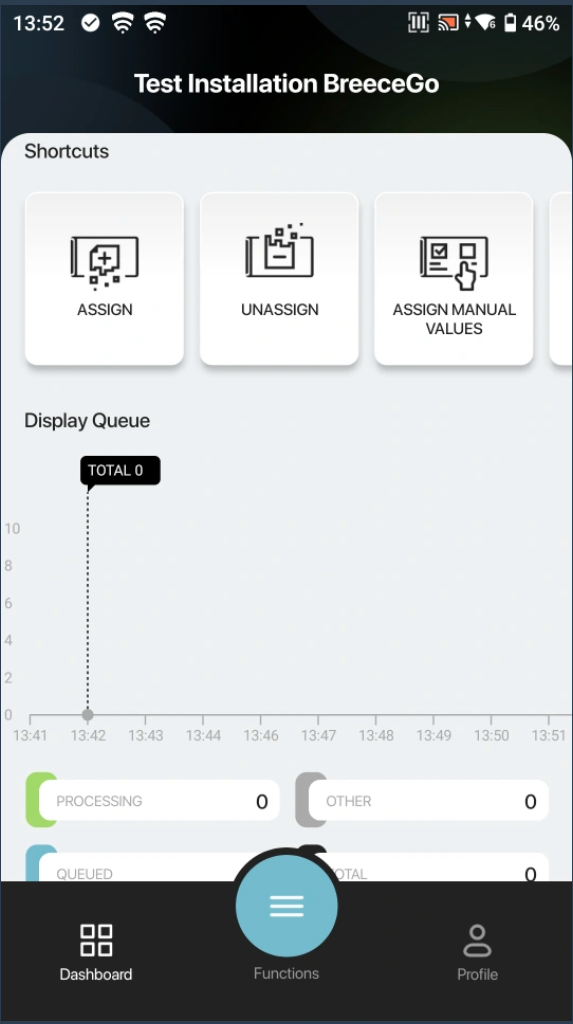

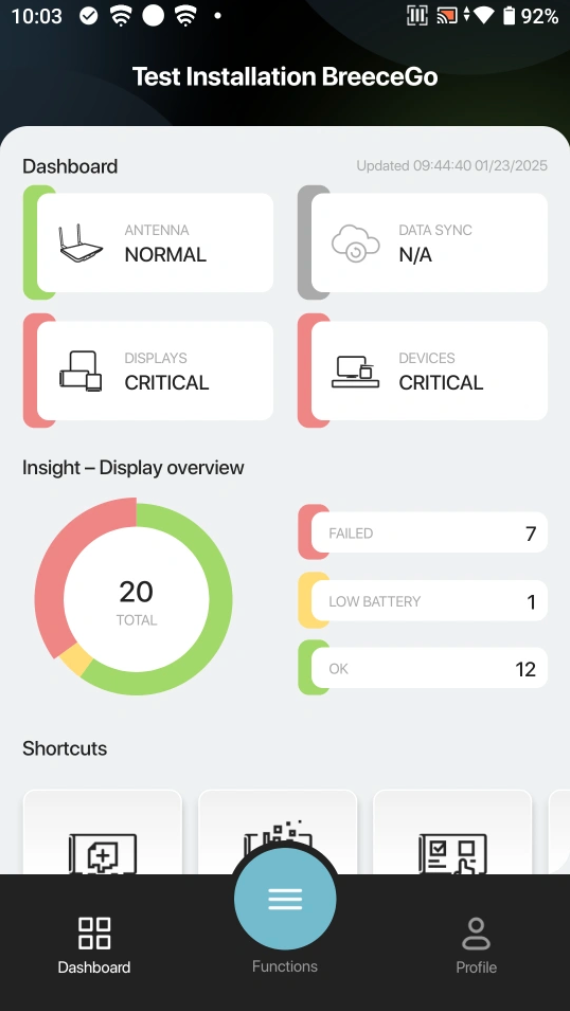

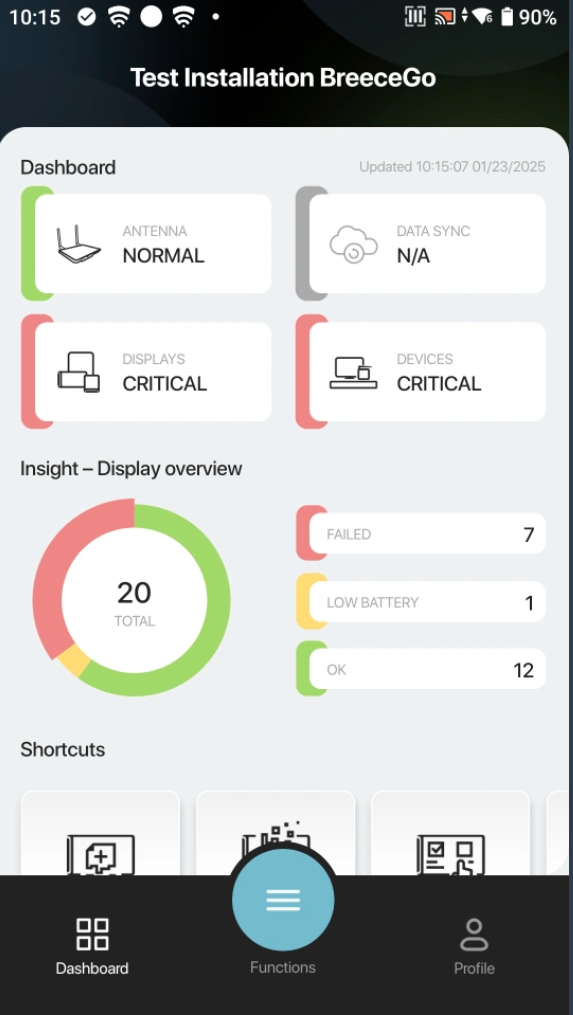

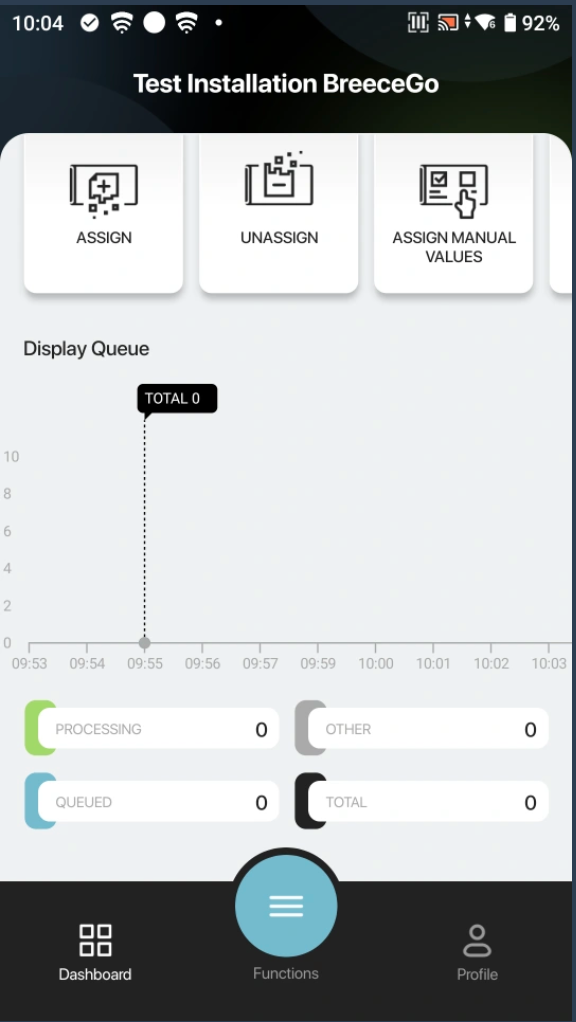

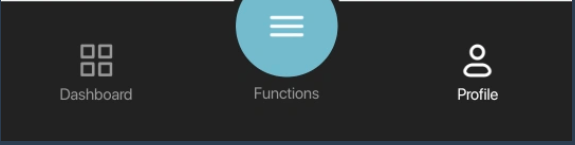

After logging in, the Dashboard appears in the upper part of the screen. It is showing:
Red is an alert
Yellow is a warning
Green is OK
Grey is nothing is available.
Tap the Tile if you want to see more detailed information.

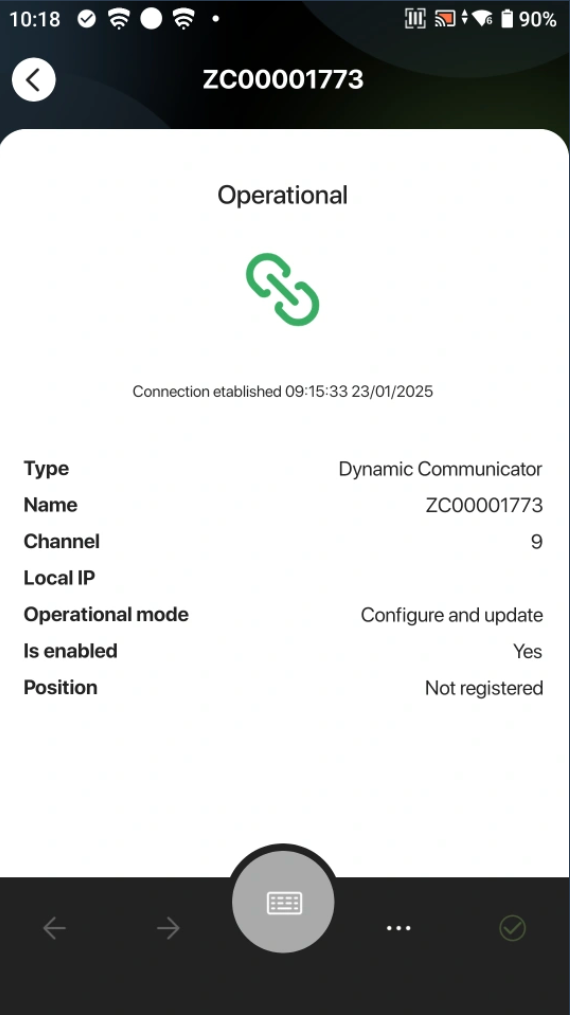

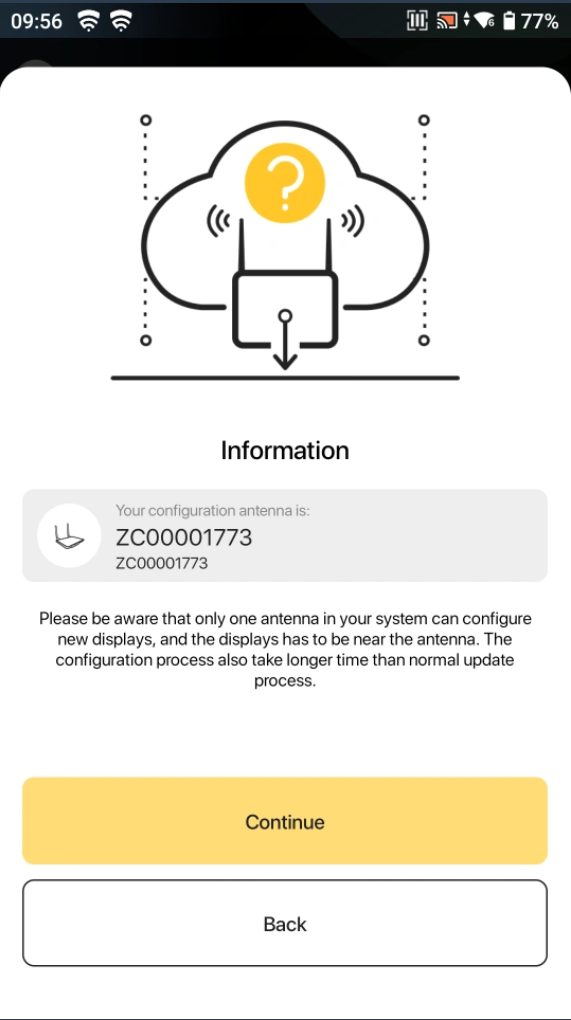

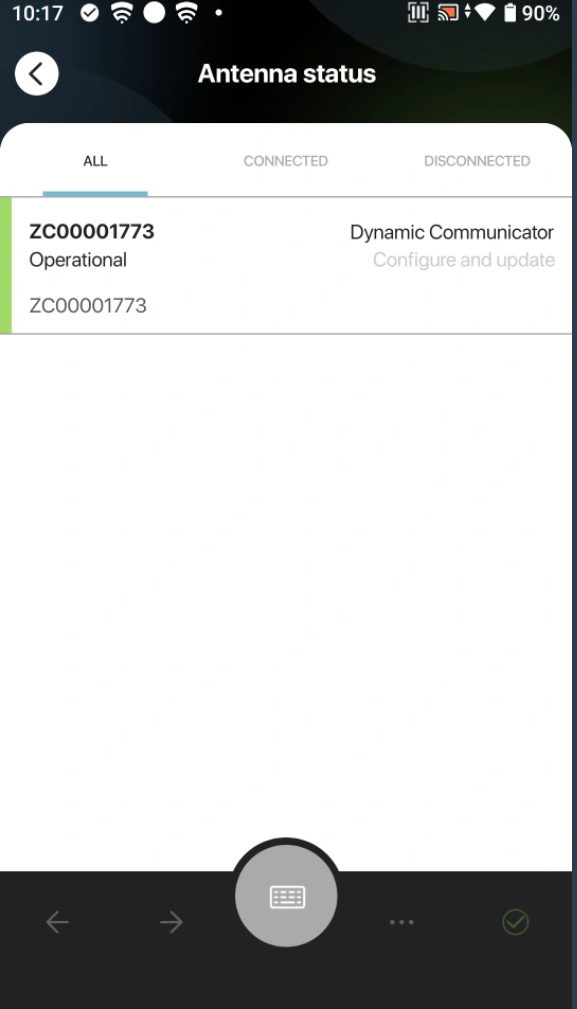

Tap the antenna tile to get further information.
Dynamic Communicator is tapped, and it is possible to test its connection.

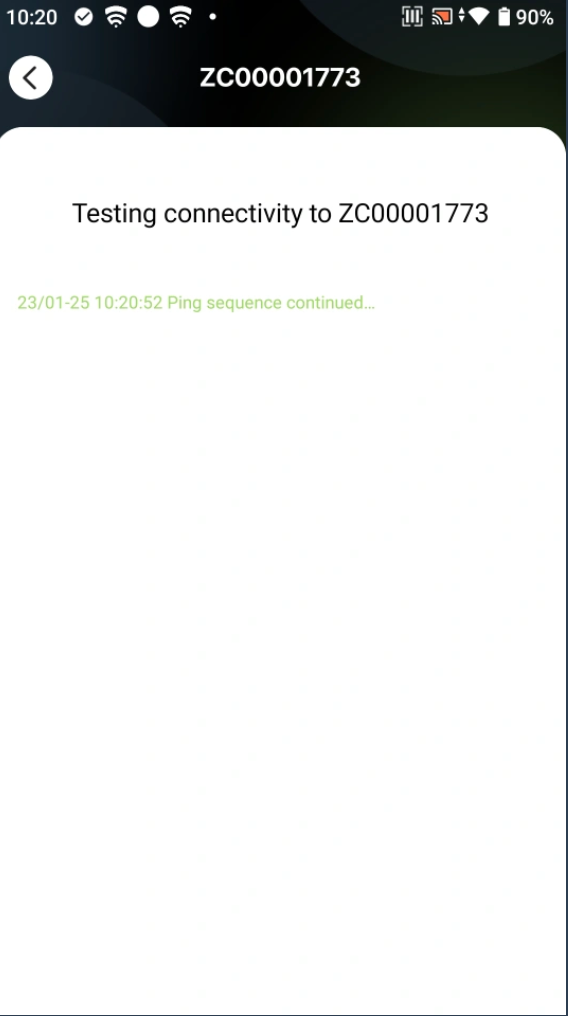

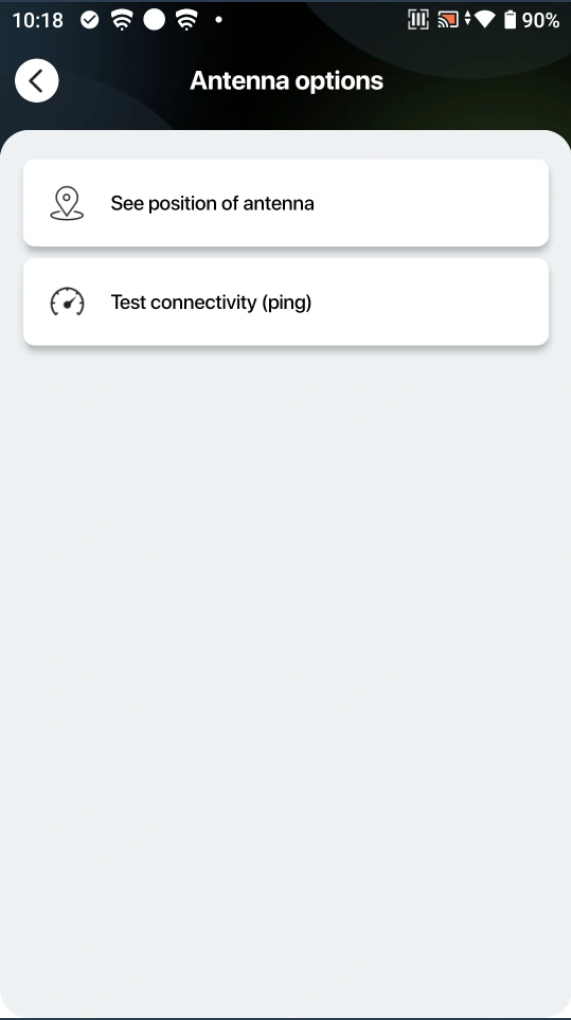

Tap the Test connectivity (Ping)
If there is no connection to the master antenna, the system can not communicate with the displays.

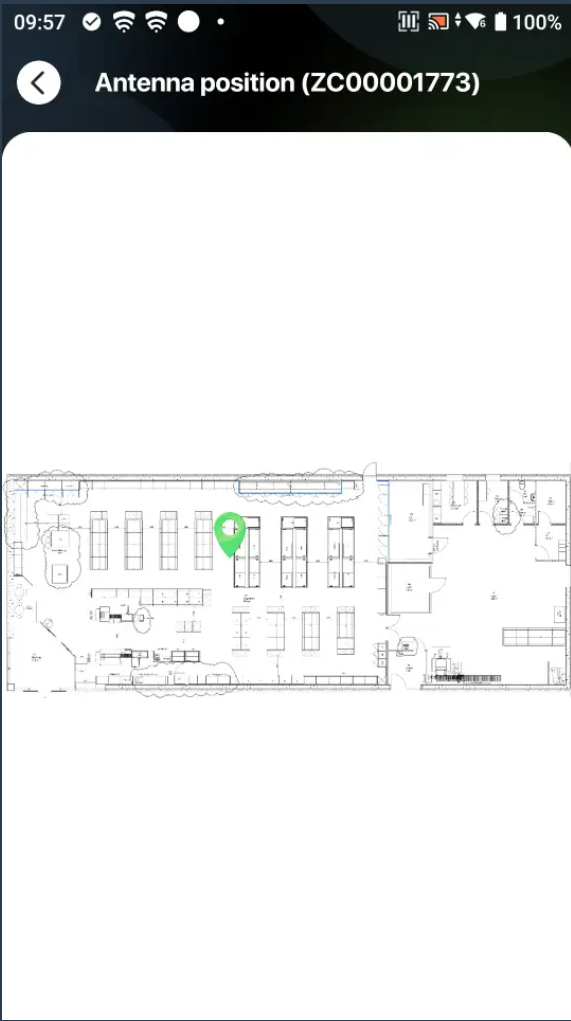

If you want to see
the antenna's position, tap the 3 dots in the upper right corner and press See position of antenna.

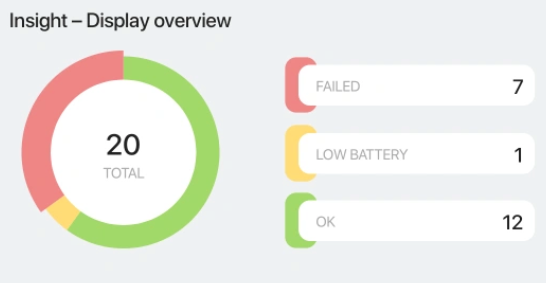

here you can see the Display status
- Failed displays
- Displays with low battery voltage
- displays Ok

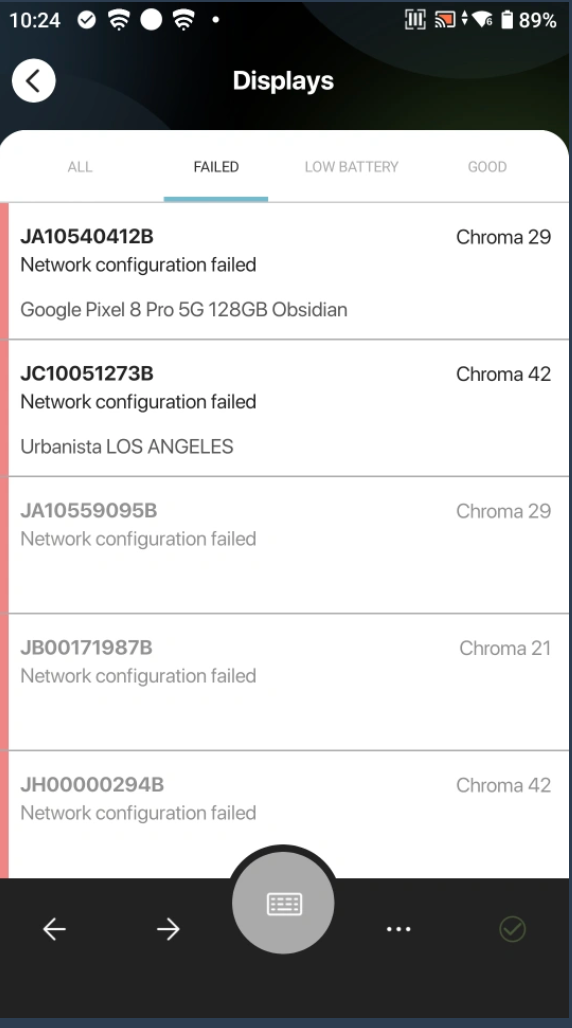

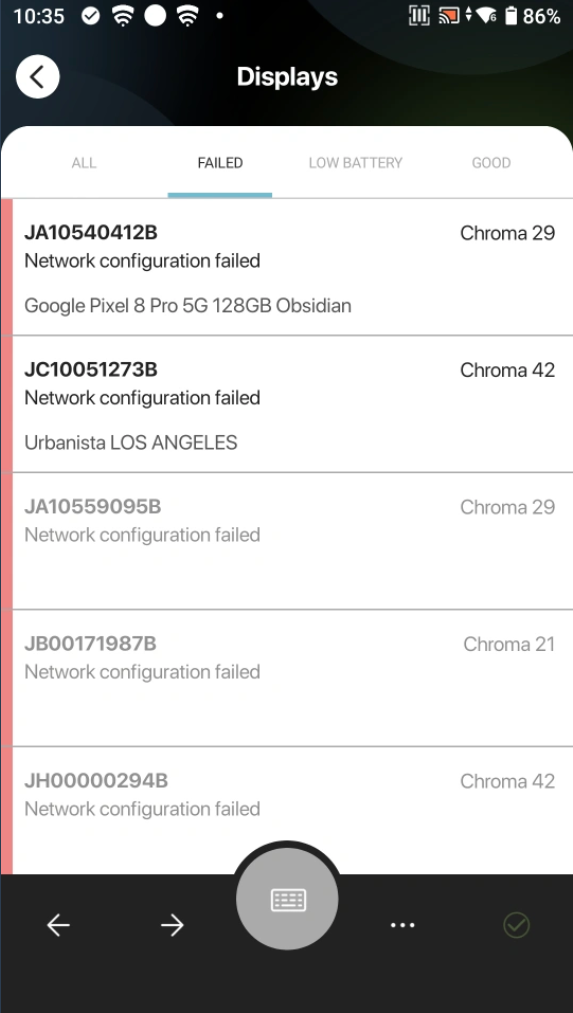

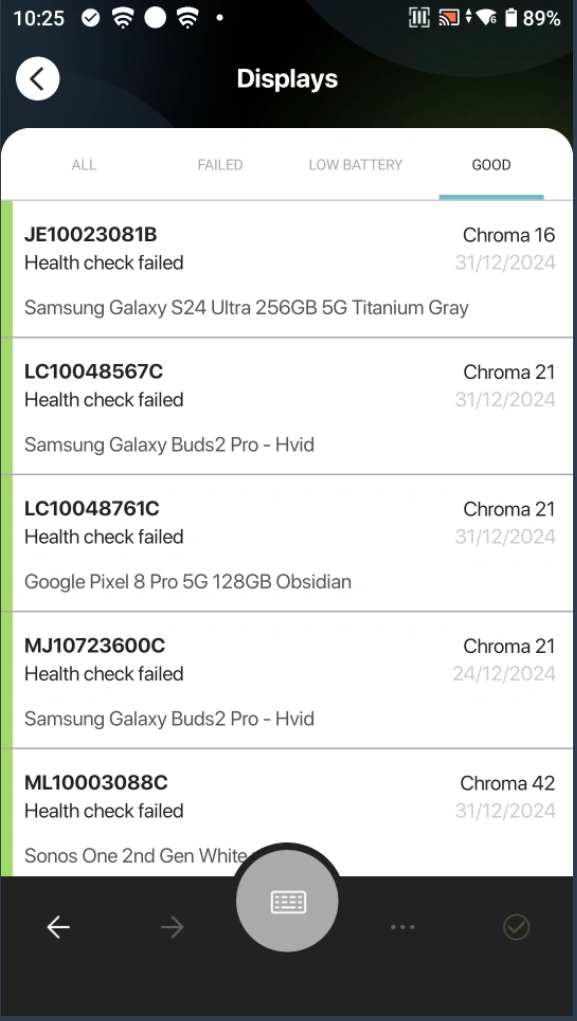

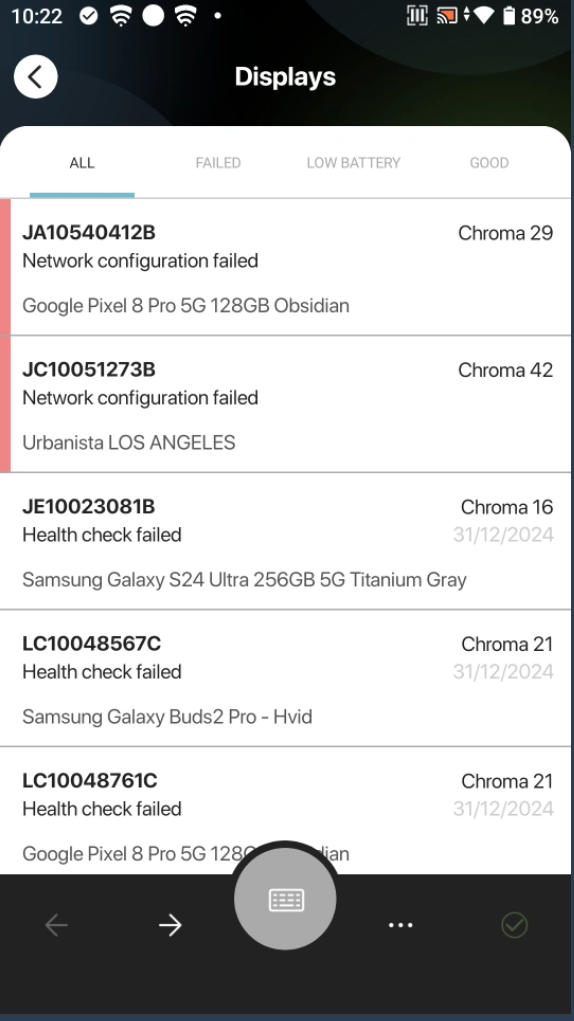

Tap on the tile this will bring you the list of the display

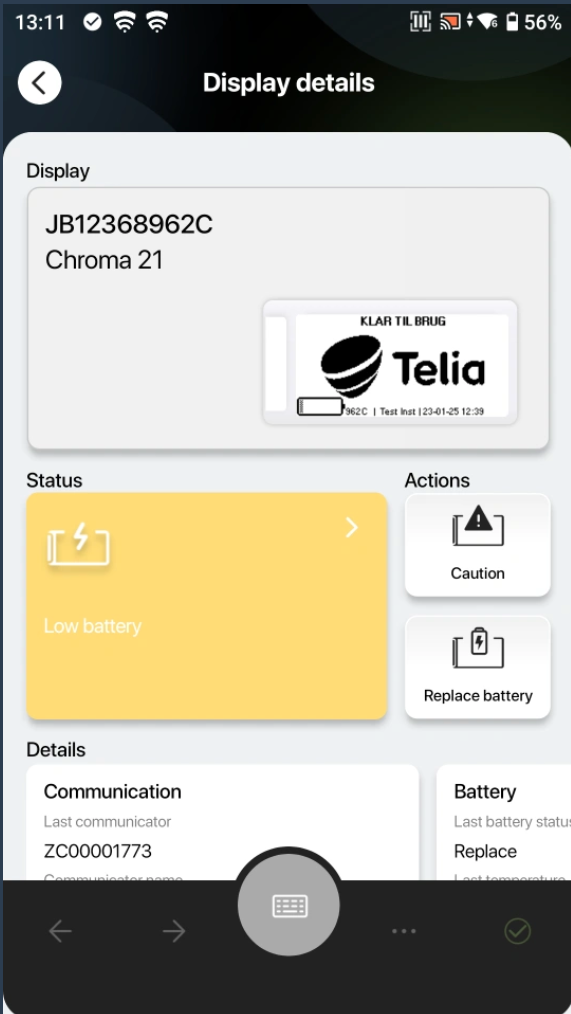

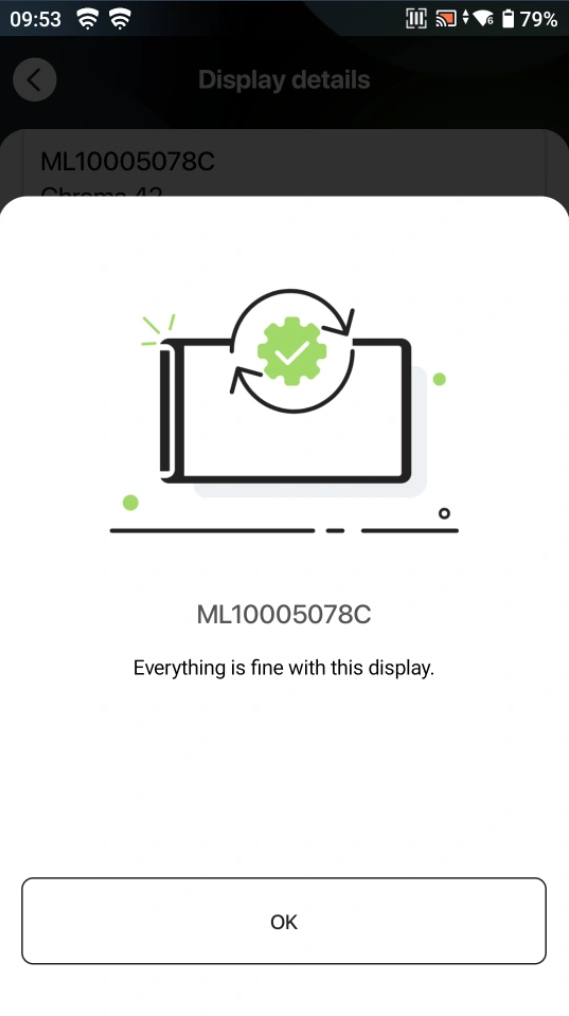

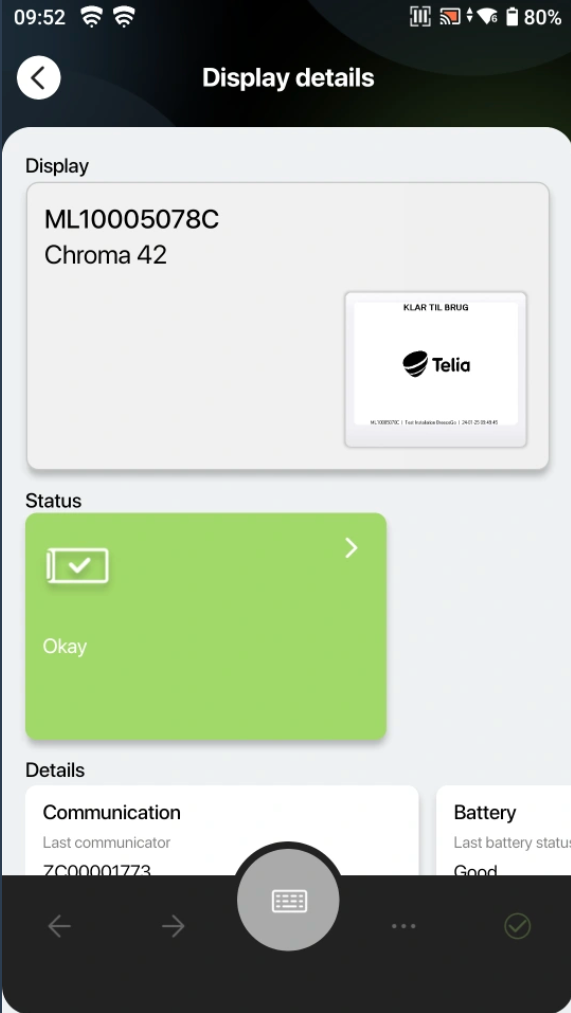

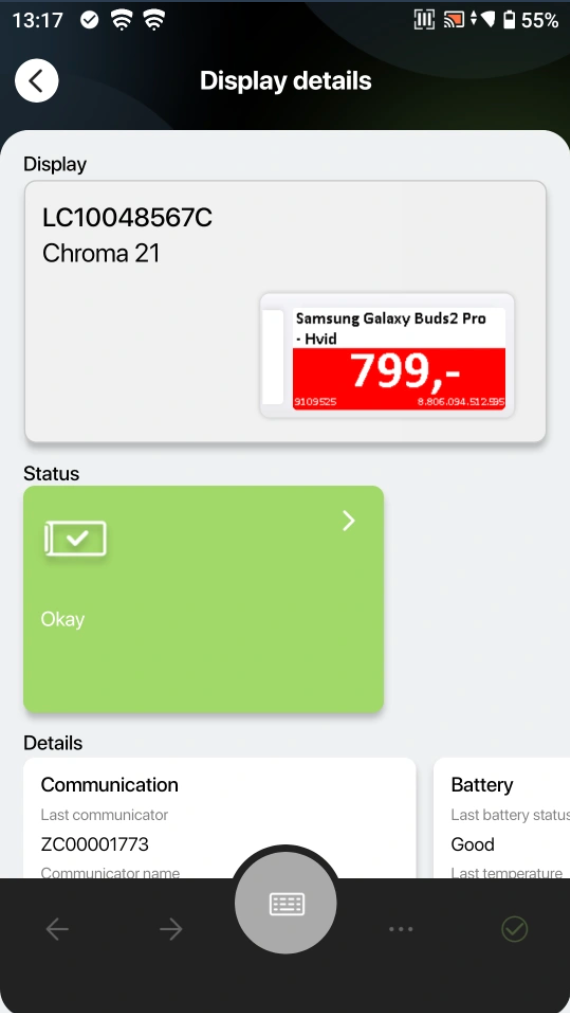

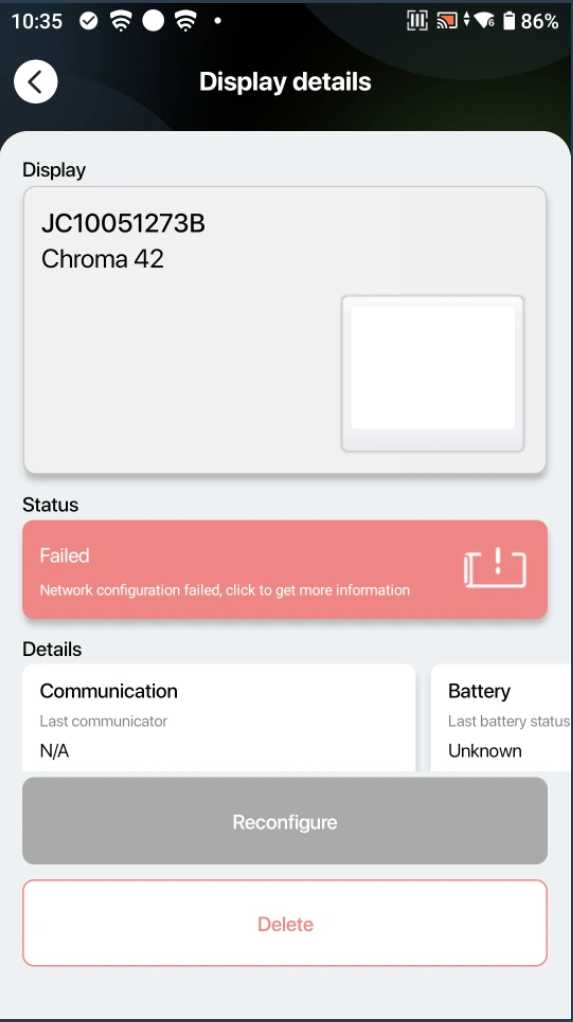

you can then tap on the displays to give further information about the display.
When a finger is holding onto the picture of the display, it is possible to save, copy or share the picture.
This can be usefull in support situations.

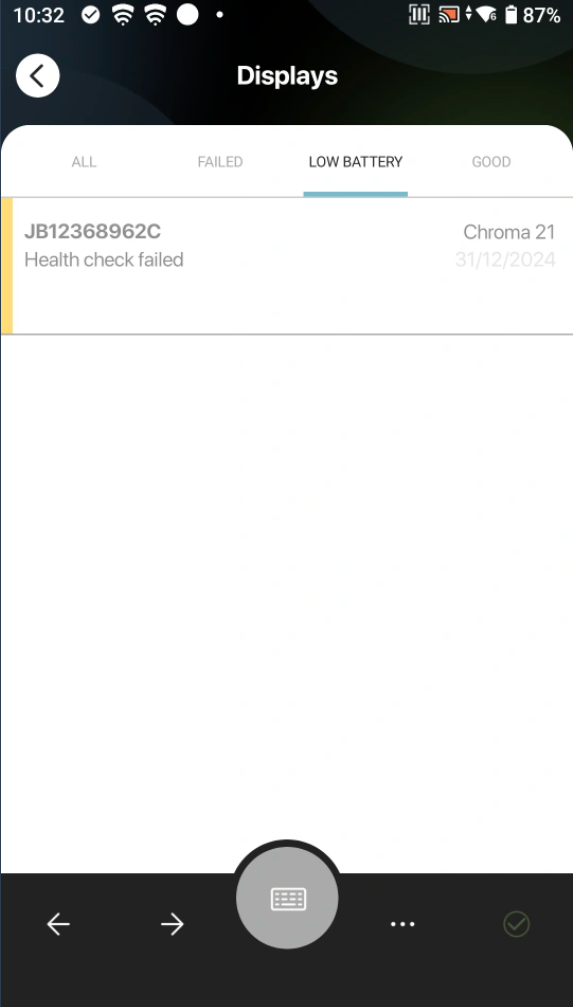

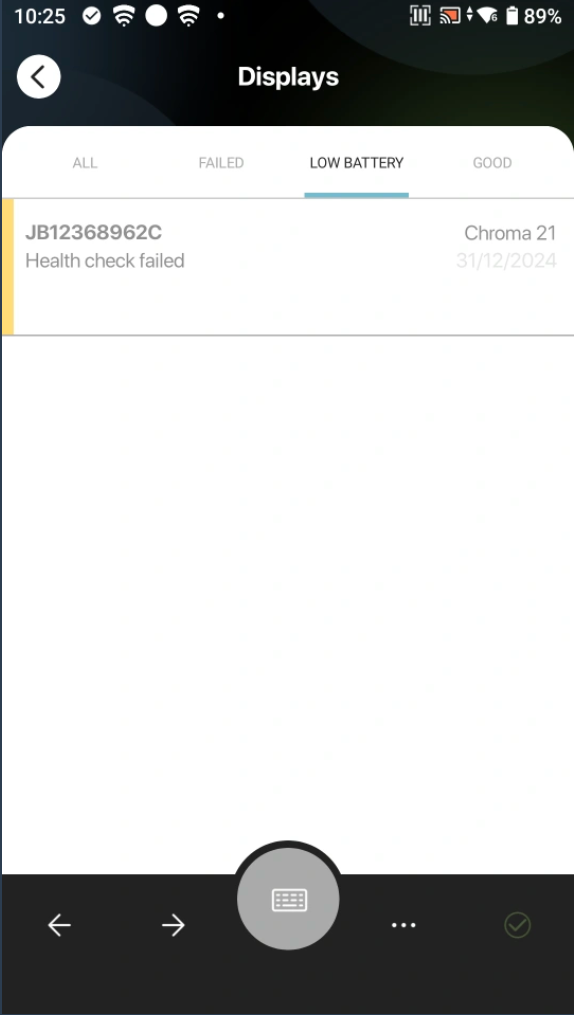

Low Battery Displays
All displays due to the low battery are listed here and can be seen by tapping the tile.
When a display appears in Low Battery then the battery change is due and the batteries have approximately 3 months of power left before they run out.
(In the store: Find the low-powered display by finding the attached product)
By swiping left on the displays in the list or by tapping the display in list to see details

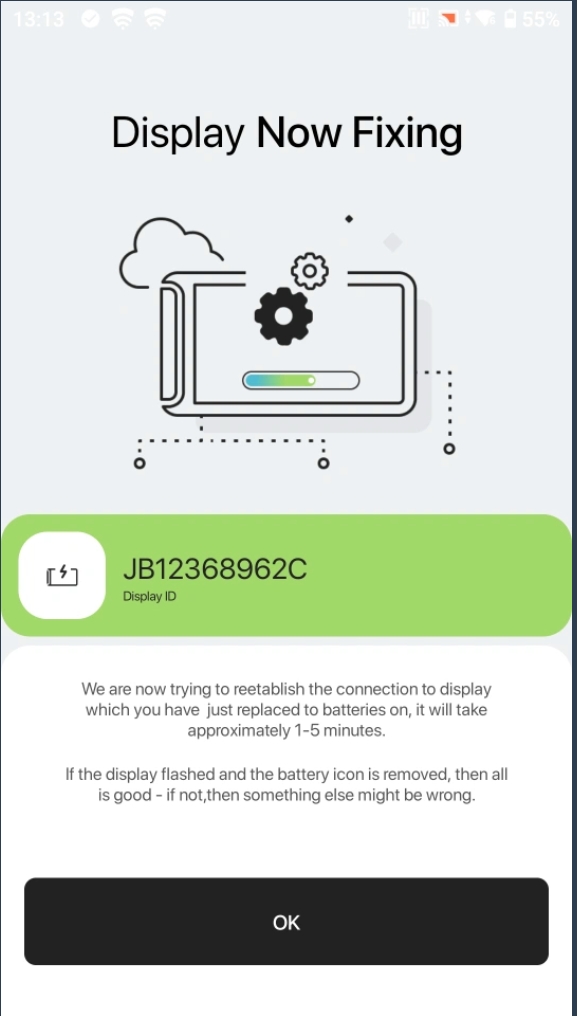

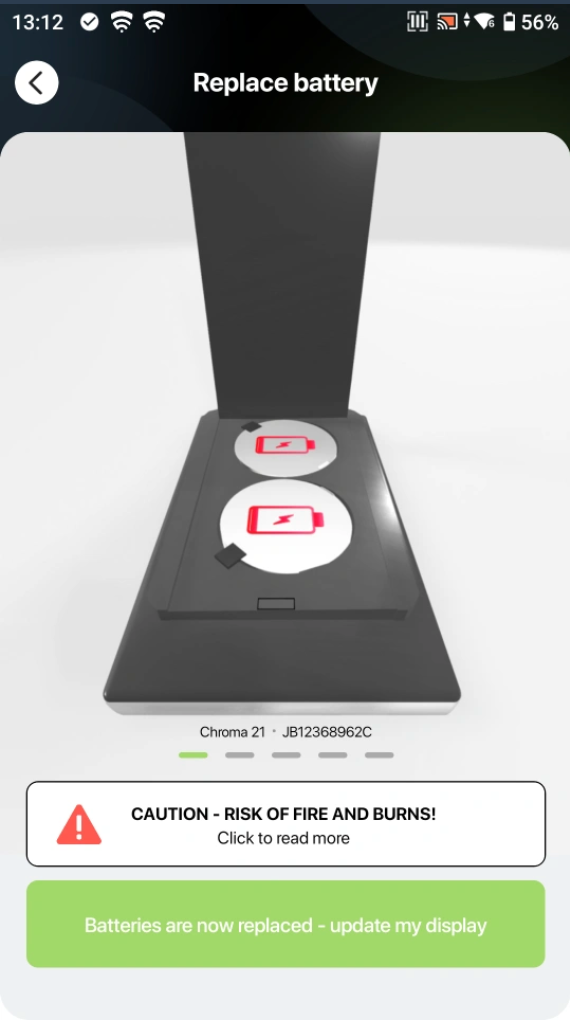

it is possible to handle low bat. We will guide you to change the batteries.
To interact with the Display

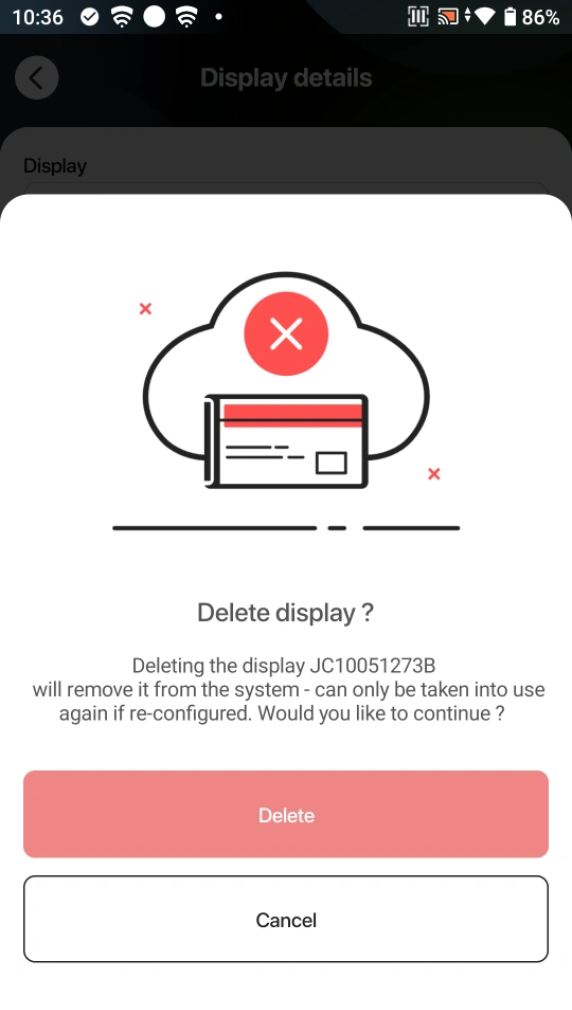

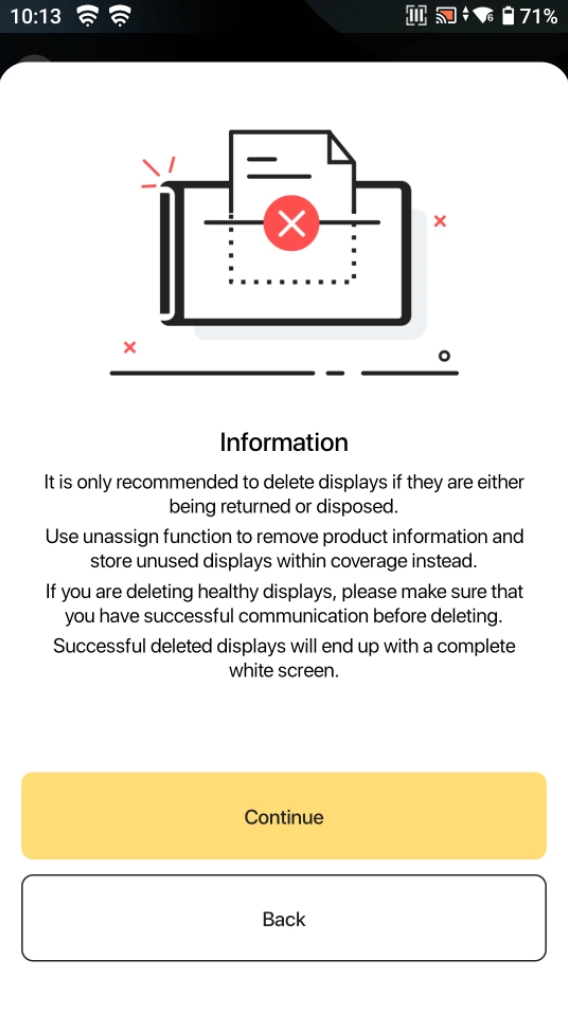

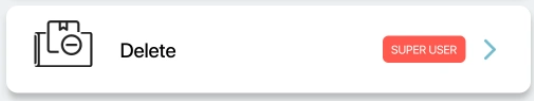

- swiping left it is possible to delete,

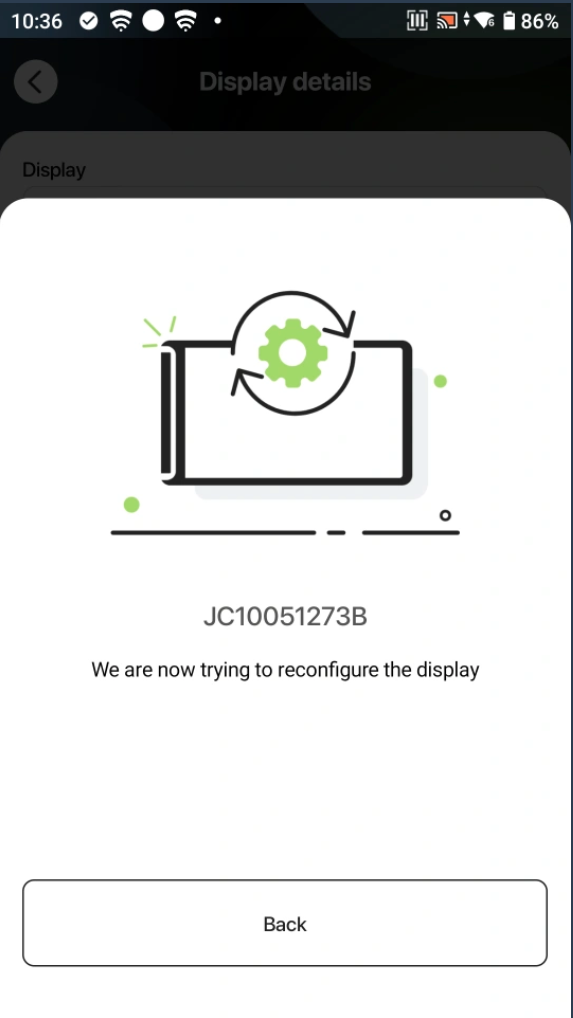

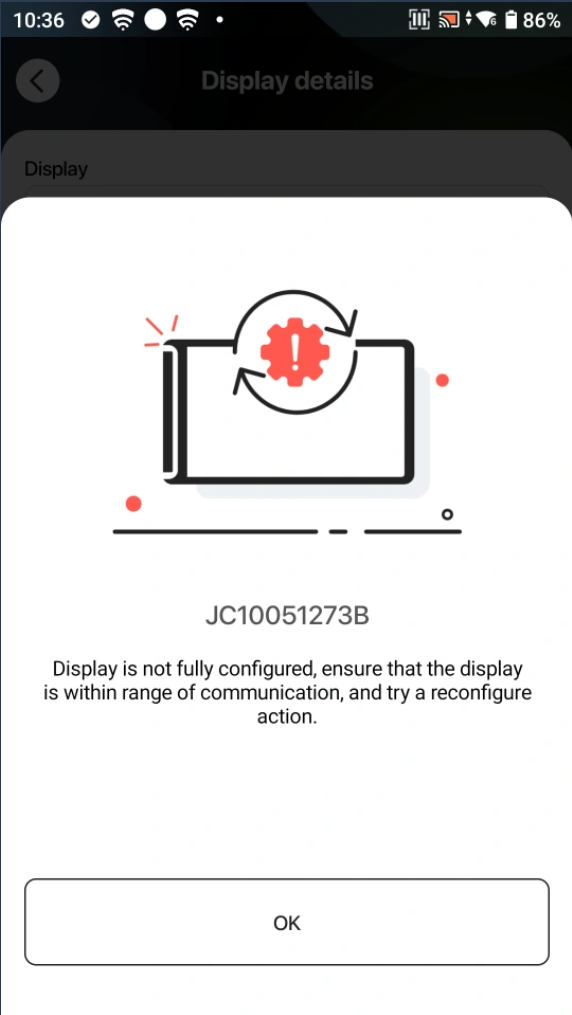

- reconfiguringForce update or reconfigure is to try to fix the error
Reasons for display failure can be:
Out of the Antennas reach
Failed network configuration
Displays completely out of battery

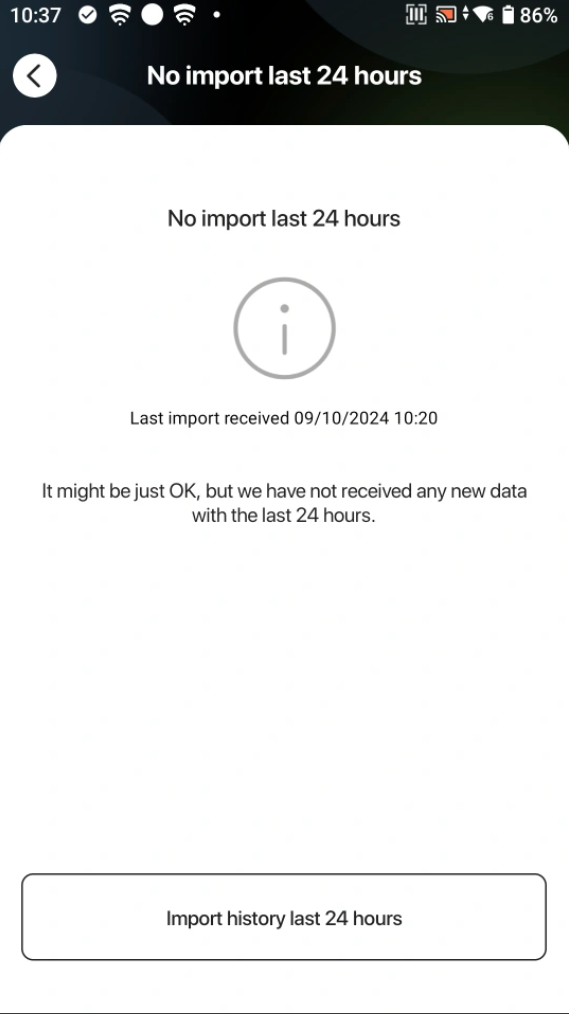

Data Sync ( Import)
By tapping Data Sync, the status of the import is shown.
This can come in handy to find errors in the system.
If there are no imports, Control the ERP Export.

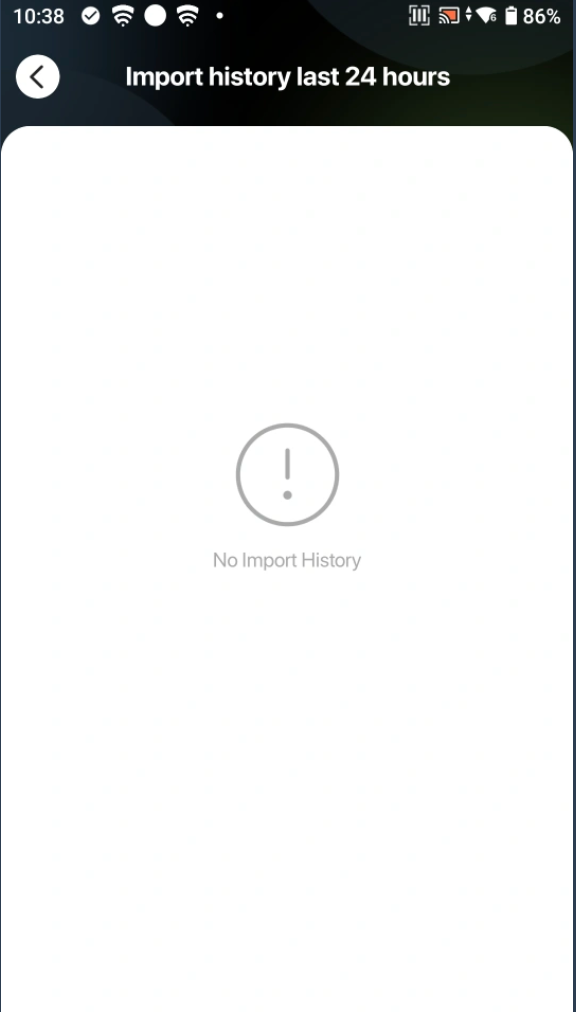

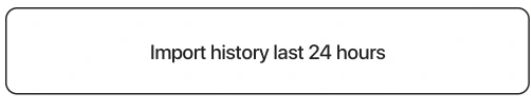

By tapping the 3 dots in the upper right corner, it is possible to see the import history and if there are faulty imports.

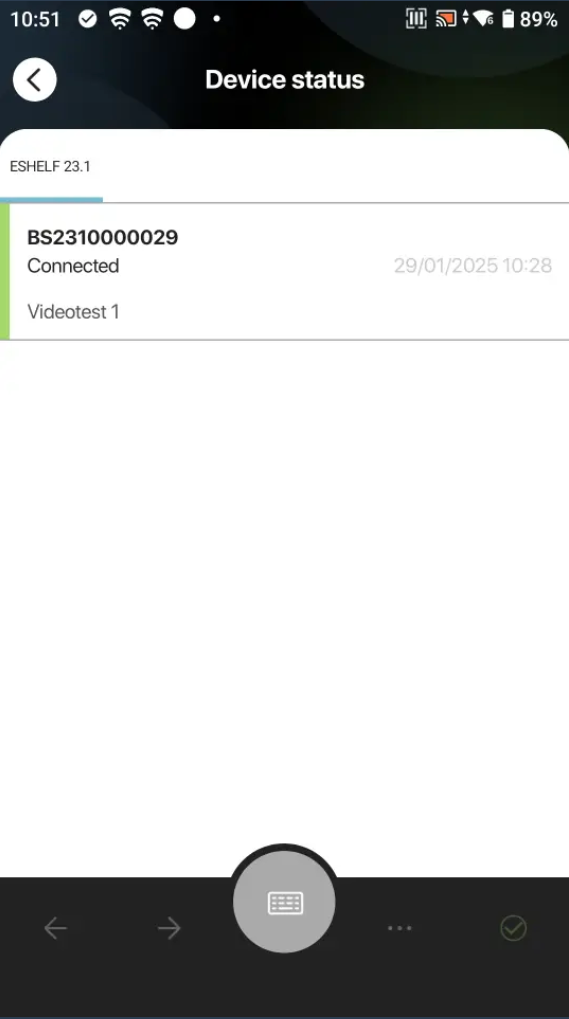

Here is a list of other devices run by the Breece Cloud.
Vision4K is the 4K price-enabled Digital Signage system Powered by Breece Cloud to be used on large screens.
When the Vision4K is offline it appears here with the color red and can be tapped and actions are taken.
Stretch displays is an AC-powered display, that can be mounted on a shelf and can be divided into different parts ESL-like.
When the Stretch display is offline it appears here with the color red and can be tapped and actions are taken.
All working devices have a green color to the left of the device name.

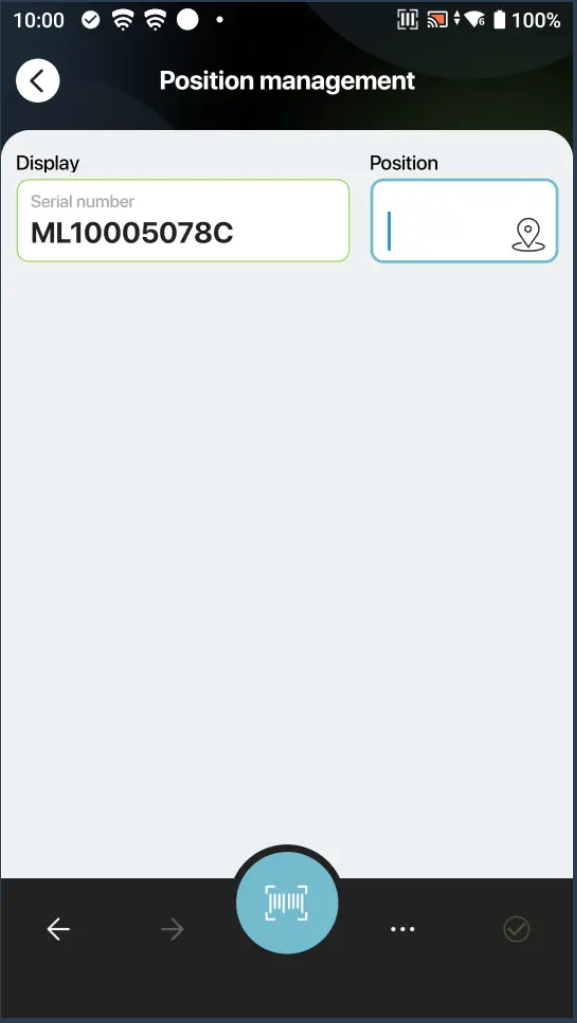

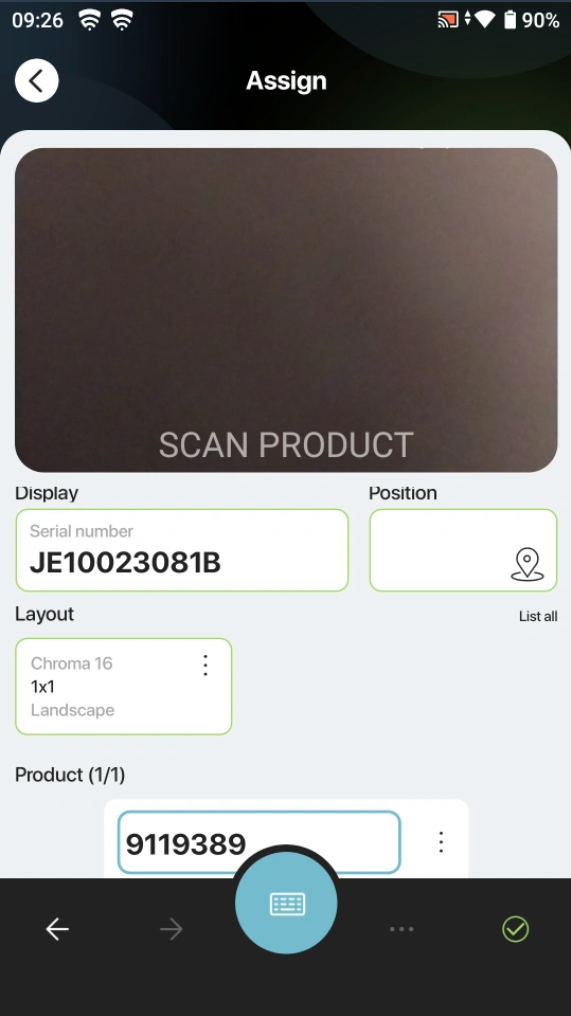

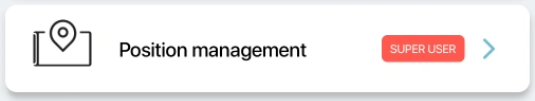

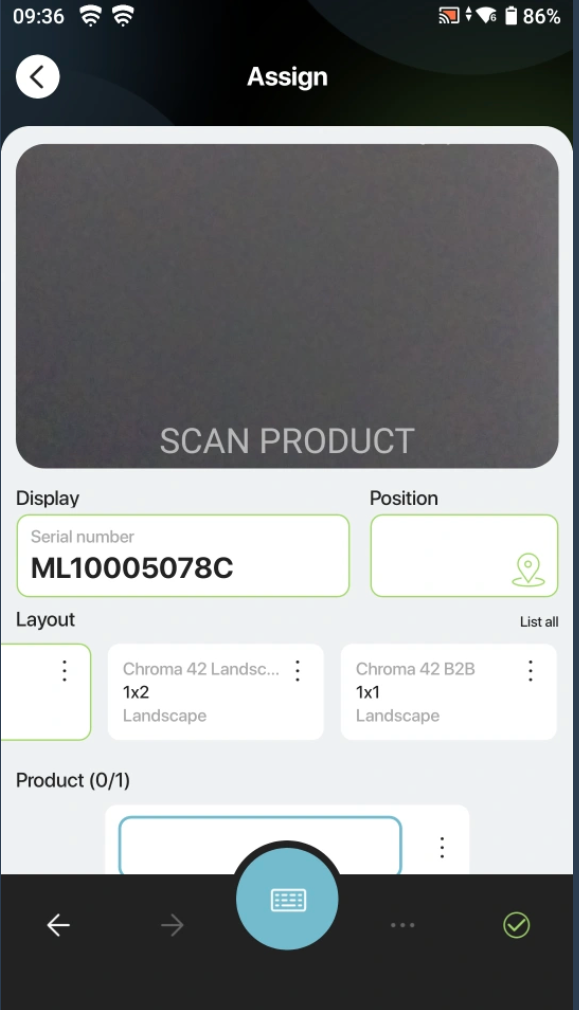

Asign with positions

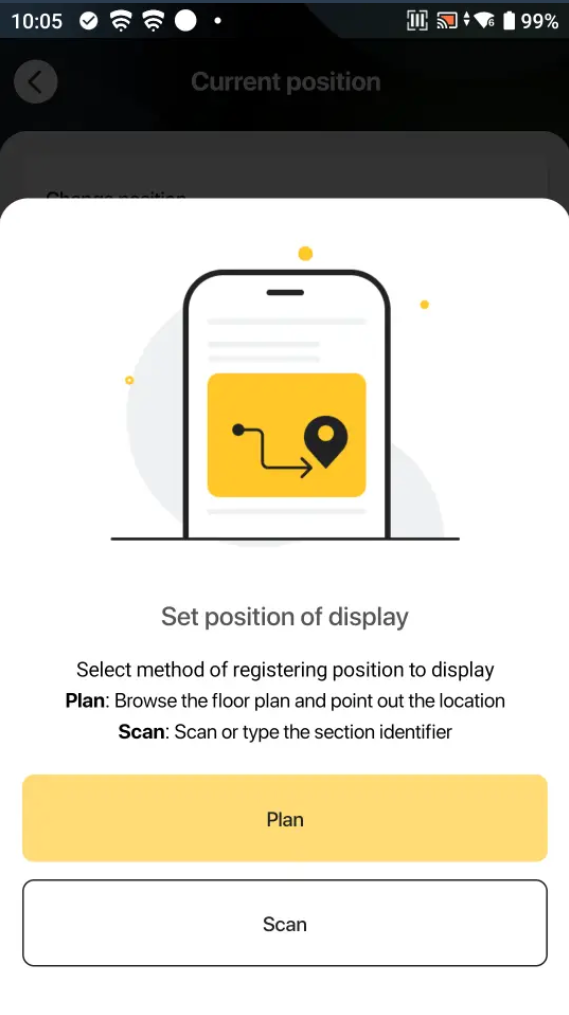

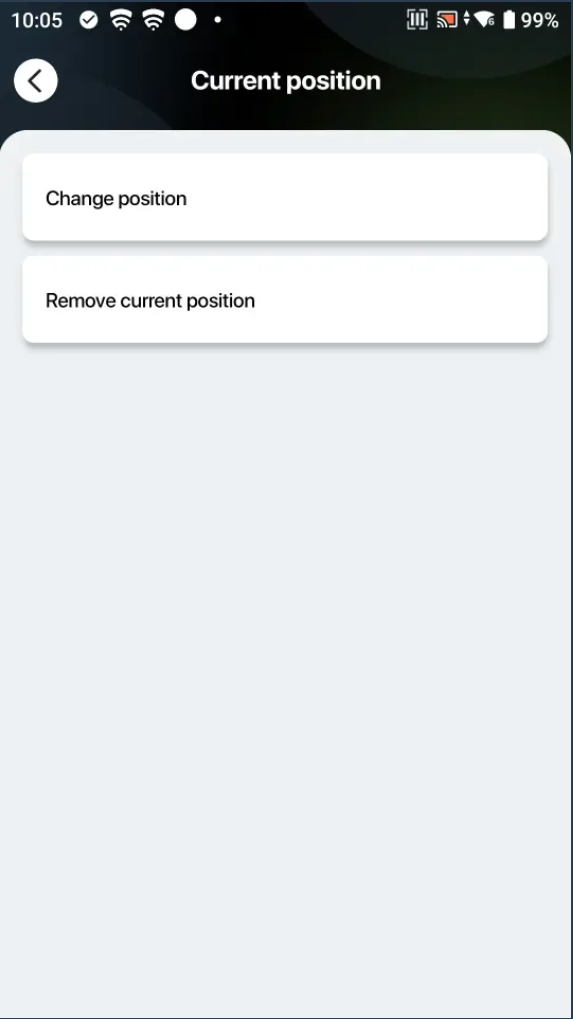

To set position on a display, first, a store plan must be uploaded to Breece Cloud on the installation.
Second, the setting Promt for the position can be set.

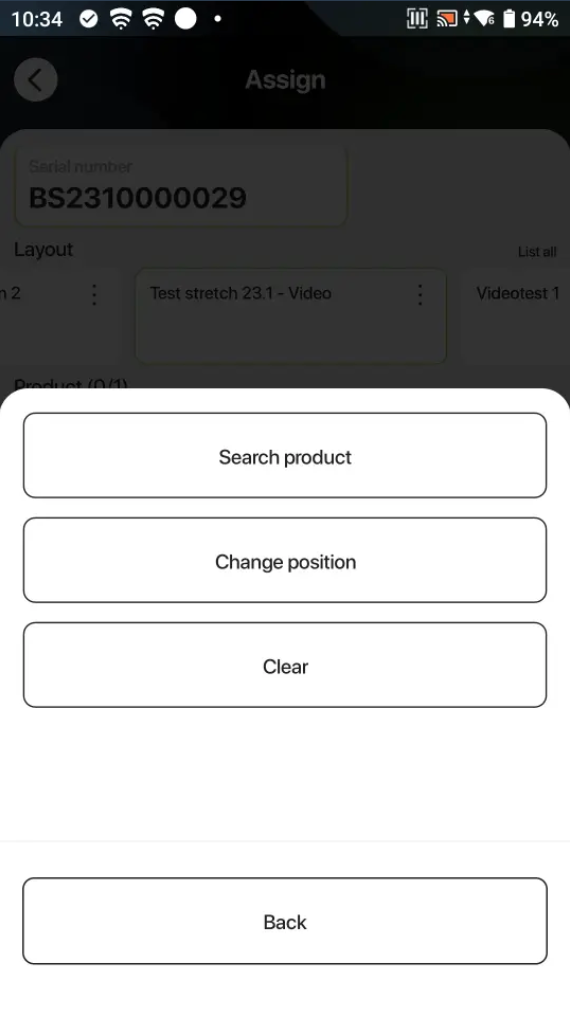

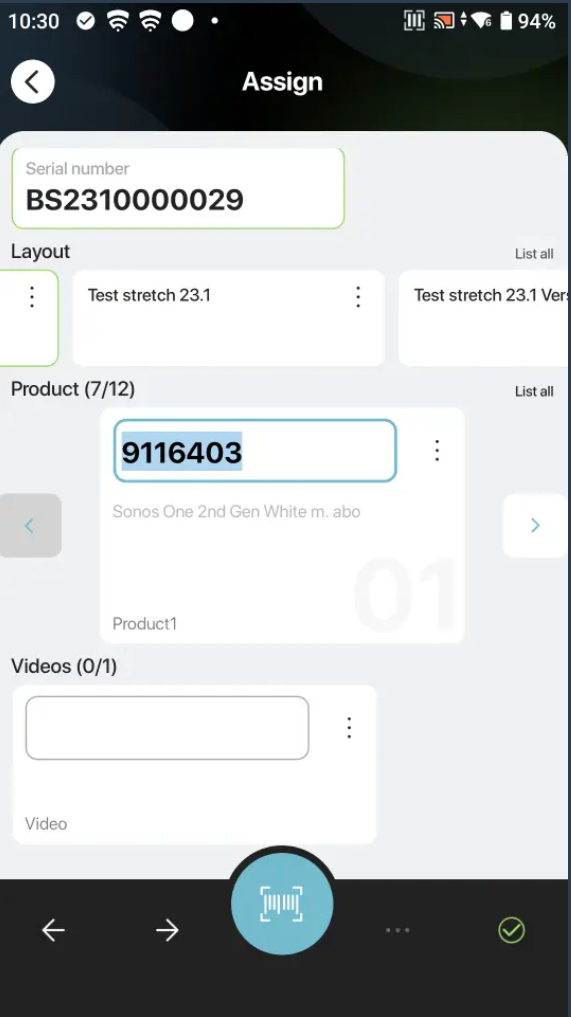

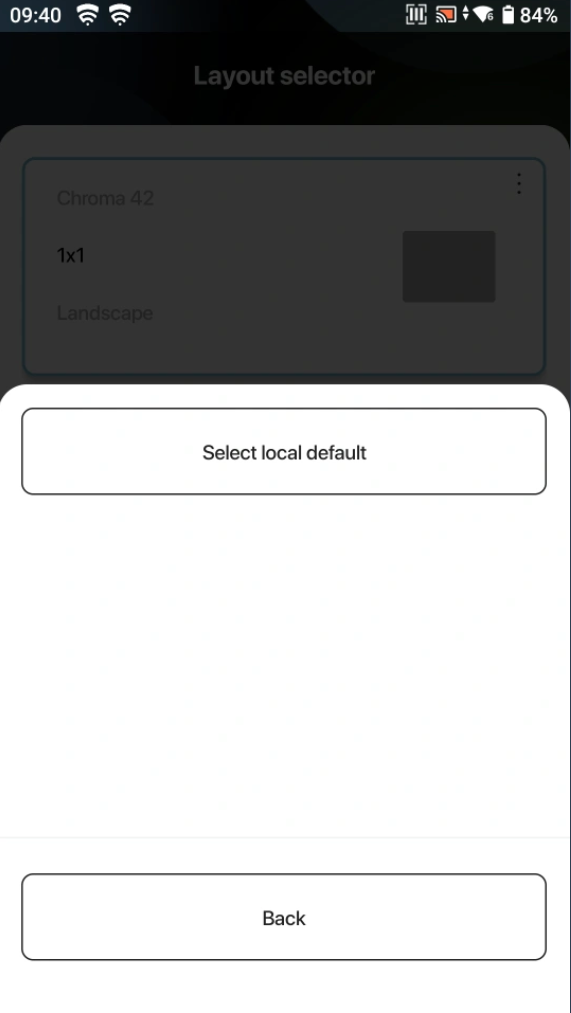

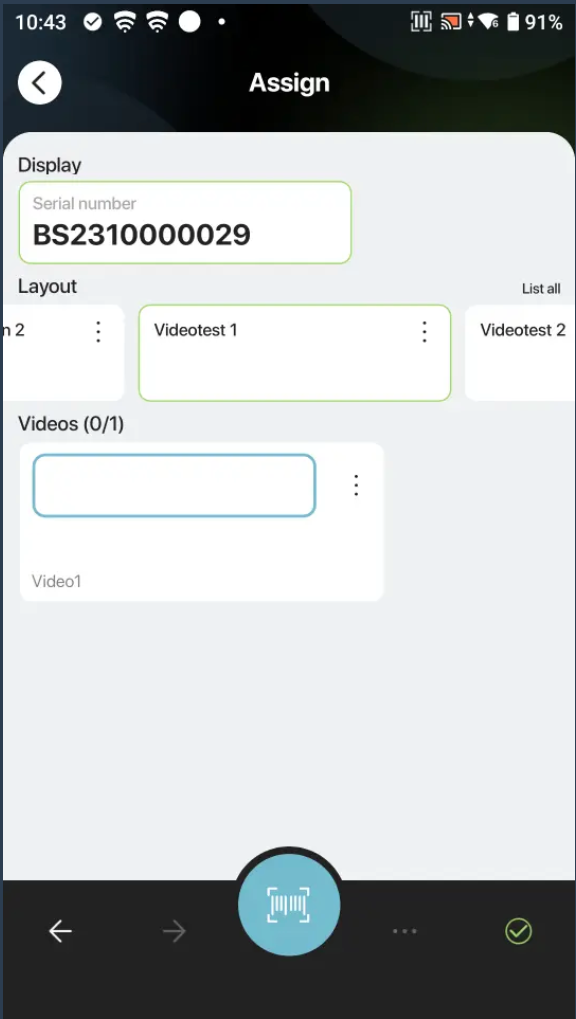

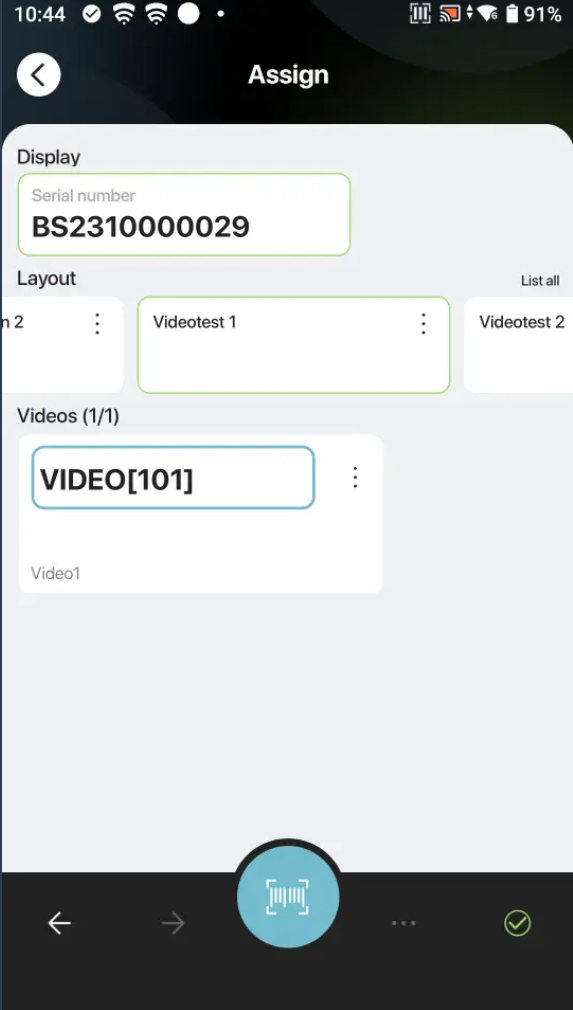

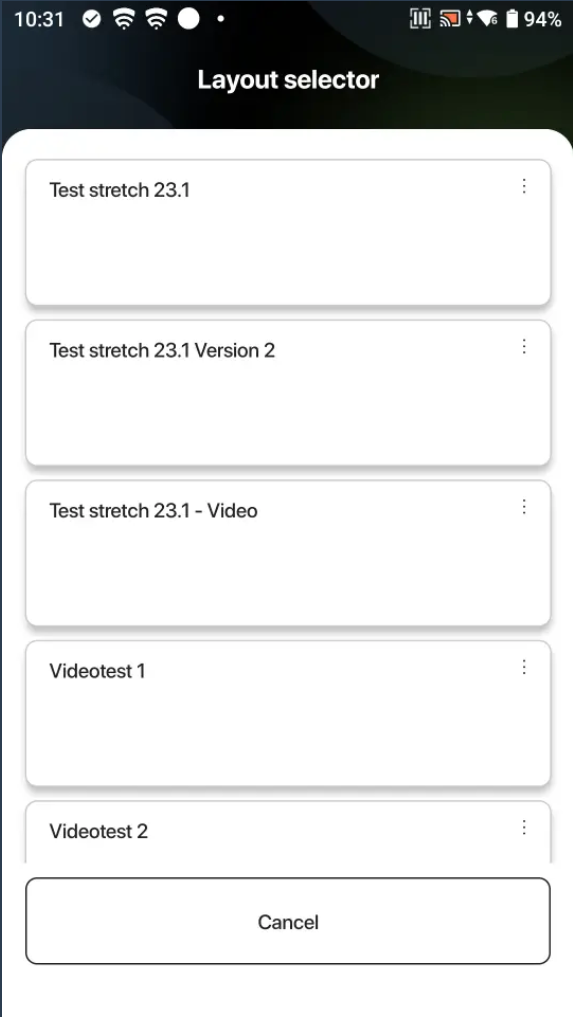

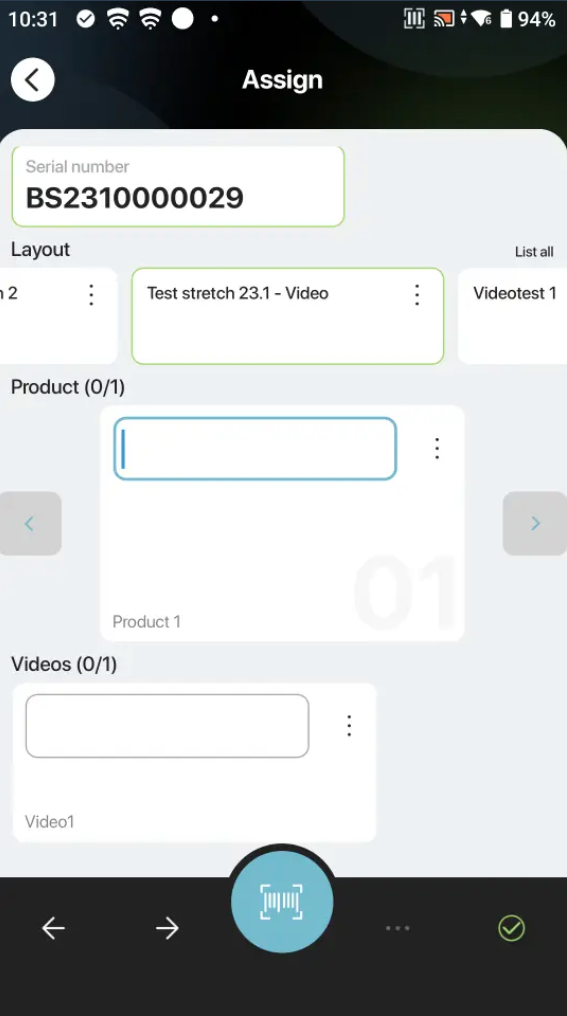

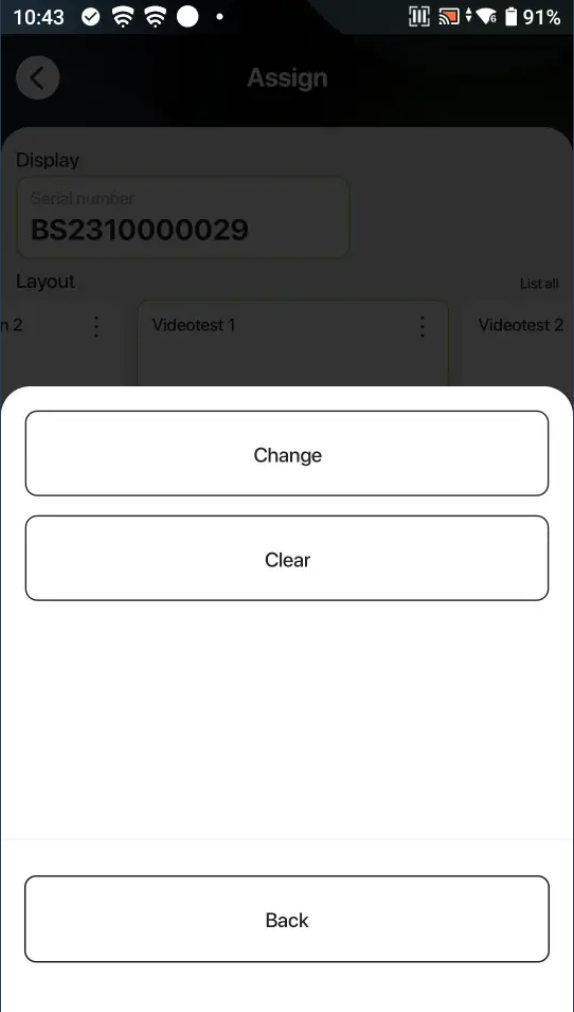

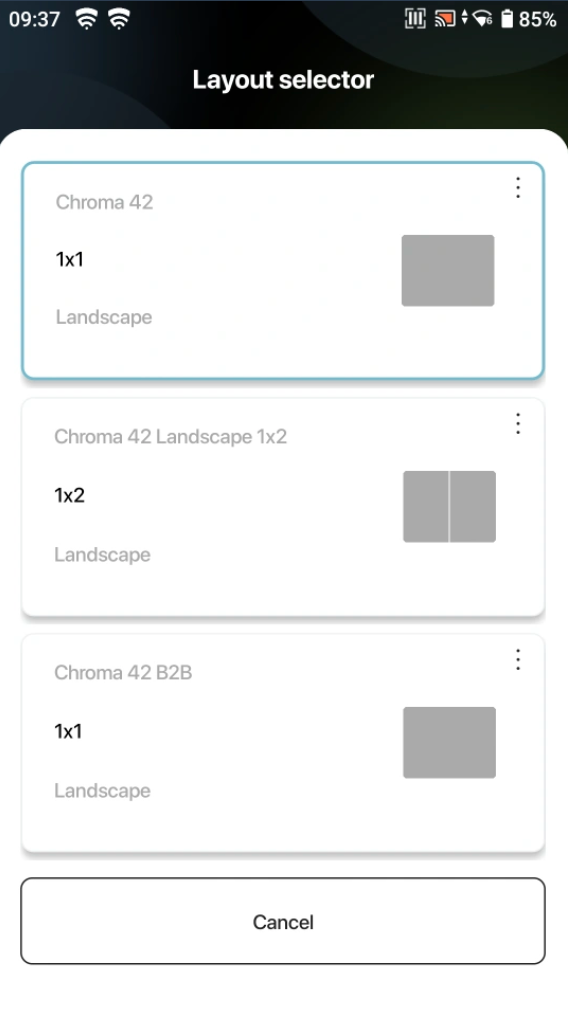

There are allways a default Layout to beused. If there are alternative layouts i is possible to change it on the fly when assigned to a product, by pressing the desired layout.

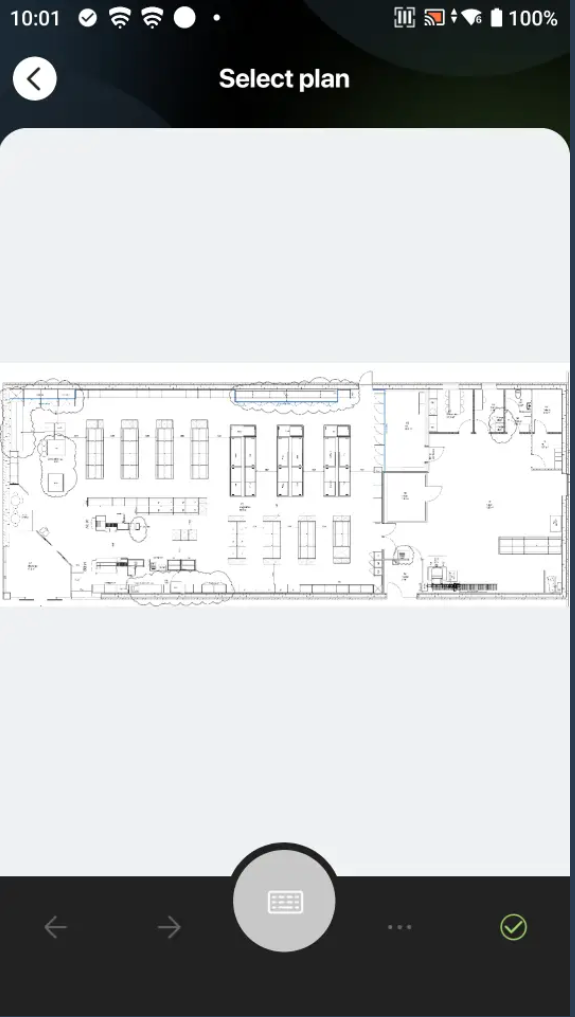

If there are more floor plans than one, choose the one you want to position the display on and mark the position with your finger and hit checkmark on the upper right corner to save it.

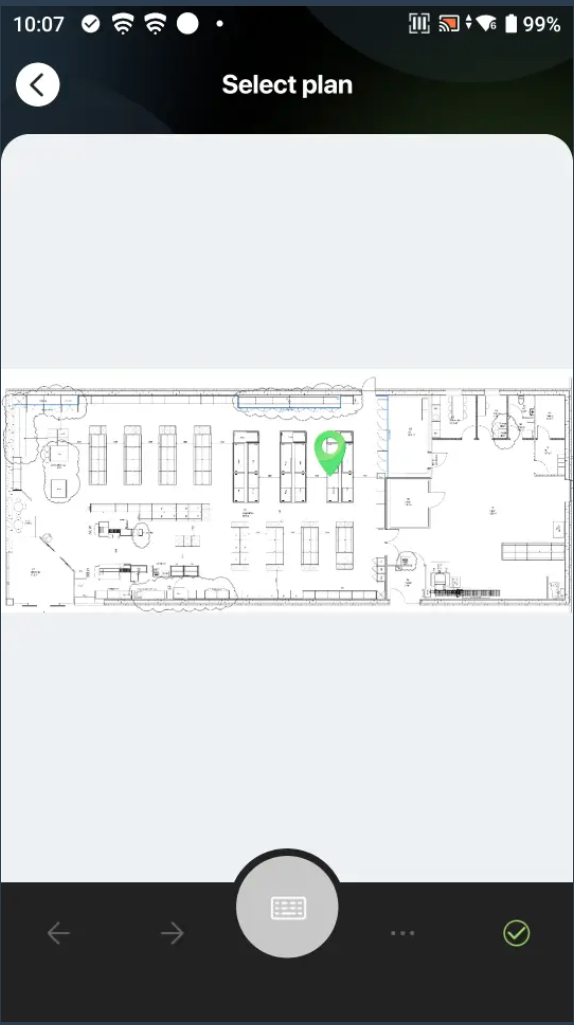

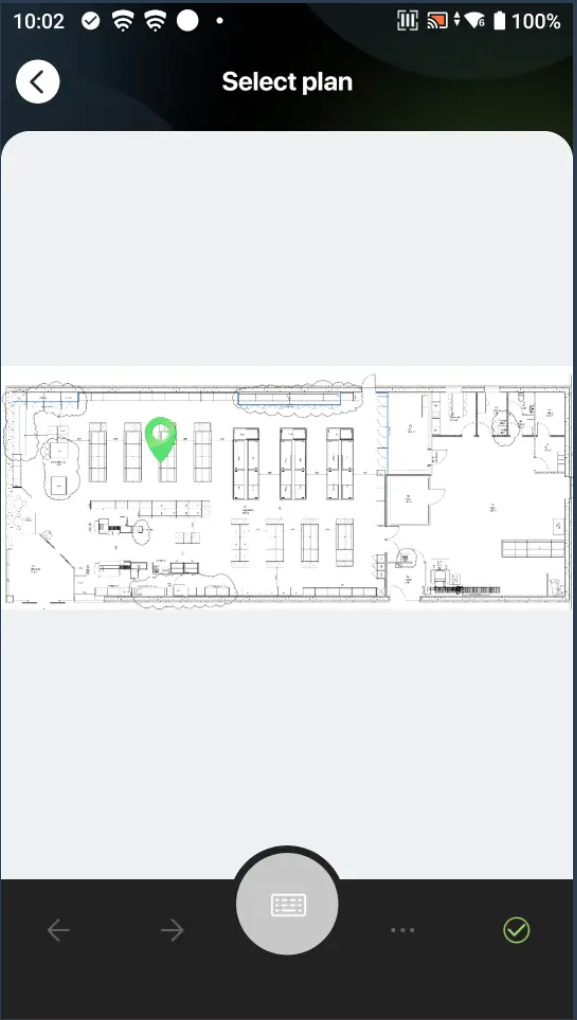

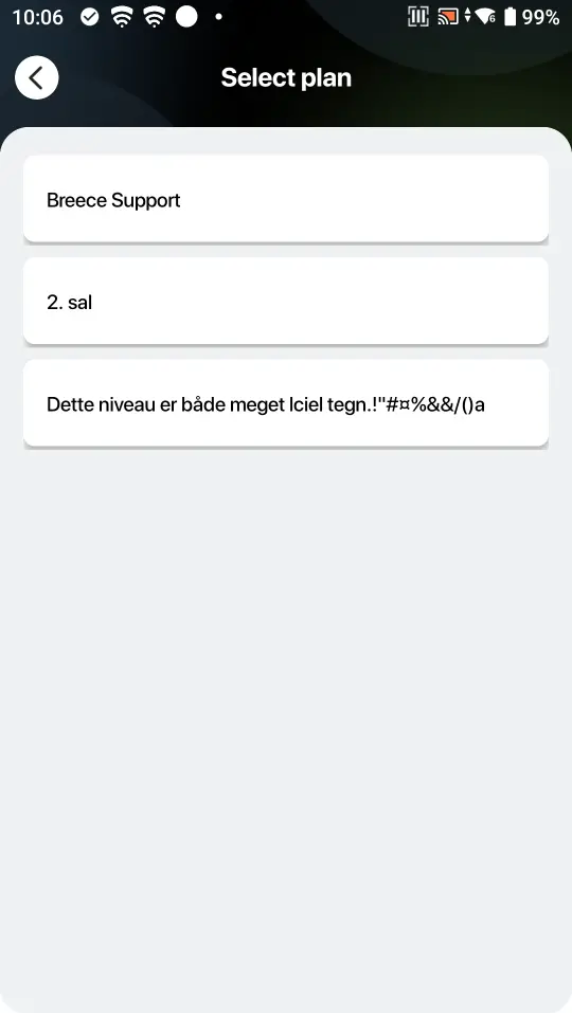

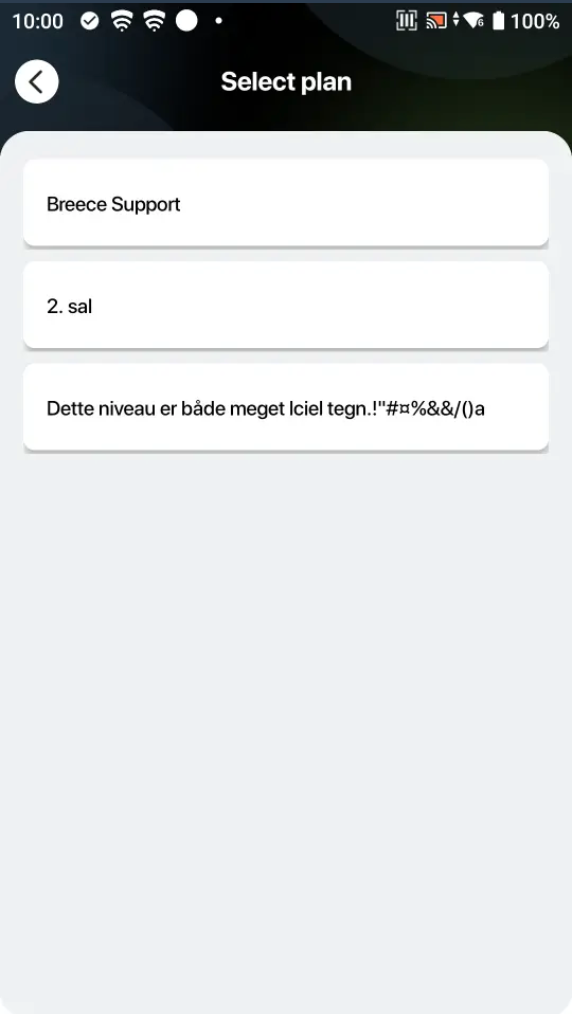

3. Select the floor plan to position the display
4. Mark where the display is and then in the upper right corner checkmark it.

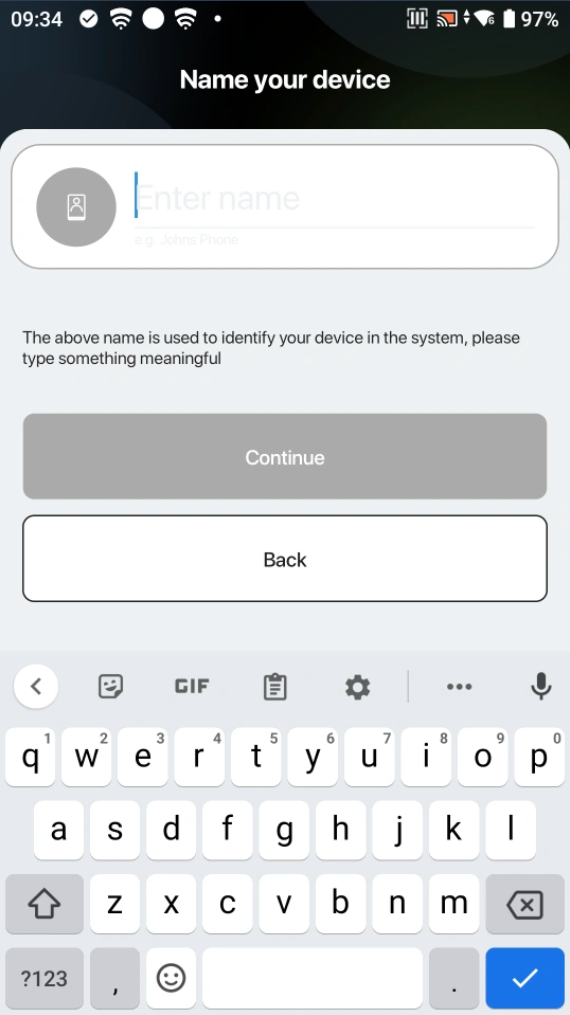

When scanning the login code, you will be prompted to name your app/device, so as to identify it in Breece Cloud

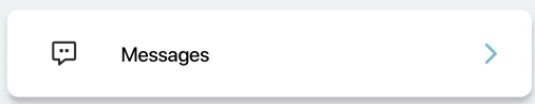

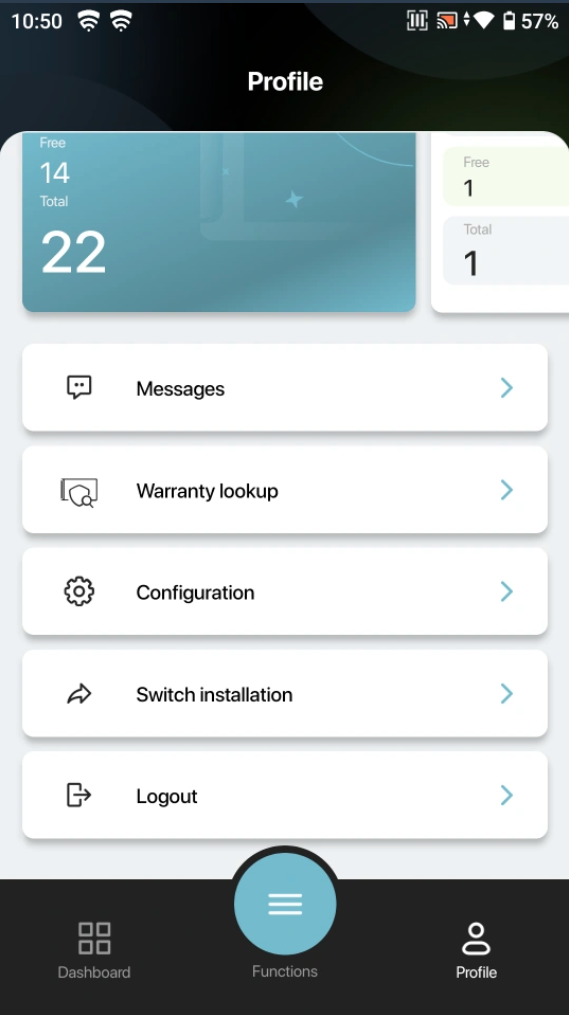

when you see a red dot here it means, there are new messages. Tab to read.
Messages can be system messages with Communicator fallout and import failures,
but also messages sent to the device from Breece Cloud.
By tapping the 3 dots in the upper left corner, it is possible to mark all messages as read.
Subscription of various alerts can be configured in cloud.

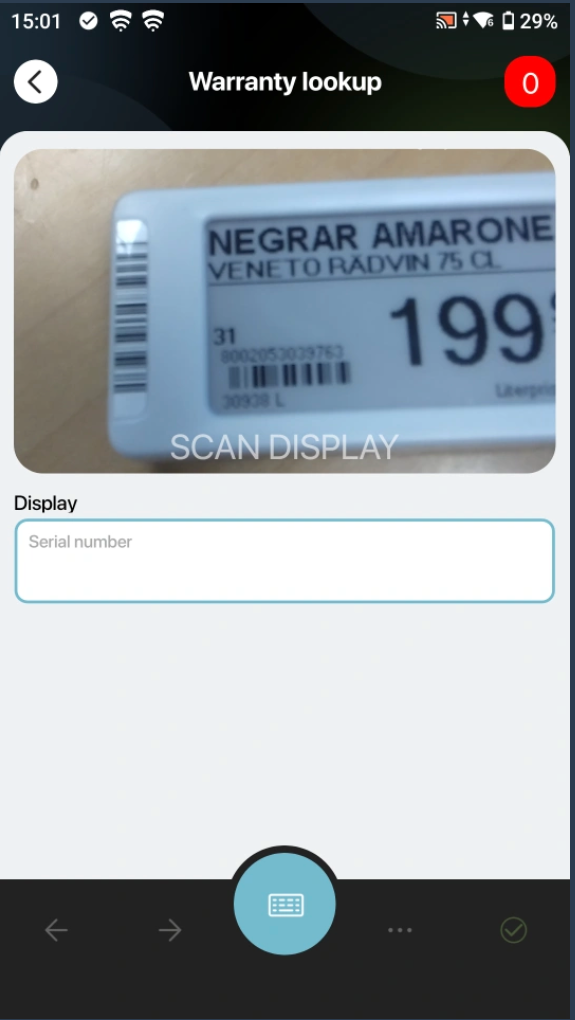

Scan a display's serial number to see warranty information.

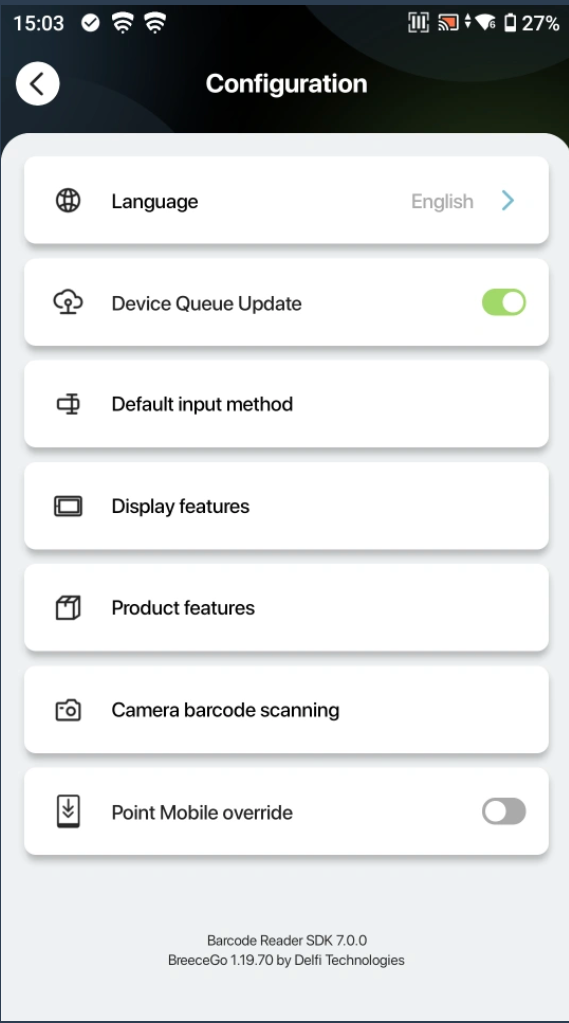

The settings here can either be inherited from the settings from Breece Cloud or the configuration can be set on device.
If the configurations come from Breece Cloud and settings might be locked and not possible to change.
Other can be overridden on the device.

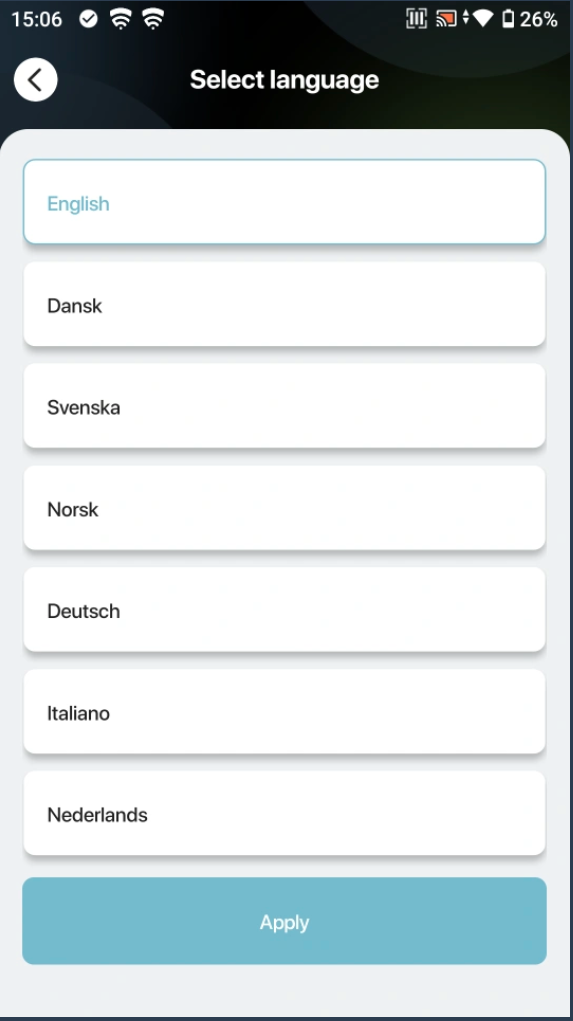

When tapped the available languages to use can be seen

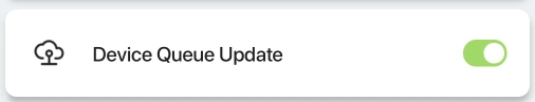

Device Queue Update
When set the Queue information will be updated on the device (Default is enabled)
Hide Insight Widget

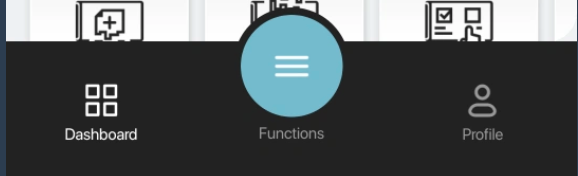

When set, the main center menu disappears and there is a more compact mode of BreeceGo as seen below

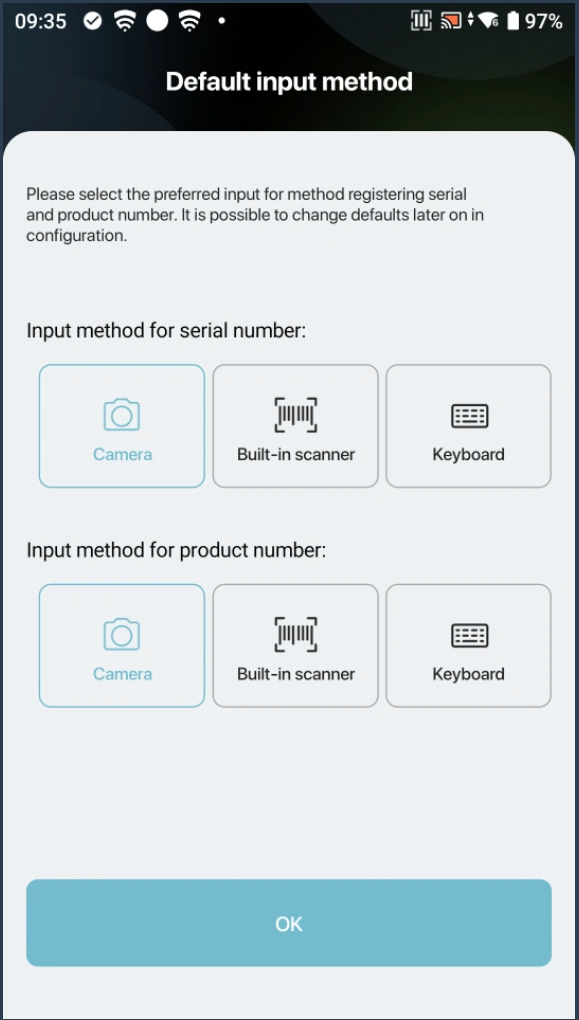

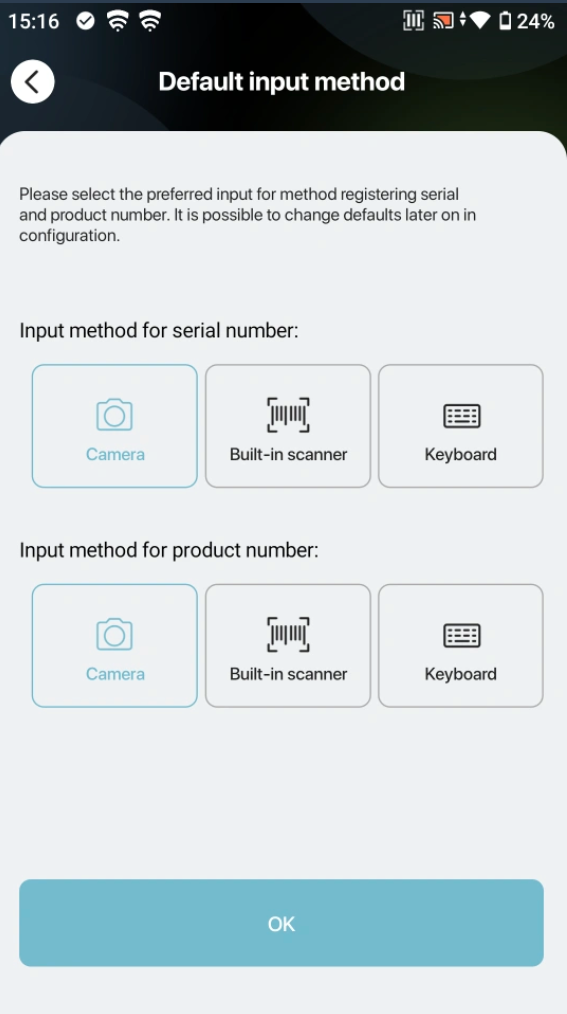

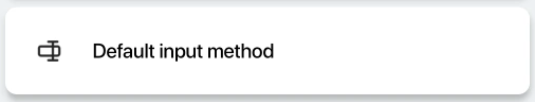

Default Input Method

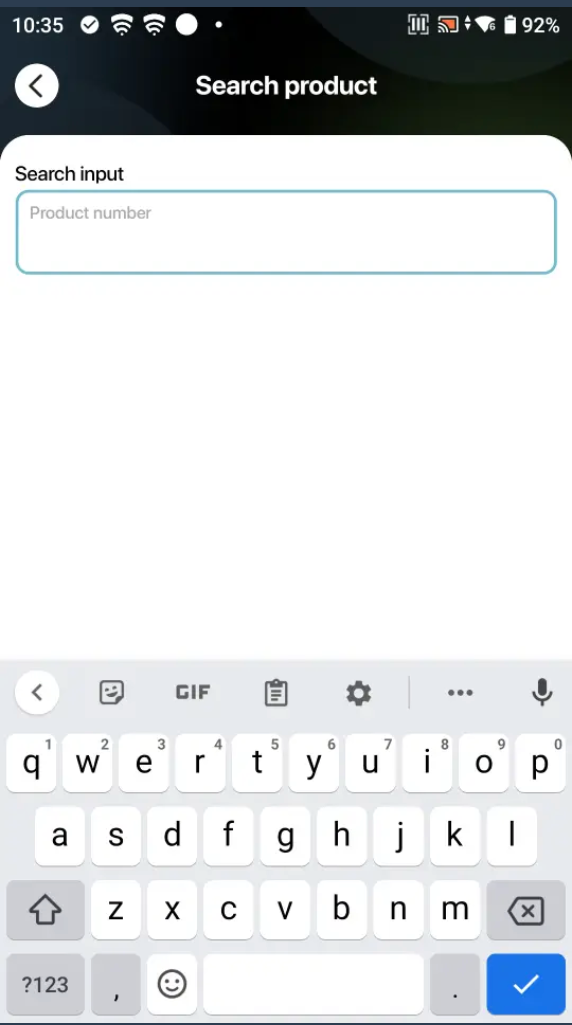

BreeceGo can be used with Keyboard, Laser Scanner, or Camera according to the device it will be used on.
This setting set the default input method.
On mobile phones, the Camera is preferred
On Handheld devices with built-in lasers, the Built-in laser scanner is preferred

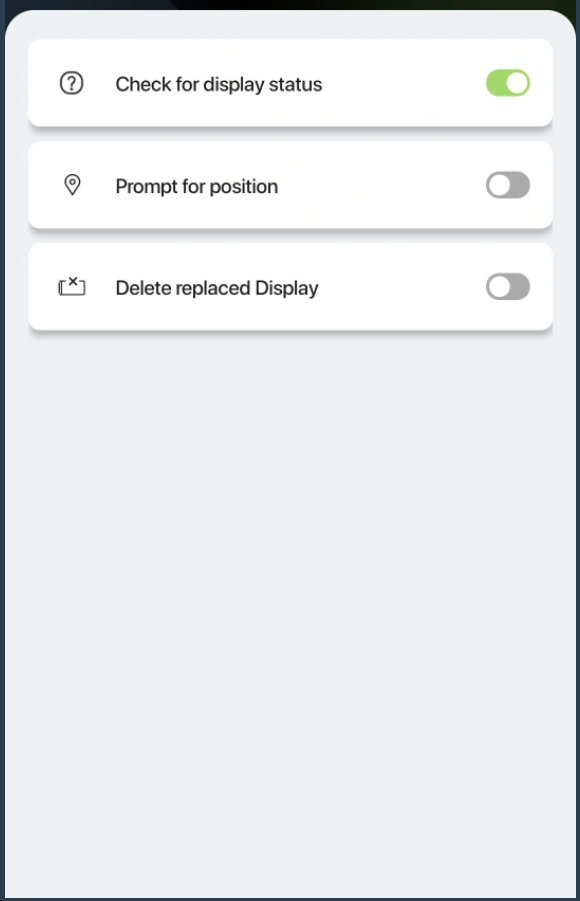

Check for displays status - When enabled this feature will whenever a display is scanend (thats is not OK) - the user will be asked if the user wish to continue with using this display.

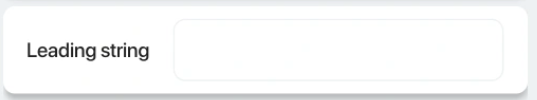

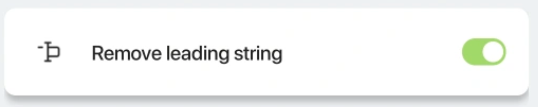

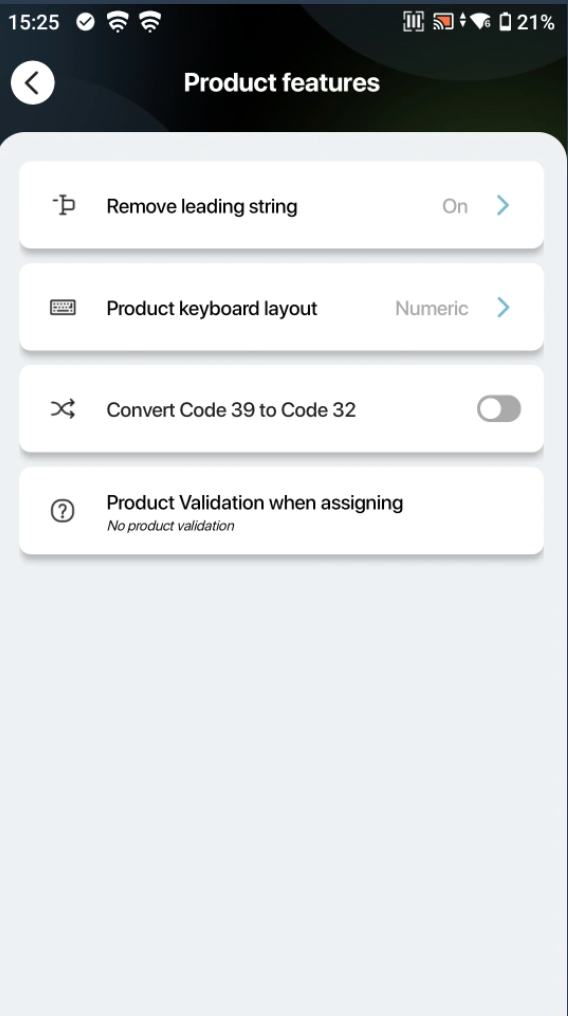

Should be when the user wished a leading text to be deleted from product input when ever this is made.

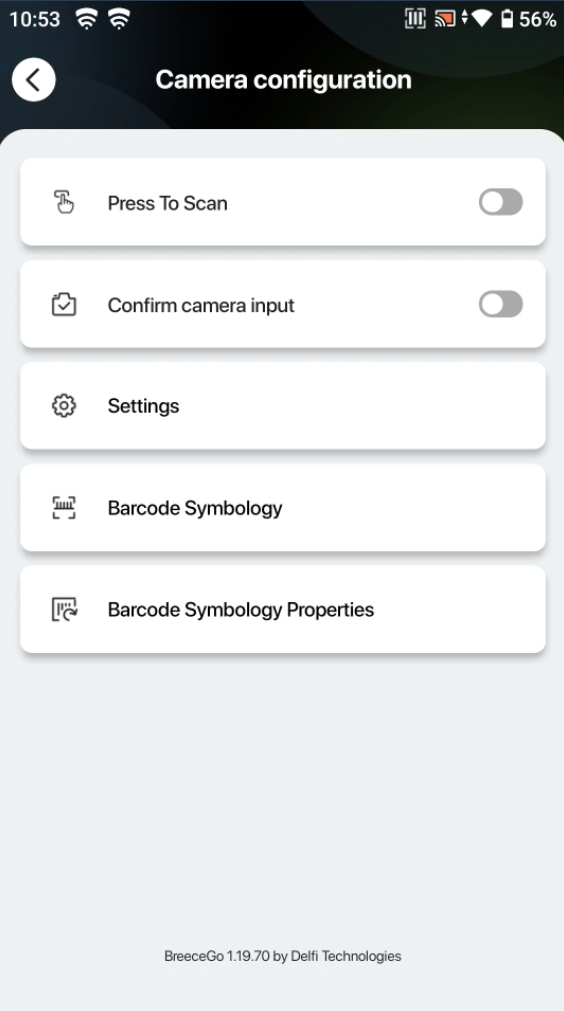

Camera Barcode Scanning
configuration setting for scanning barcodes with the mobile phone's camera.
Press to scan - is the option to tap on the phone to activate a scan.
Confirm Camera input so that you get feedback after every scan made.

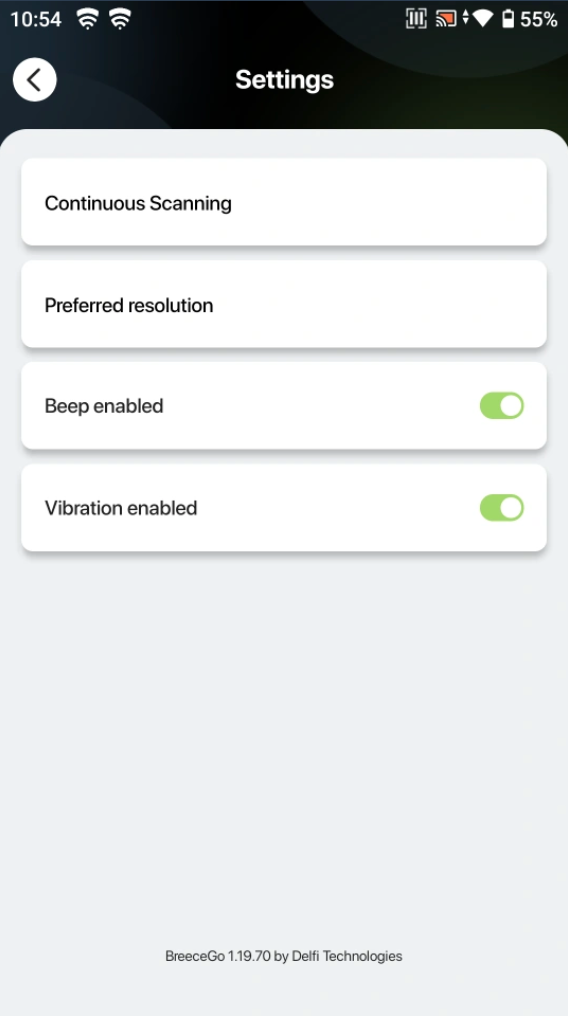

This is the camera and phone settings.
Enable Beep (Sound) and enable Vibration

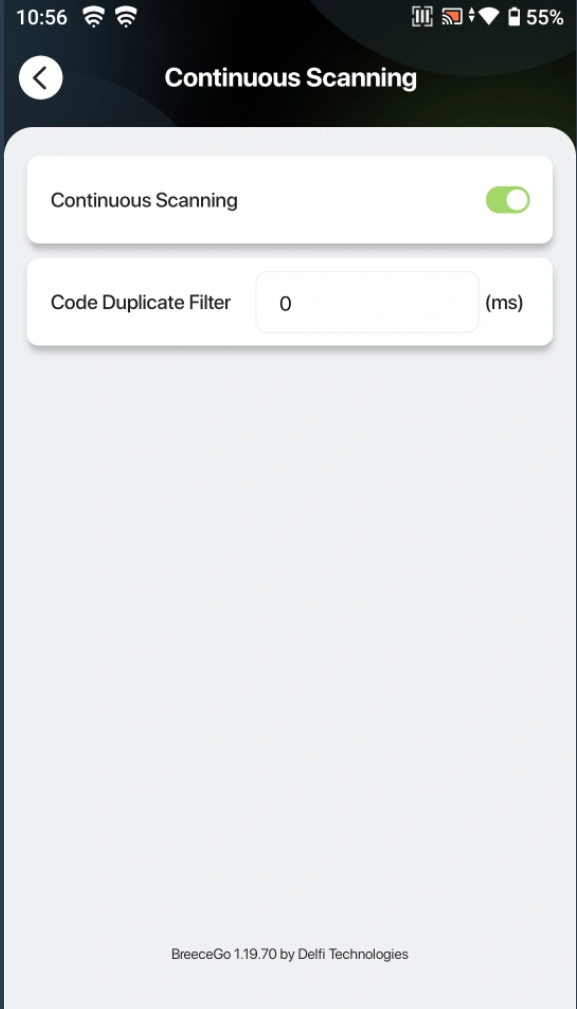

This setting is used to make it easier to continue to scan without interruption.

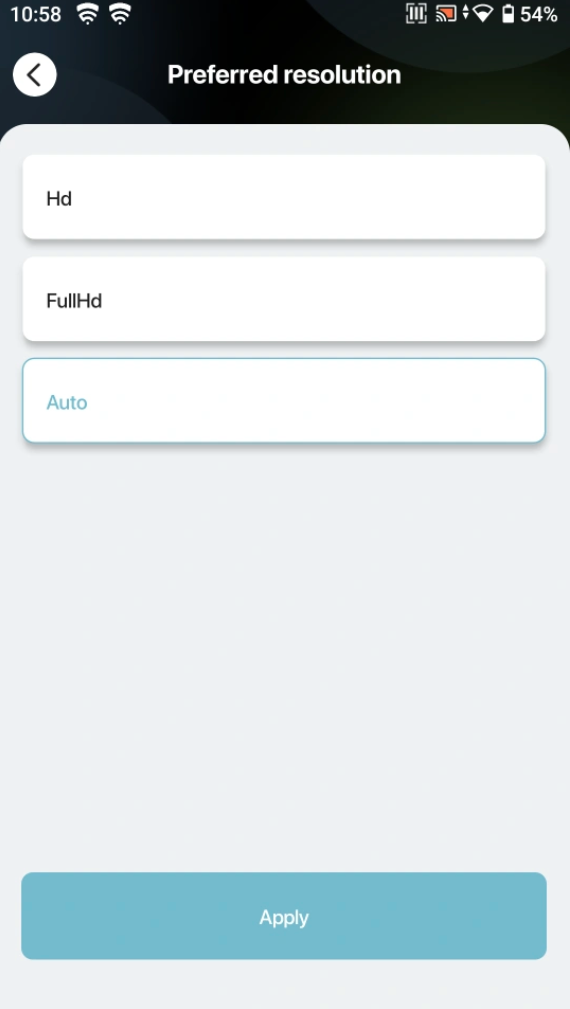

Sets the resolution of the camera.
By default, it is set to Auto. Certain phones can benefit from a fixed resolution.

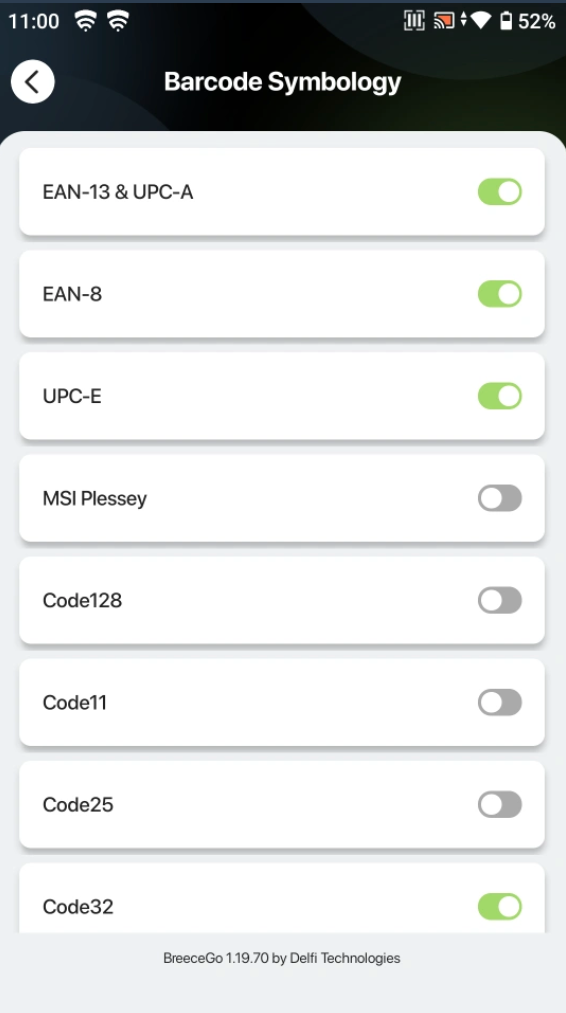

Here all barcodes ( Symbology) can be enabled according to the standards used in certain areas and countries.

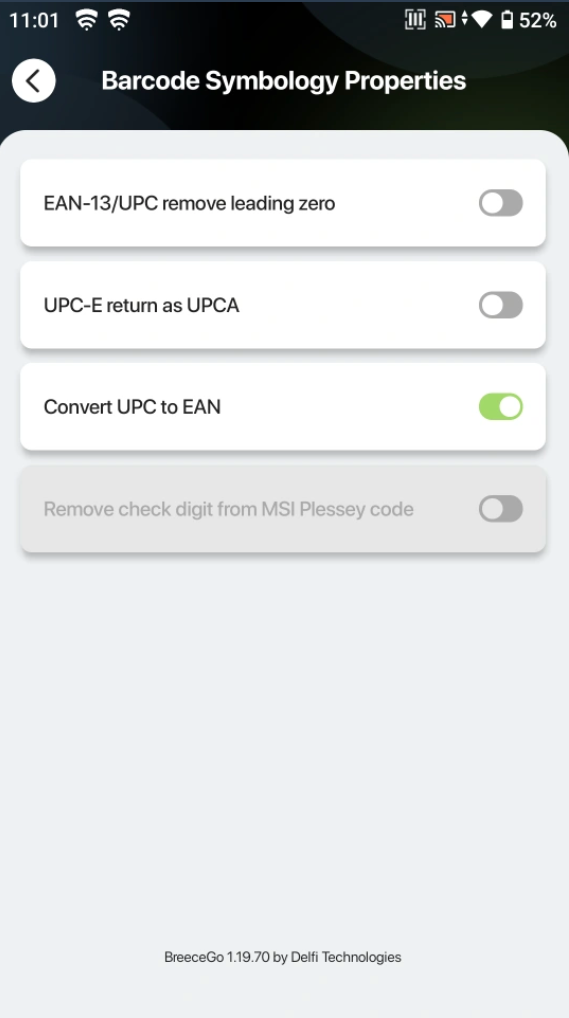

Barcode Symbology Properties
When enabled, the barcode is altered.
Either remove leading Zeros,
Scan a UPC-E as a UCP-A or convert UPC to EAN

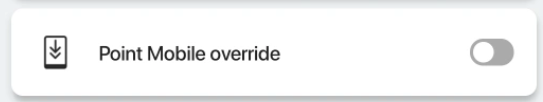

Point Mobile Override
Only for piont Mobile devices.
This option is used when multible app are used on same device but using different scan wedge setting.
When enabled - will make sure scan wedge options are briefly changed to make BreeceGo work and will the returned back to the previous setting when BreeceGo is not in focus or cloced.

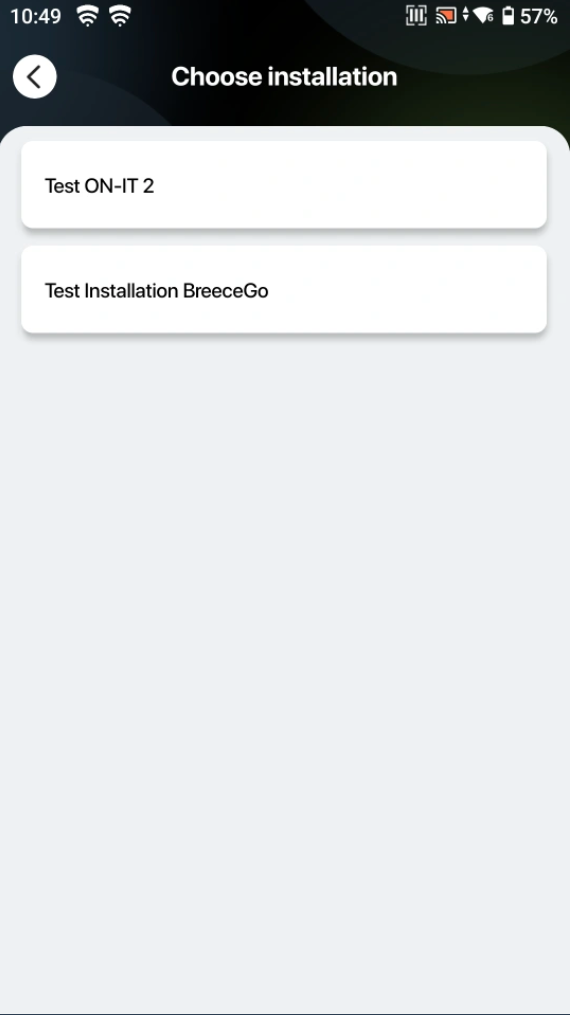

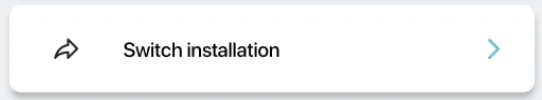

Is not visible unless the BreeceGo User has access to more than one installation.
If there is access to more than one installation,
the installations are shown here and It is possible to switch between those installations.
