Communicators


In the "Communicators" tab you will find a list of all communicator configured on your system.

Administrators can manage the communicatorsto find the communicator you are looking for.


Communicator Type

The Dynamic Communicator(DC) is the control center in the installation.

All communication between the server and the antennas goes through this antenna.

There can only be one DC (Master antenna) on each installation.

You can't delete a master DC.


There will be Range Extenders in your installation when one DC can't cover the whole installation area.


Section A: This will explain where to find the Dynamic Communicator Antennas on your Cloud system and give insight on how to troubleshoot if they are offline


The Antennas page

To find your antennas, navigate to your Cloud system and look for the antenna icon on the blue top action bar:

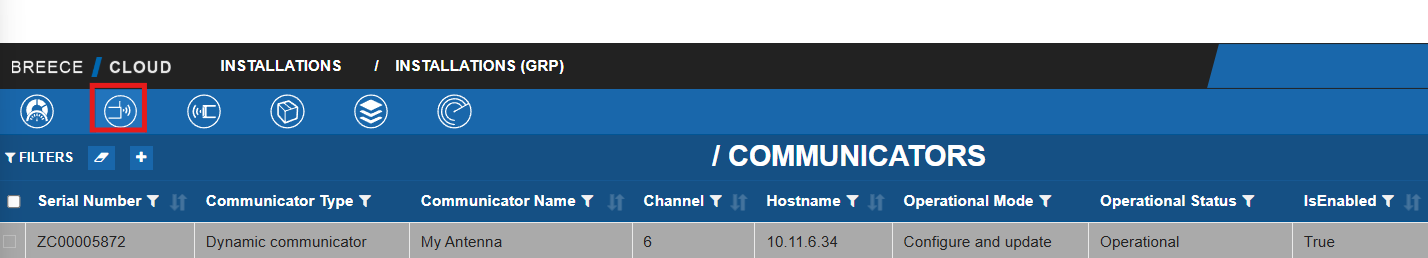

On the Antennas page, you will see a list of the communicators currently on your system with following fields a shown:


Serial number :This is the number of the communicator.

Communicator Type - This indicates if the antenna is a Master or Range Extender.


Communicator Name - This is customizable and can be renamed to match a location in the store


Channel - It's important for Communicators close together to not share the same channel. If they do it can cause the communication between the antenna and display to be unstable.


Hostname - The local Ip address of the antenna. In some special cases , this hostname can be changed if the user has their own enterprie cloud system.


Configured Hostname - By default, the Ip address of the antenna. This will be the same address until unless the user configures and connects to their own cloud system .


Configuration Mode - This determines which antenna is used for configuring new displays and should always be set to Configure and update for the master/dynamic antenna and Update only for Range Extenders


Operational Status - There are 3 states: Operational, Initializing, and Disconnected.

  • Operational means the antenna is online and working as intended.
  • Initializing means the antenna is either starting up and waiting to become operational (can take up to 5 minutes), or the antenna has entered the display resynchronization phase (more about that later).
  • Disconnected means the antenna is not communicating with our servers. Common causes are no internet connection or no power.
  • Always verify that the green dot is constantly lit on the antenna.
  • See picture below:




Serial Number - The serial number can be found on the front and on the back of the antenna

when the plastic slider is taken off (see pictures below)

OrangeDot -The orange dot indicates when antenna is the Master antenna




Section B: This section explicitly describes the difference between an 'User' , Super user and an 'Admin' in different tools in the installation.


Log in as an User who can only read and cannot edit an installation and open an another window where you log in as Admin who has access to the system- read and edit.

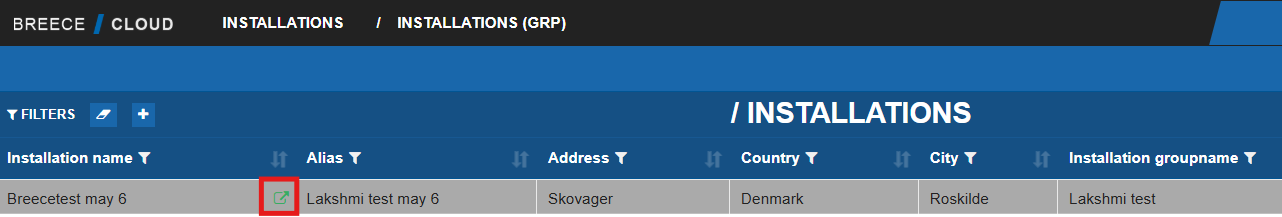

1. On the system navigation bar (Black), select an installation and click on the green square as shown in the screenshot below.


 An user can only see Installation/Installation group' (Black bar)

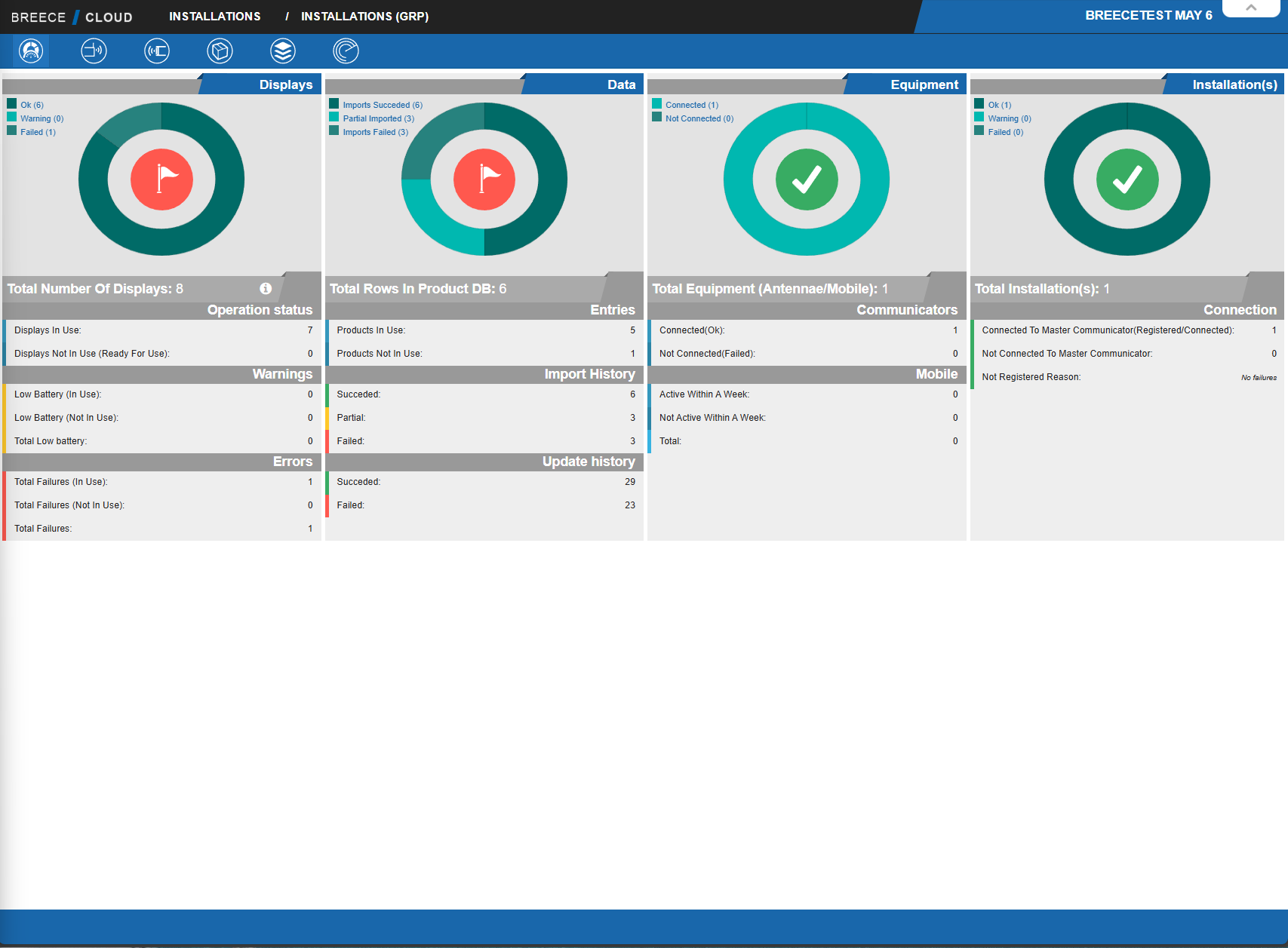

2.User:  A new window opens with 'Installation/Installation group' (Black) along with an installations Navigation bar (Blue)  with

1. This Installation

2. Communicators

3. Displays

4. Products

5. Jobs

6. Positions


Note: An user cannot see the 'Details about the License and Connections details.




Super User:

Log in as an User who can only read and cannot edit an installation and open an another window where you log in as Admin who has access to the system- read and edit.


1. On the system navigation bar (Black), select an installation and click on the green square as shown in the screenshot below.


 An user can only see Installation/Installation group' (Black bar)



A new window opens with 'Installation/Installation group' (Black) along with an installations Navigation bar (Blue)  with 2 more functions available on the blue bar in addition to the user : Mobile and Configuration.



Admin:  A new window opens with 'Installation/Installation group' (Black) along with an installations Navigation bar (Blue)  with


1. This Installation

2. Communicators

3. Displays

4. Products

5. Jobs

6. Positions

7. Vision 4k Options

8. Mobile

9. Display Maintenance

10. Configuration

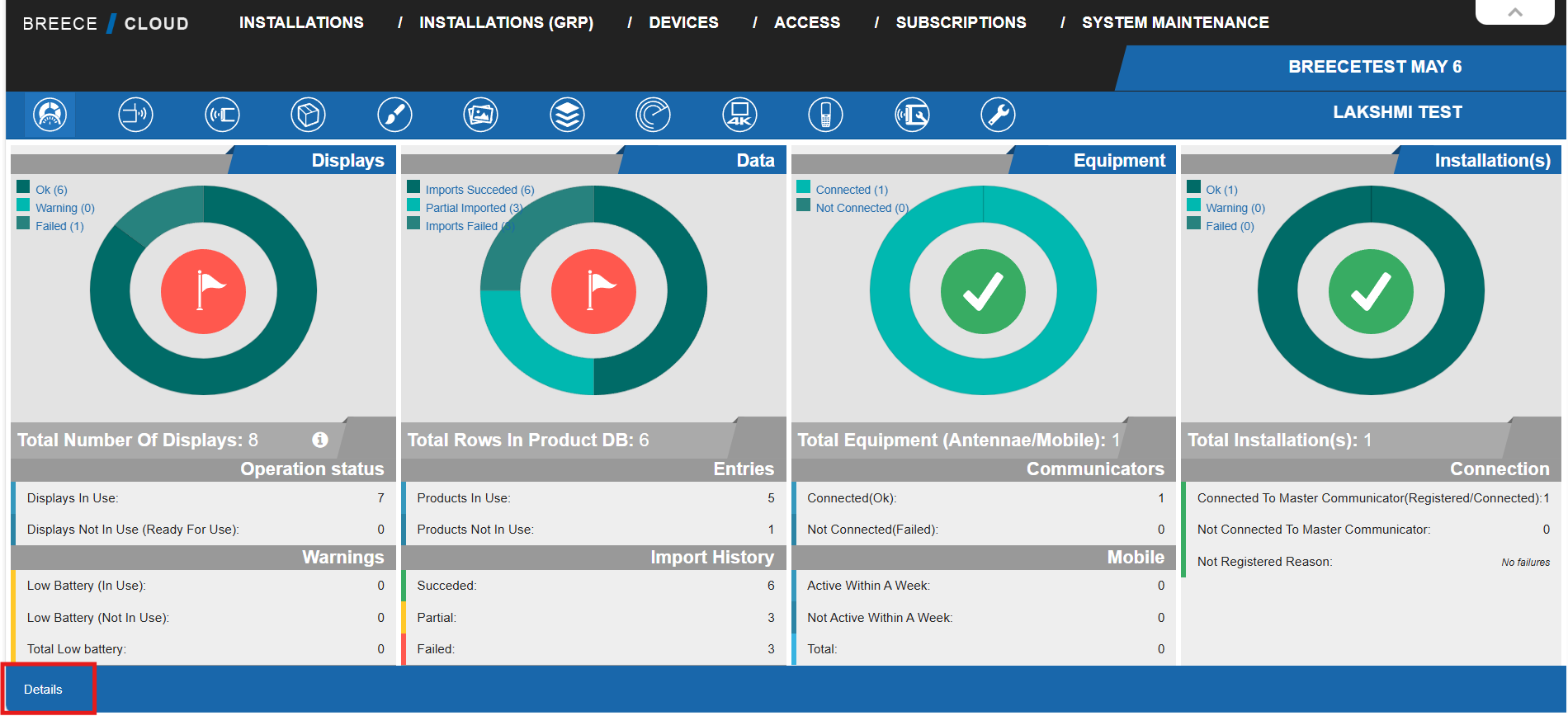

Note: Details in the bottom left corner of the page


Click on the 'Details'

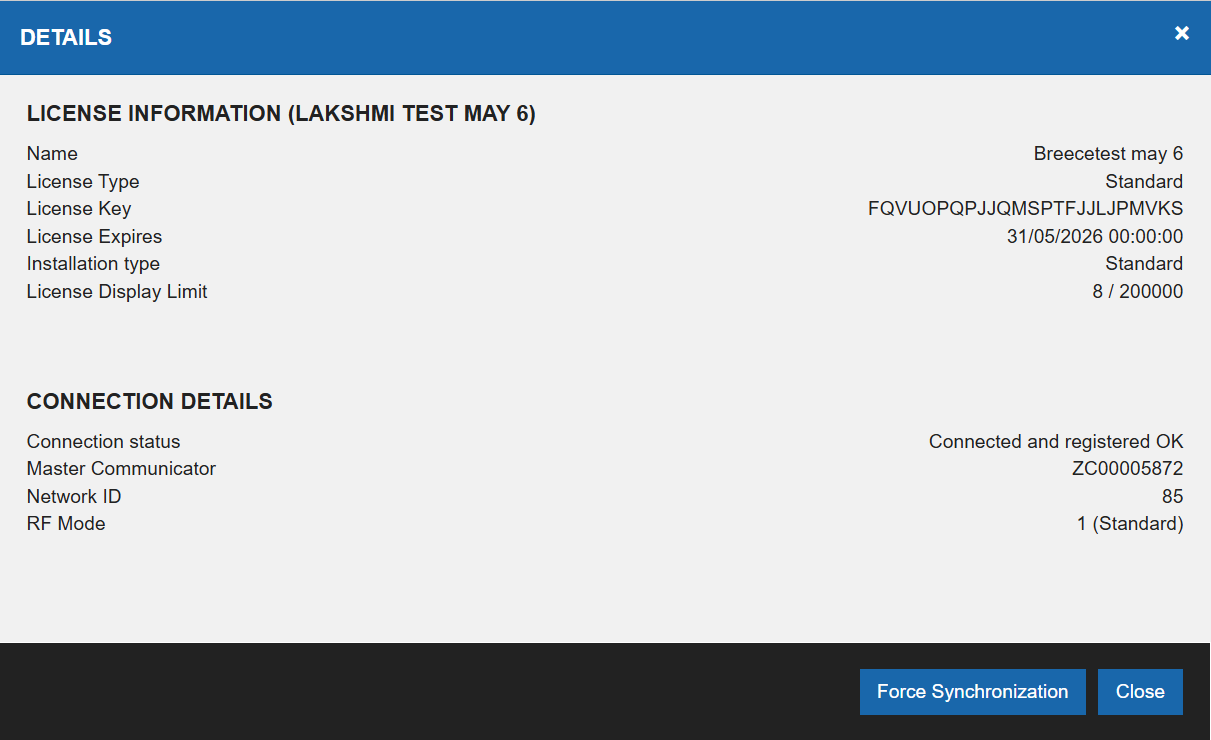

Opens a new window with all the details about the License and Connections details.



Communicators:

User:

  • Click on the icon.

Shows details of the communicators.

Note: User cannot access different functions like an Admin can.

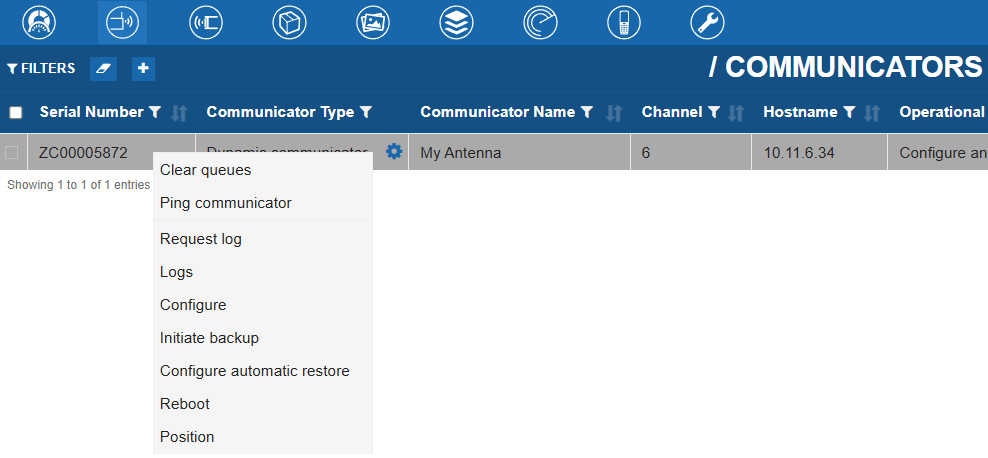

Super user :

 Has access to different functionalities with regards to Communicators.


Note: Replace and Disconnect are functionalities that cannot be found if you right-click and cannot be accessed by a super user.




Admin: Has access to different functionalities with regard to Communicators


Communicator actions :

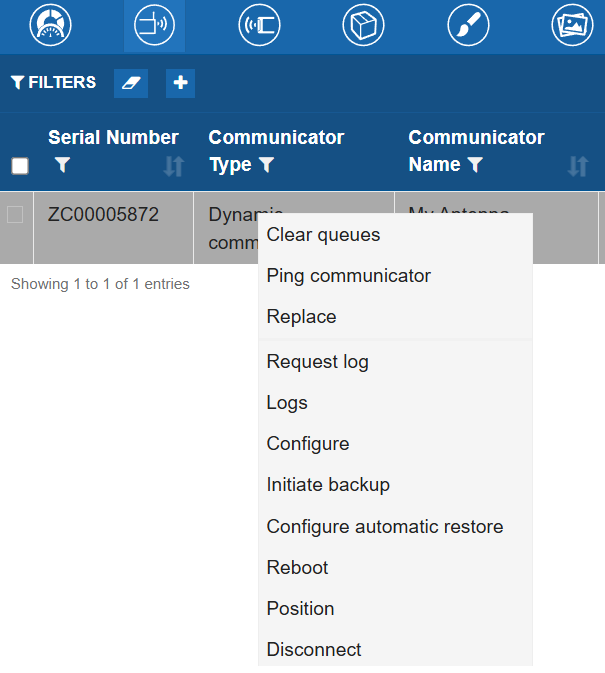

  • Right-click on the master antenna,

You will get a menu with all the actions available with this antenna.

All the actions shown in the picture below will be described below.


 Clear Queues:

  • This function is used to send a command to the antenna.
  •  It clears the jobs that are not running as intended.





Ping Communicator:

To see if the antenna is online,

  • Click on the 'Ping Communicator'.


A small window opens as shown below.

  • Click 'Start pinging'.


  • Disconnect the Ethernet from the antenna.

Check the 'Operational status'  changed to 'Disconnected'


  • Right click on the 'Operational status'.
  • Click on the 'Ping Communicator'.
  • Click on 'Start pinging'.

It starts pinging the communicator and shows the message shown below.

  • Click on 'Stop pinging' and close .

Antenna OK: Antenna is "online"

Antenna  No response: Antenna is "offline"


Request Log:

Note:  Admin and Delfi support team use this function.

  • Click on the 'Request log'.

A pop-up window opens as shown below.

  • Click 'OK'.

 Confirms the request.



  • Click 'OK'.

 Reconfirms the request.


 Configure:

This is a function that helps the user to change the fields marked in red and save.


Note: If Auto discovery mode is not selected, then the user must fill the field manually.

Initiate backup:

Note: Only for system admin and Delfi support team.

This function helps a user to initiate backup.

  • Click on 'Initiate backup'

A dialog box opens as shown below

  • Click 'OK'


Confirms that backup has been initiated.


Configure automatic restore:

This function helps the user to restore the data in the communicator .

  • Click on 'Configure automatic restore'.

A new window opens as shown below.

  • Choose the file
  • Check the box - Automatic restore mode.
  • Click on 'Save'.

A pop-up window opens shown below.

  • Click 'OK'.

Reboot:

This function helps to restart the antenna.

  • Click on 'Reboot.

A small pop-up confirms that Reboot is successful.


Position:

This function helps the user to set the position of the antenna,

  • Upload a floor plan of where an antenna is exactly located.

User can also remove position .

  • Click on 'Remove position'
  • Click on 'Reset'
  • Assign a new position on the same floor plan.


Add a new plan under 'Positions'

  • Go to positions.
  • Click on 'plans'.


Opens to a new window.

  • Click ' New plan' at the bottom tool bar .

Opens a new window with 'Create Plan'.

  • Fill out the fields
  • Choose the floor plan
  • Click 'Save'


Reset a new position under 'Communicators':

  • Go to 'Communicators'
  • Click on the <Operational>
  • Click on the < Position>
  • Click on the dropdown list under '/Select plan'.

User can see the old plan and the new plan.



Floor plan 2 is ready to set the position.

  • Click 'OK'

Position is changed successfully.


Alternatively, follow our more detailed antenna troubleshooting guide:

https://support.breecesystem.com/a/solutions/articles/14000122187?lang=en
