With the Assist application, you can manage your Breece cloud system and have easy access to Breece Cloud resources like product information.


How do I get the Breece Mobile Assist app?

The application is available for Android and you can find it on Google Play.

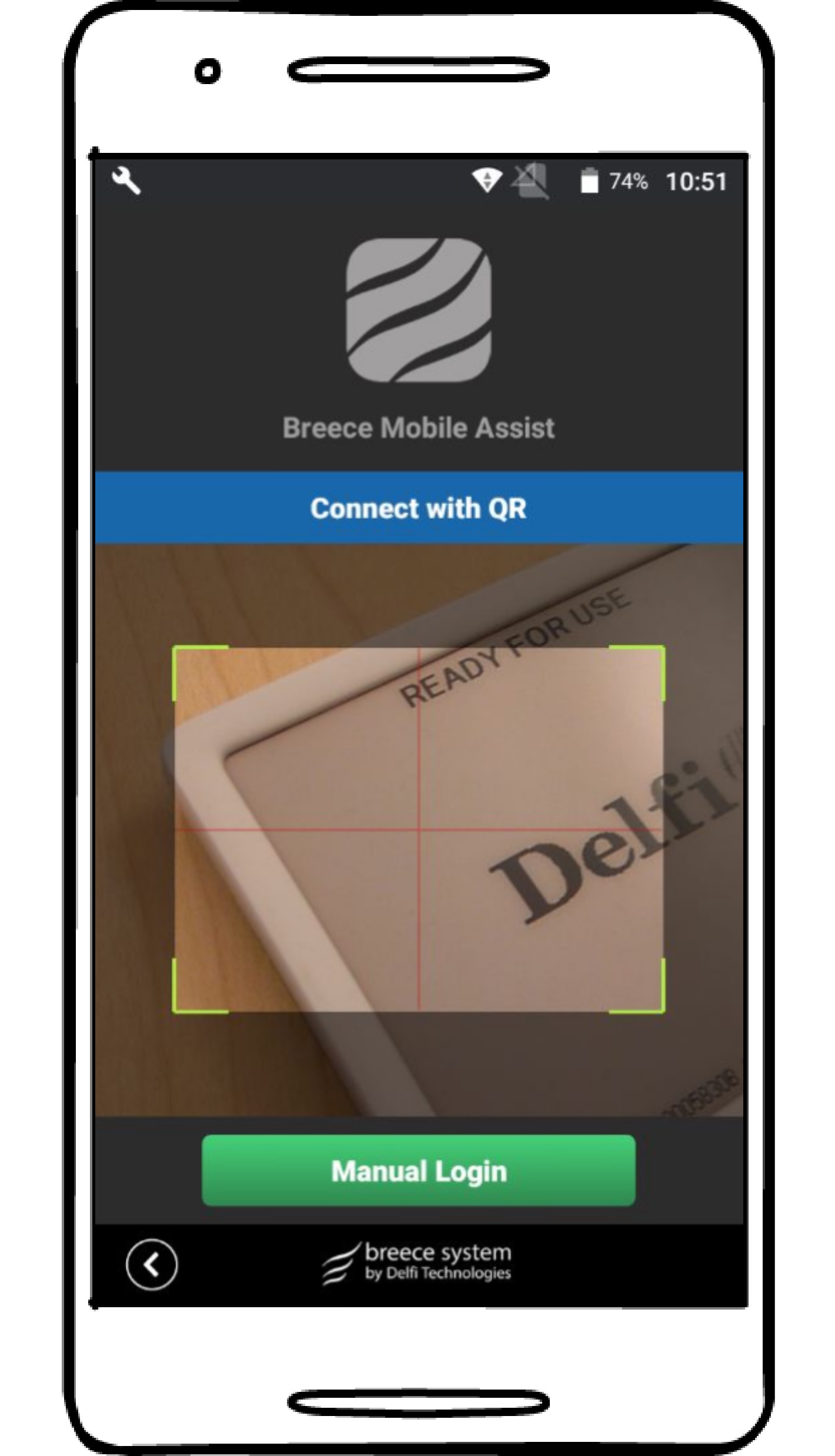

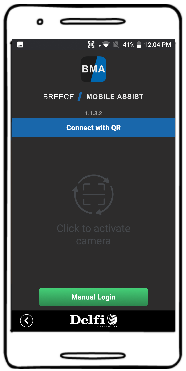

Login

  1. Scan your QR code to log in.
    • If your service user has access to multiple installations you need to select installation to enter Breece Mobile Assist.
  • You can use the "Manual Login" button to log in without a QR code.
note: If you don't have a QR code contact Breece Support

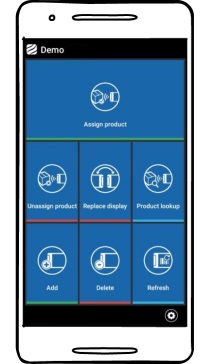

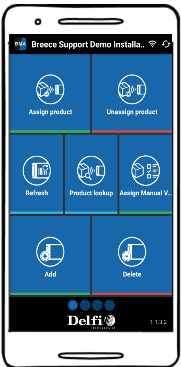

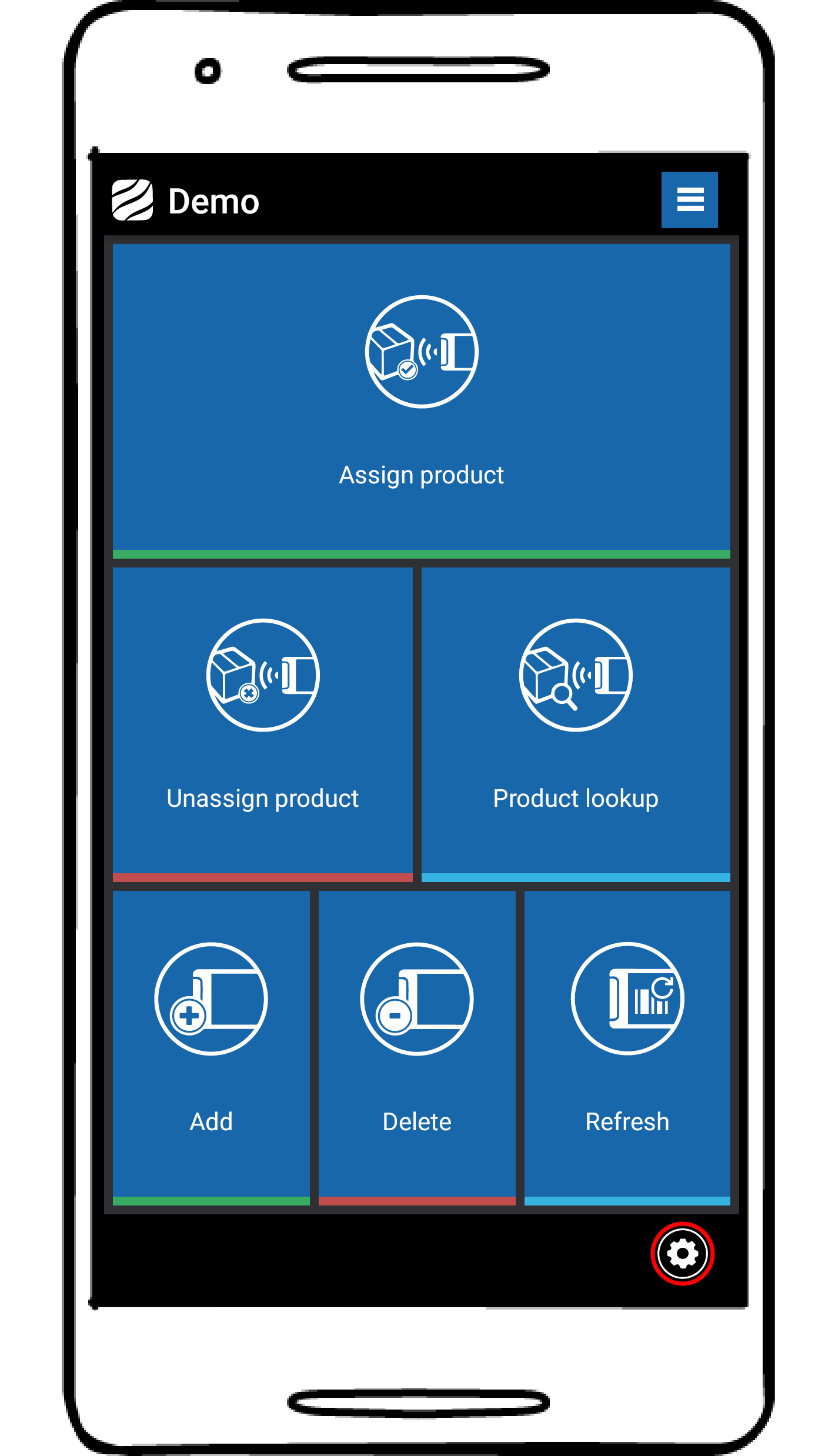

Main screen


On the main screen, you will see all the assist actions.

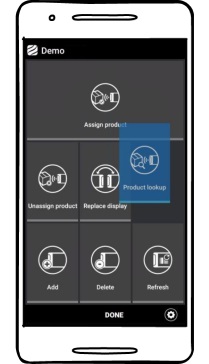

You can rearrange the menu tiles on the main screen by click and holding a tile for 5 seconds. Now the tiles will change color to gray and you can move them around and arrange then to sooth your need. Move them around by holding and moving your finger.

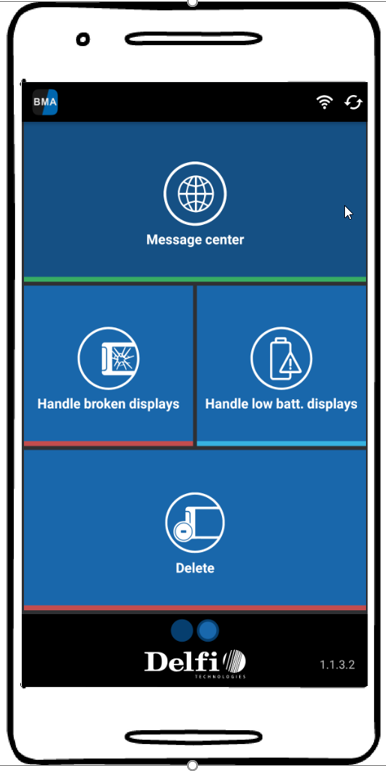

Message Center

In the Message Center, you can find information on all your activities with Breece Mobile Assist.

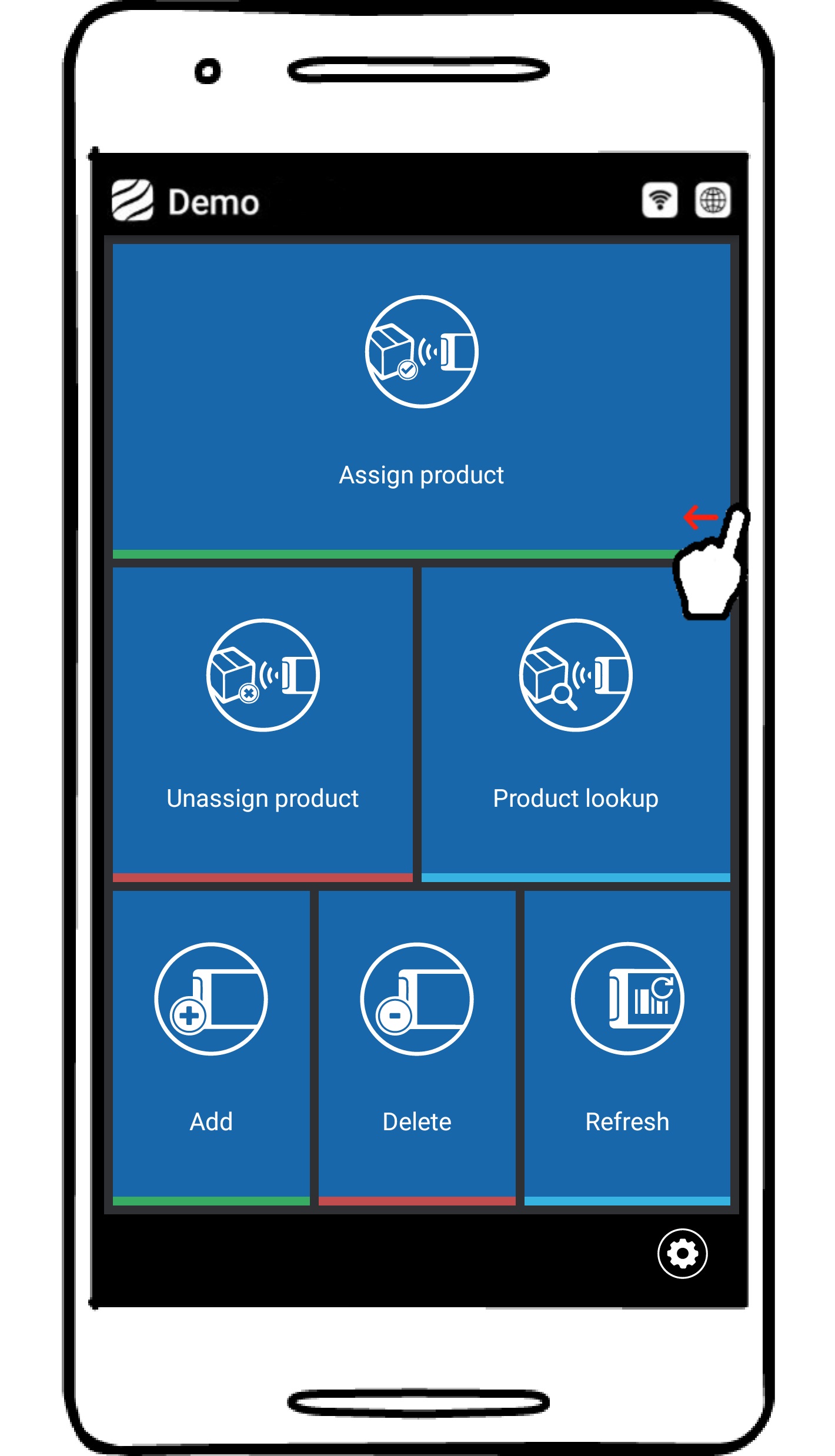

You find the Message Center by swiping in from the right on the main menu or selecting the globe icon in the top right corner.

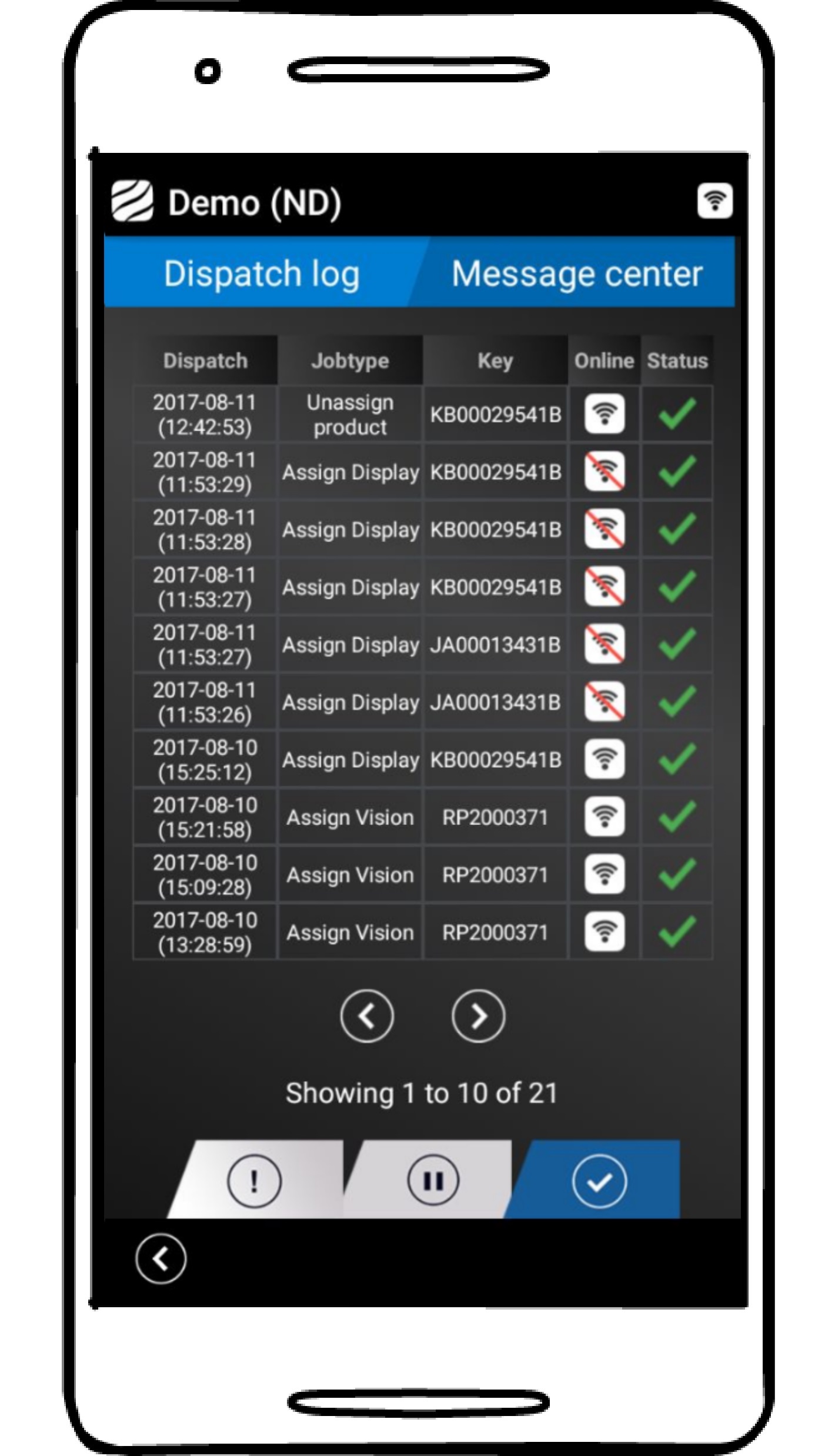

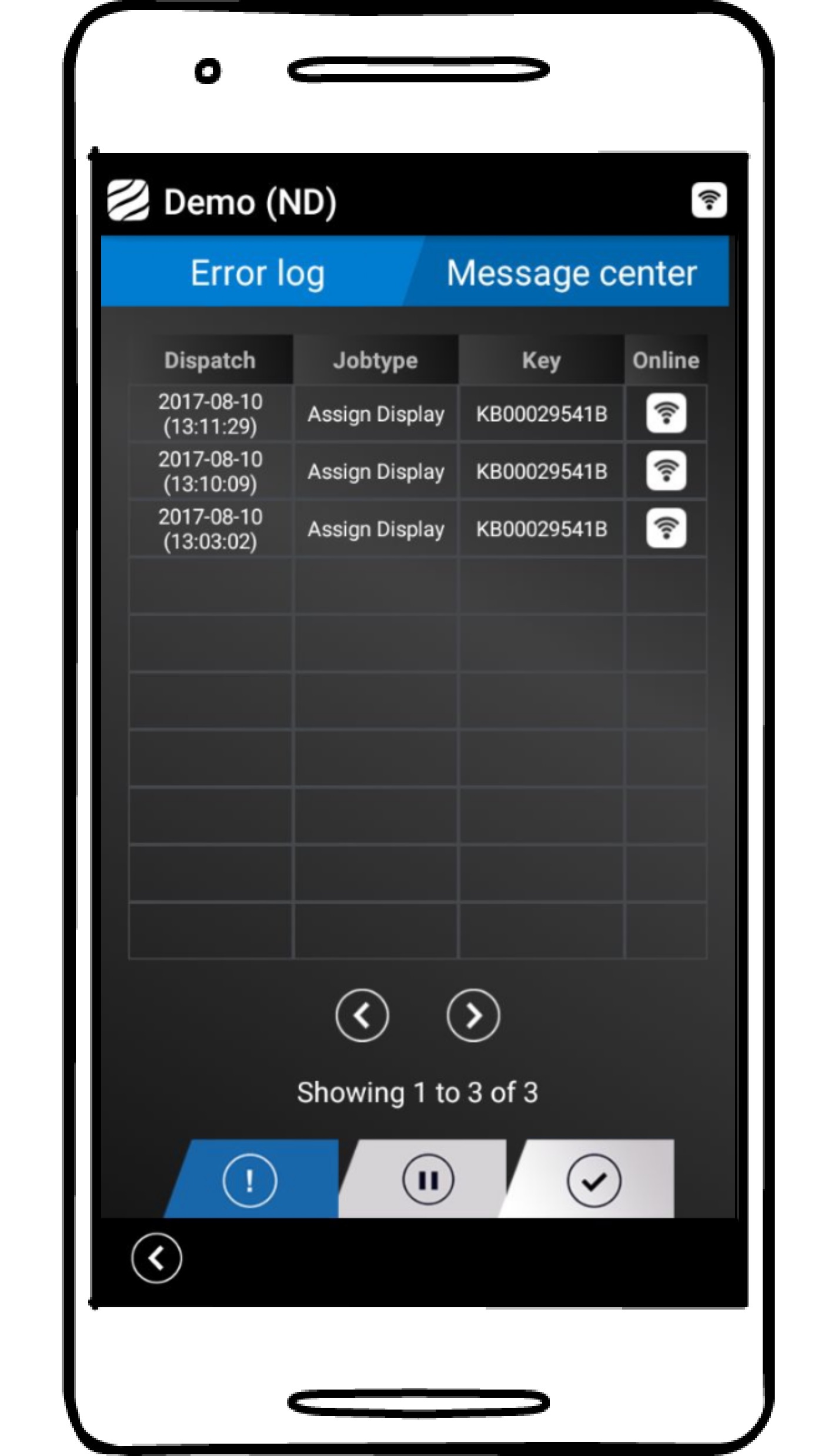

Dispatch Log
In the Dispatch queue, you will have an overview of all the activity in the application.

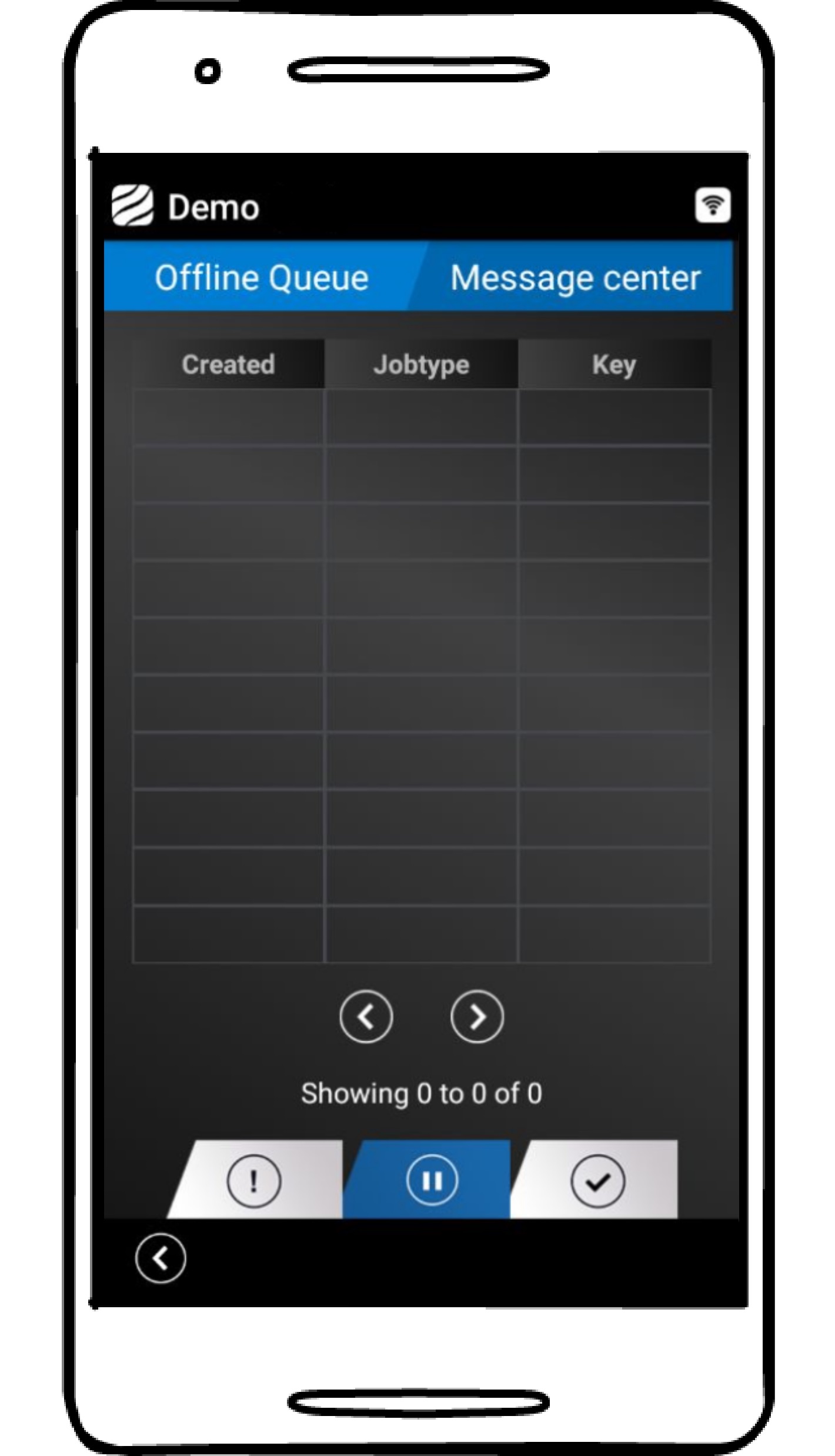

Offline Queue
If you are in offline mode you can see all the actions that are pending.


Error Log
In the Error Queue, you can see errors.


Select between input methods

When using the assist functions, you have different input methods.


You can configure the default input method of your choice in the configuration menu .

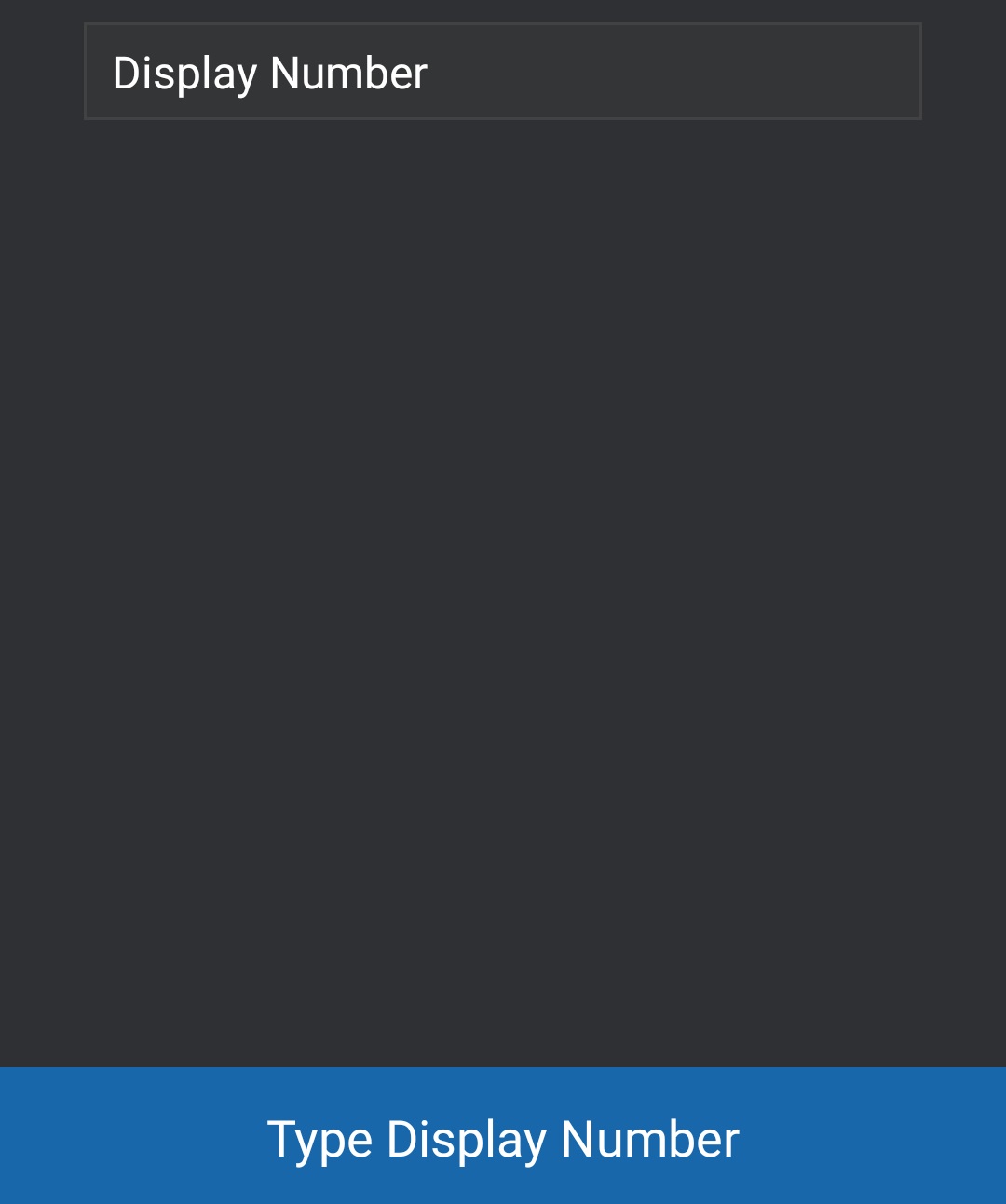

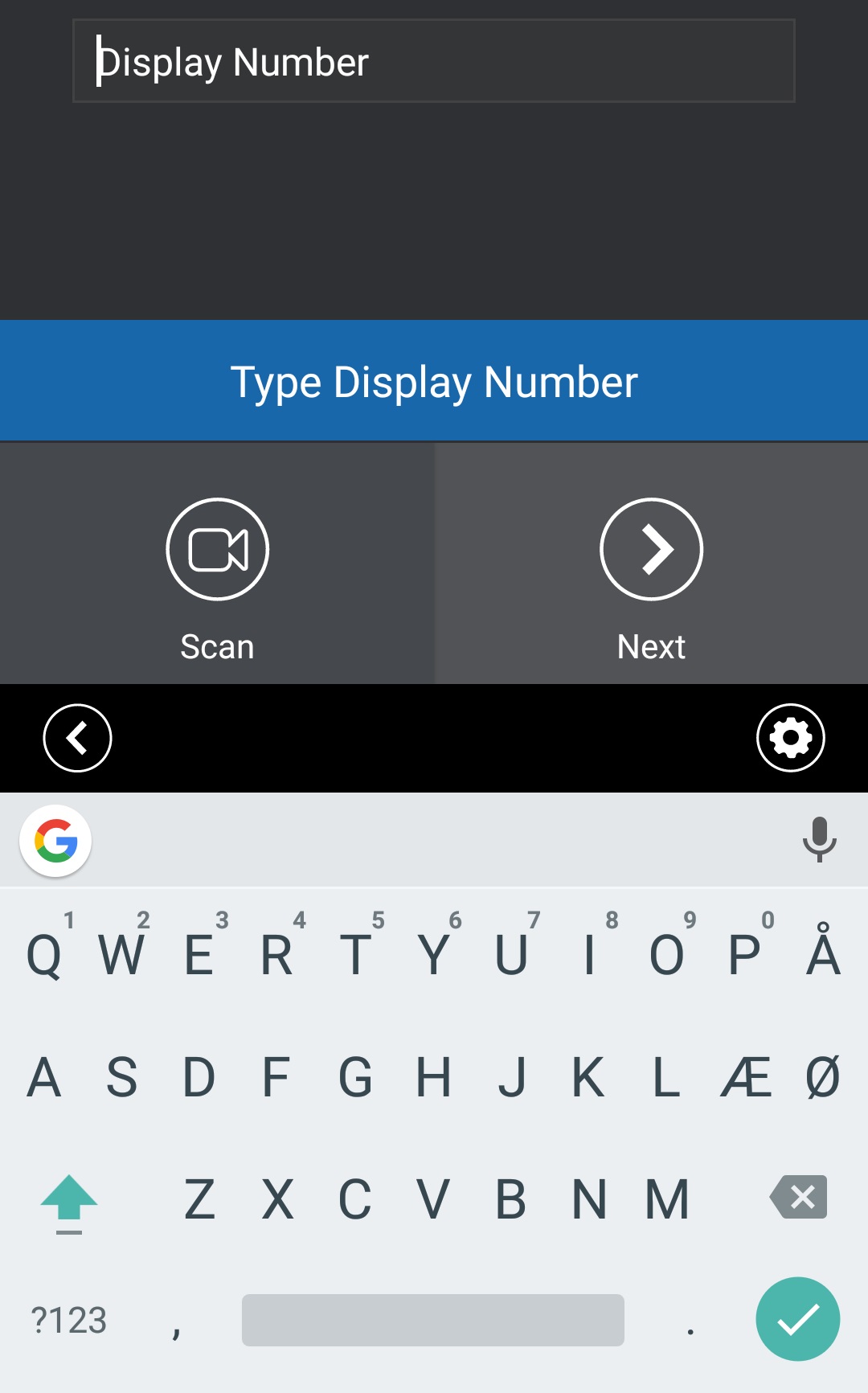

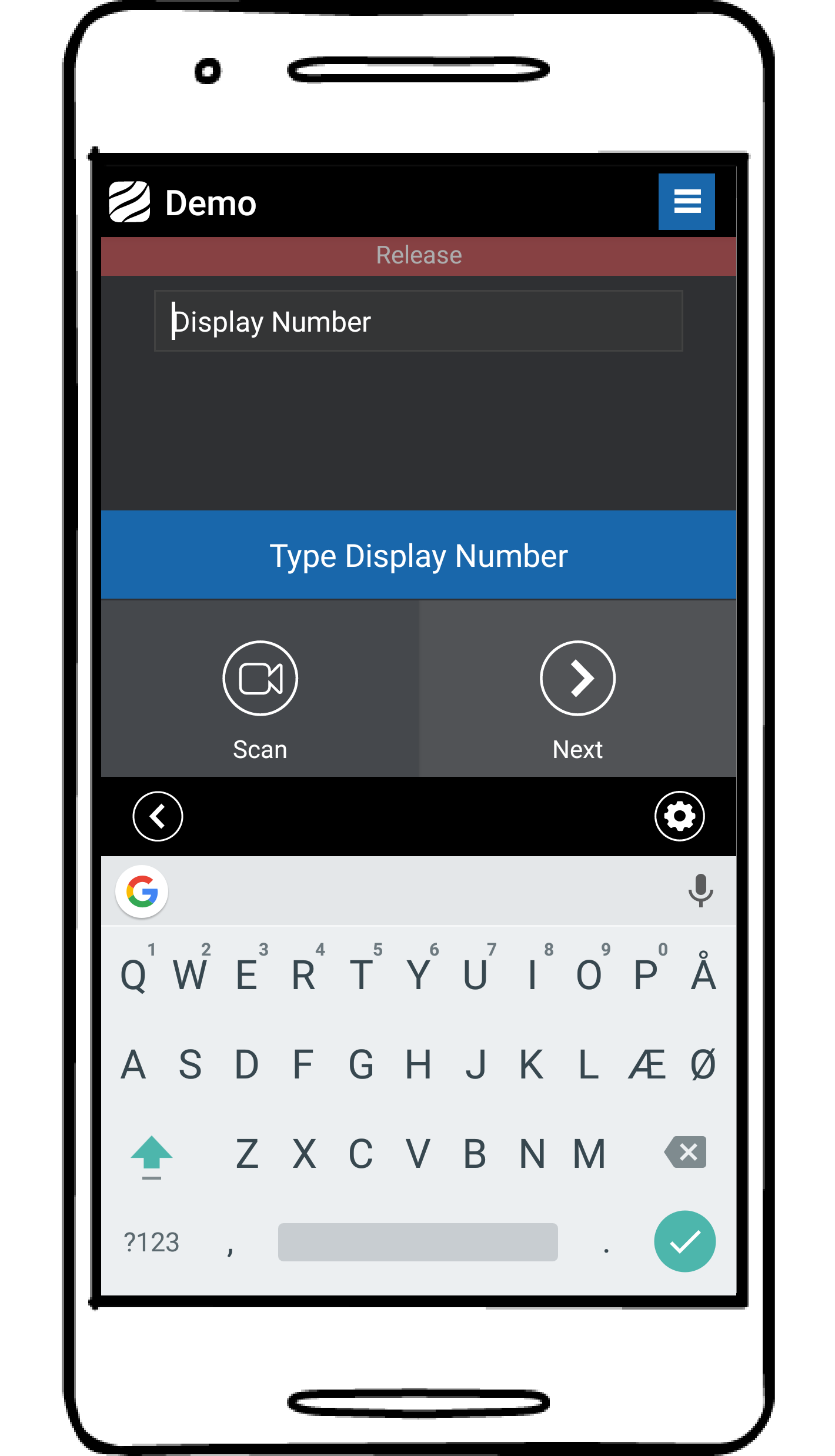

Keyboard

Used for manual input. Will bring up the on-screen keyboard.

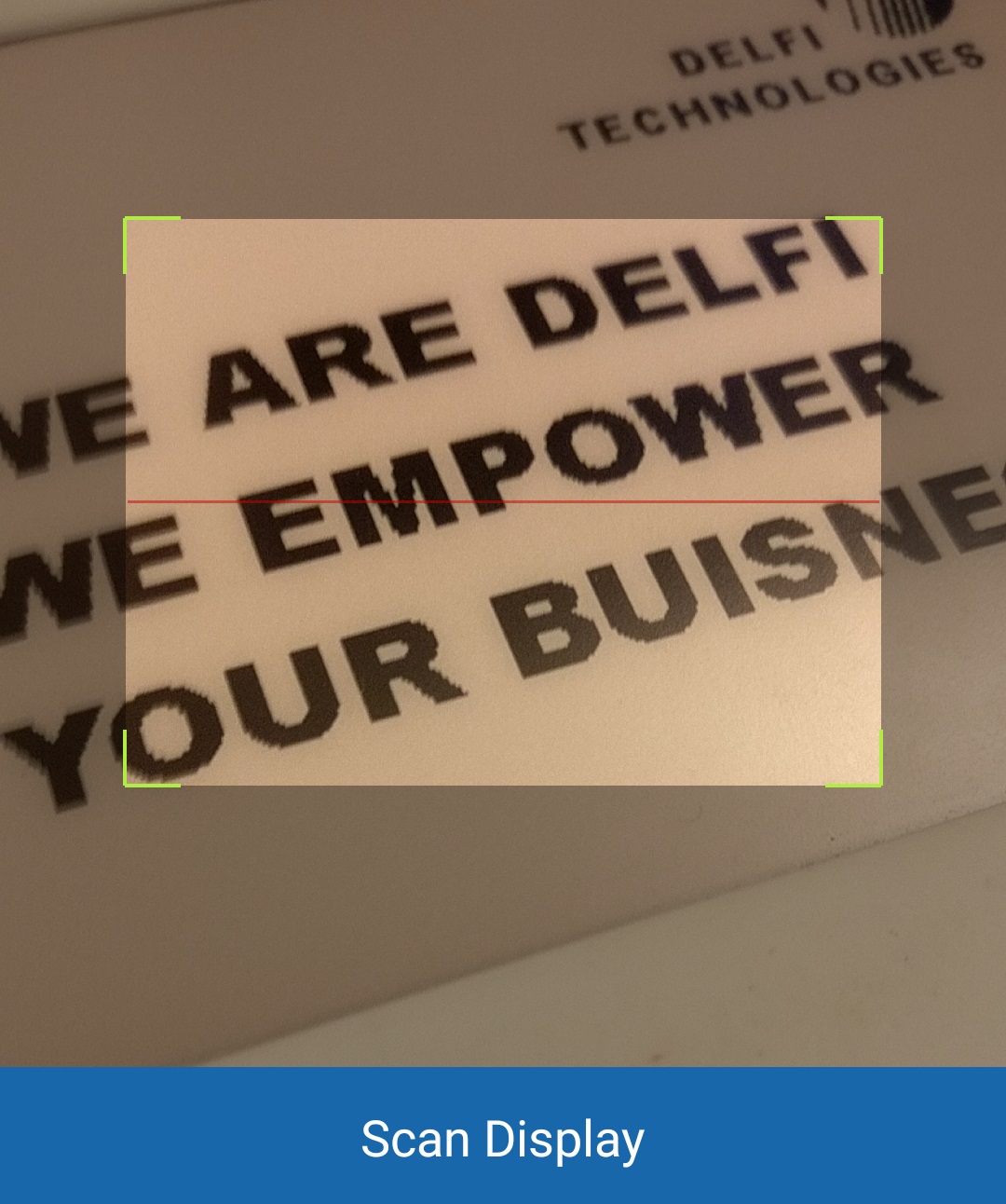

Camera

Use the camera to scan barcodes.

Scan

Used if you have a scanner in your device(recommended).



Assist actions

The Assist actions give you some powerful tools to manage your Breece Cloud system.



Assign product


  1. Enter the display or vision box you want to assign.
    • Press Next to confirm camera input (Optional Confirm camera input Enabled ).


Assign display

With the assign product action, you can assign one or more products to a display.

  1. Enter the product you want to assign to the display.
  2. Optional - You can select between different layouts by clicking the current layout in the top left corner.
    • You can finish anytime if you don't want to fill out all fields by clicking the green check mark in the bottom right corner. check mark in the bottom right corner.
  3. Press Next to confirm camera input (Optional Confirm camera input Enabled ).
When the assignment is confirmed you can assign the next display.




Assign Vision

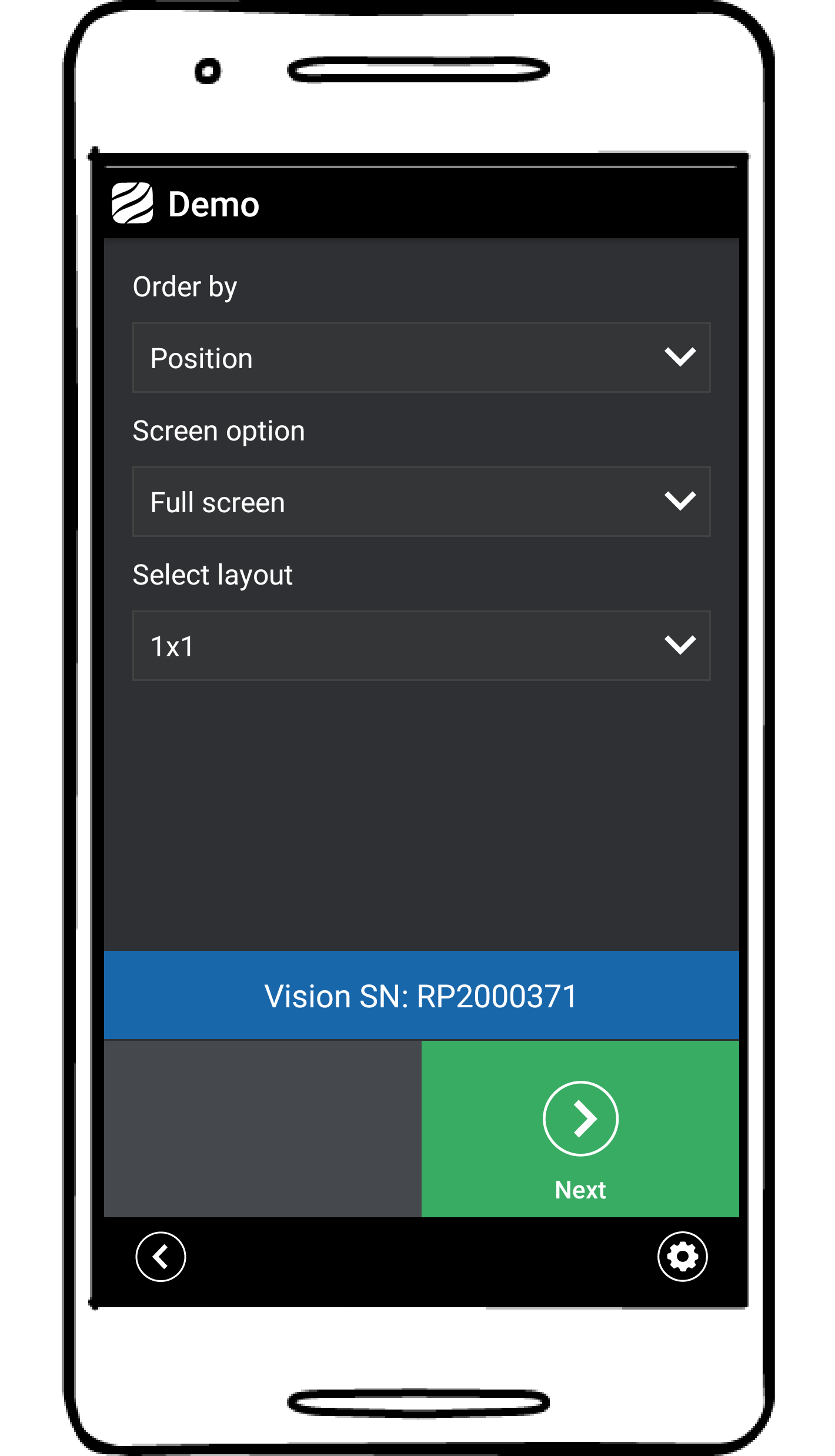

  1. In the Vision configuration screen, you can configure your vision.
    • Order by(select one)
      • Position(Default)
      You decide which order the products are listed in. You can switch two products around by selecting the two products.
      • Name and row
      The products are sorted by name and the application will place the products row by row.
      • Number and row
      The products are sorted by number and the application will place the products row by row.
      • Name and column
      The products are sorted by name and the application will place the products column by column.
      • Number and column
      The products are sorted by number and the application will place the products column by column.
    • Screen Option(select one)
      • Full screen(default)
      • Split screen
    • Select layout
      • Only layouts you have access to will appear.
        • When selecting a slideshow you need to define the slideshow interval.
  2. When first configuring a vision box you will enter an Initial assign screen. Here you can enter multiple products in easy succession.
    • You can finish anytime if you don't want to fill out all fields by clicking the green check mark in the bottom right corner.
  3. After you are done in the initial assign screen you have access to the Vision overview screen. Here you can see and manipulate all products assigned.
    • Select a product by clicking it.
      • You can see additional information about the product shown in the top of the screen.
      • Replace the product by entering the new product number or clicking the box in the middle of the screen.
    • Delete one product by click and holding the product dragging it into the bin in the bottom of the screen.
    • Delete all products by clicking "Release all".
    • Rearrange the products by holding a product and moving it with your finger on to the product you want it to change place with.
    • If you have selected split screen you can either click the arrows or slide between the two halves of the display.
    • If you select an empty field you will enter the initial assign screen and can assign products to empty fields.

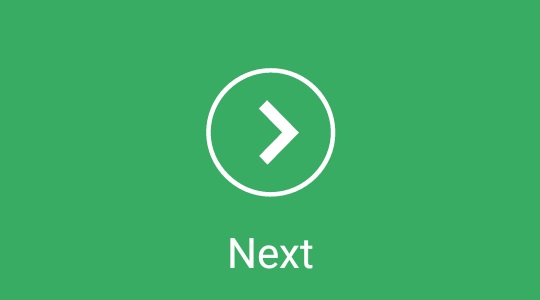

  4. Press Next to confirm your vision setup. You can now continue with the next display or vision box you want to configure.

Vision Configuration
Vision Overview

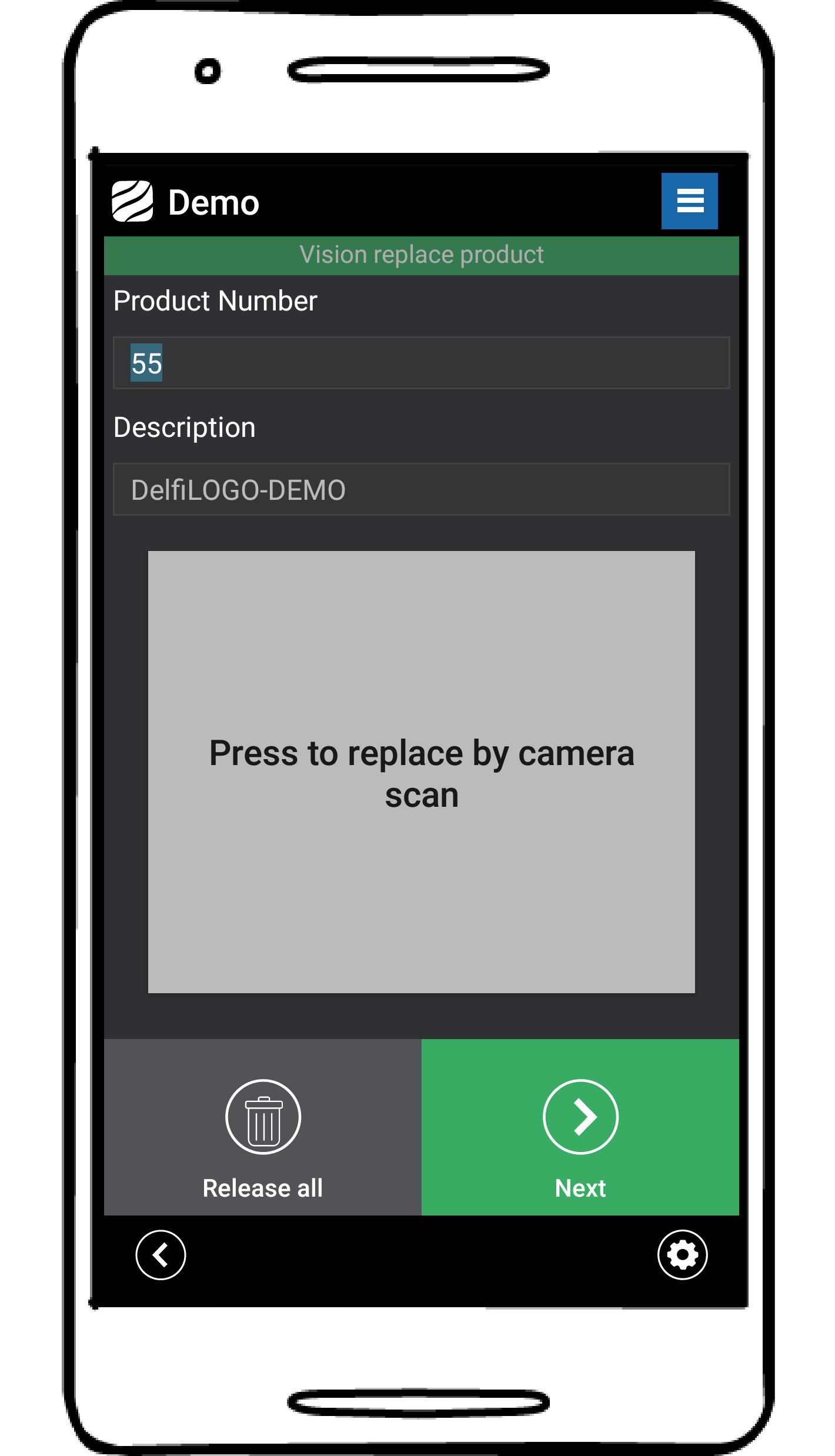

Vision replace







Unassign Product

With the unassign product action, you can remove the link between a display and product(s).

  1. Enter the display you want to unassign.
    • Press Next to confirm camera input (Optional Confirm camera input Enabled ).



Replace Display

With the replace action you can replace a display with a new.

  1. Enter the old display
    • Press Next to confirm camera input (Optional Confirm camera input Enabled ).
  2. Enter The new display
    • Press Next to confirm camera input (Optional Confirm camera input Enabled ).










Assign Manual Values

With Assing Manual Values action, you can assign values to manual fields on products.

  1. Enter product number.
    • Now you have a view of all the values you can change manually on the product.
  2. Change the values you need to change.
  3. Click to confirm the changes in the bottom right corner.

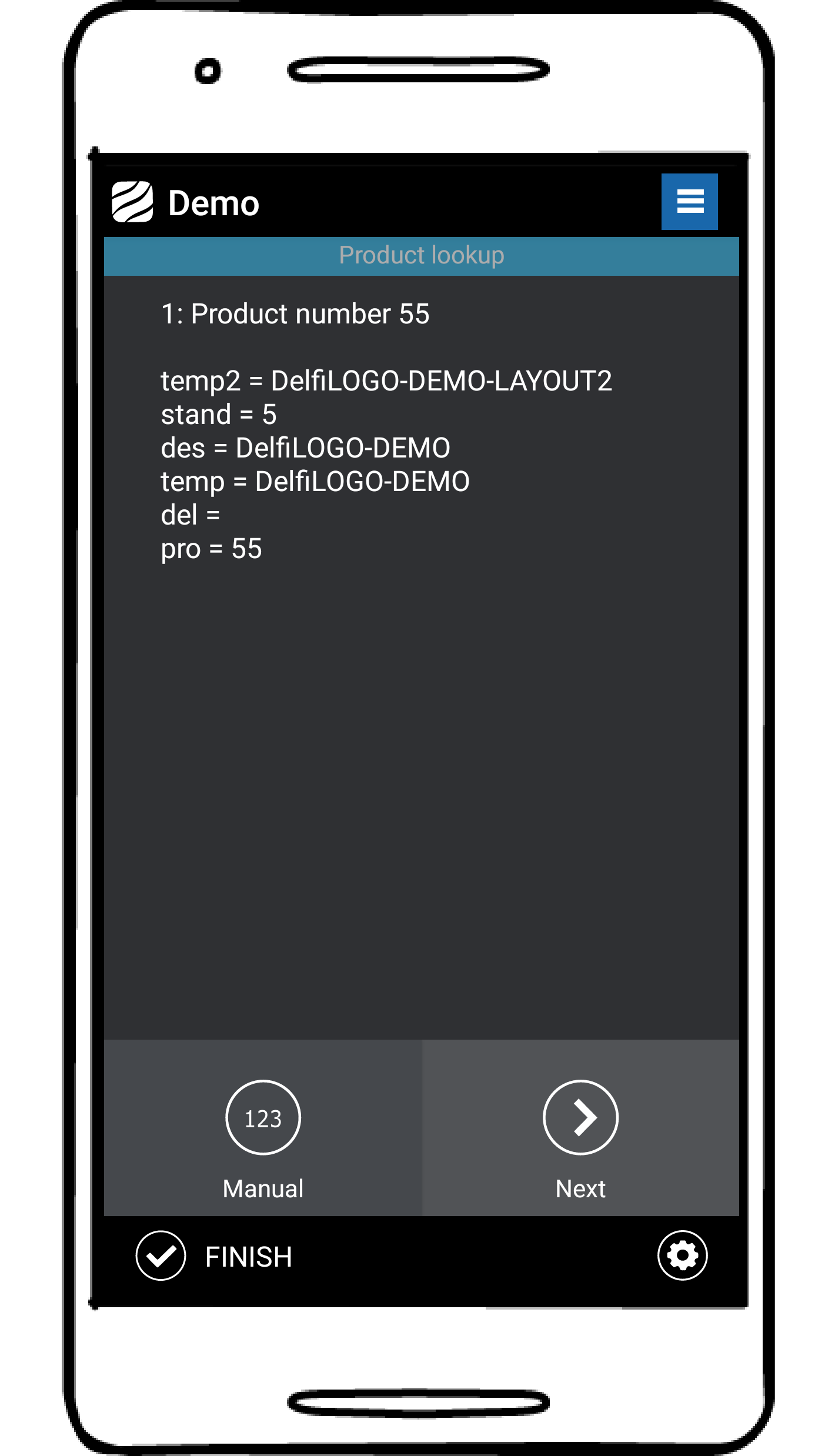

Product lookup

With Product lookup action, you can look up products. This will give you detailed information of a product or products linked to a display.

  1. Enter either the display serialnumber or product number.
    • Press Next to see the next product(When you have entered a display with multiple products attached).
  2. To view a new product press Finish.
note: you can modify the product details you want to see when making a product lookup.

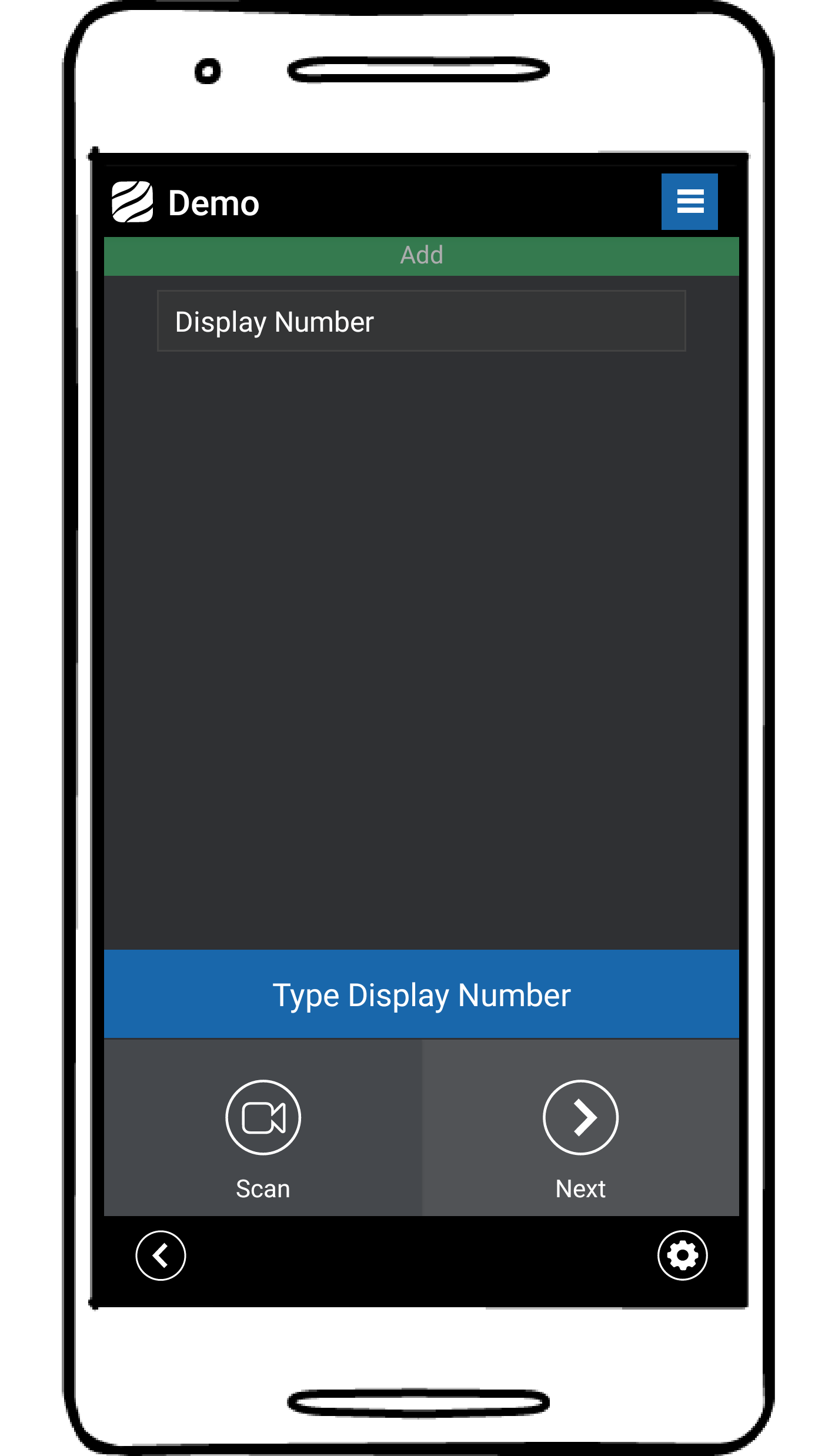

Add display to the installation

With the add action, you can add a display to the installation.

  1. Enter the display you want to add.
    • Press Next to confirm camera input (Optional Confirm camera input Enabled ).




Delete display from the installation

With the delete action, you can delete a display from the installation.

  1. Enter the display you want to delete.
    • Press Next to confirm camera input (Optional Confirm camera input Enabled ).

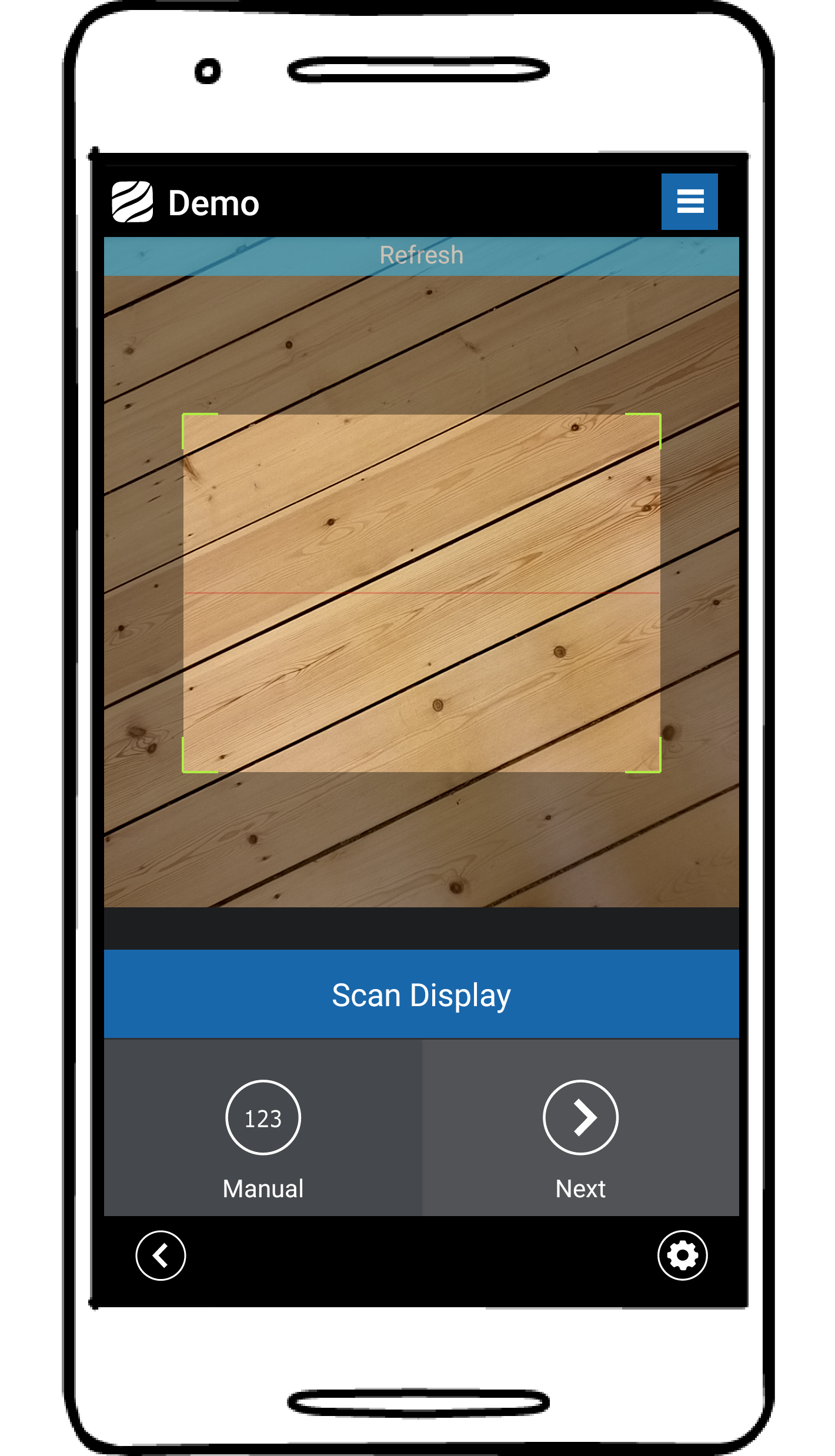

Refresh display

With the refresh action, you can refresh the image on the display. This is used to test the connection between display and installation.

  1. Enter the display you want to refresh.
    • Press Next to confirm camera input (Optional Confirm camera input Enabled ).

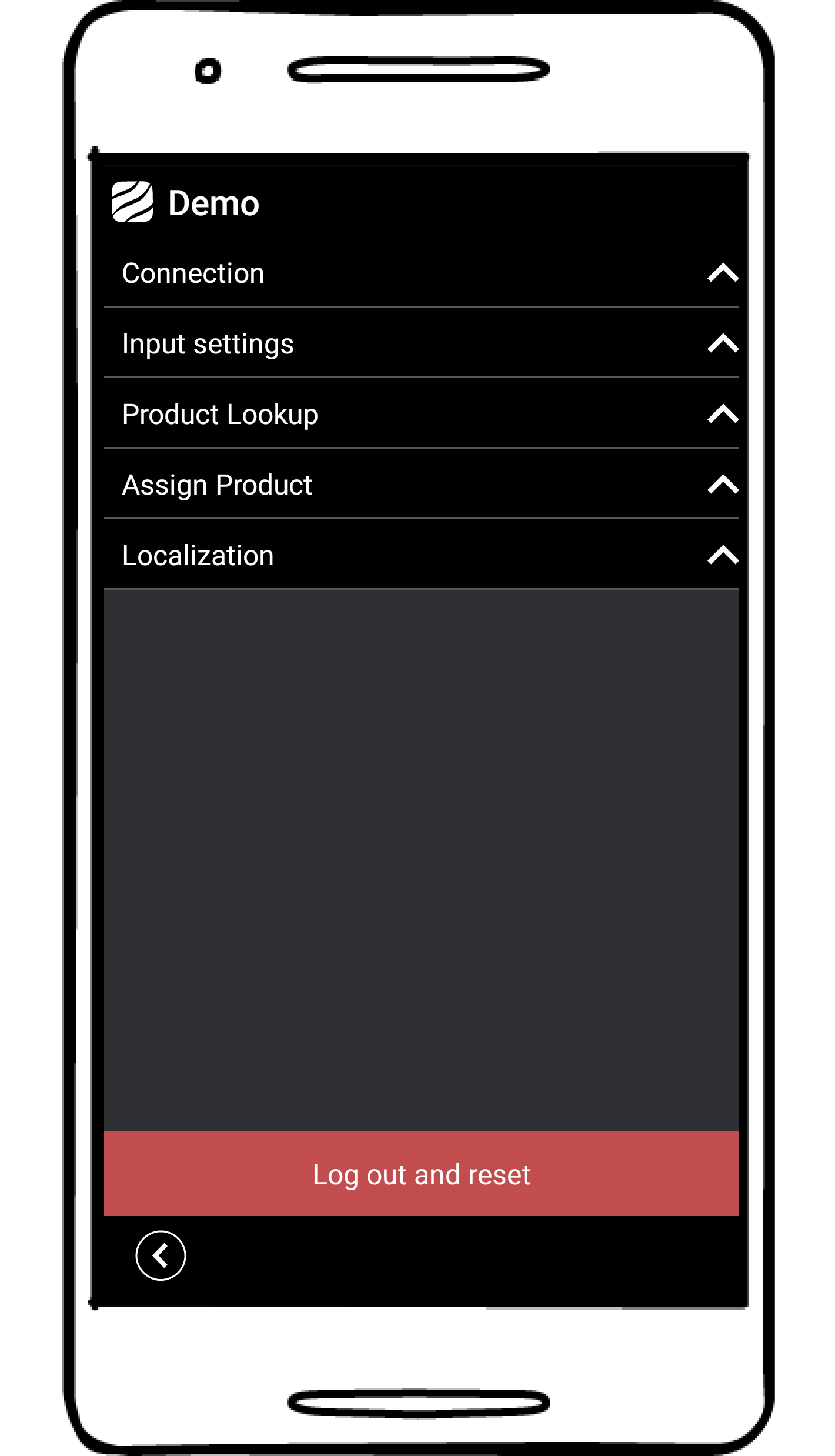

Configuration menu

You can configure the Breece Mobile Assist application from the configuration menu. This enables you to configure the application to your needs.


You can find the settings by pressing the small gear icon in the bottom right corner.




Connection


Setting
Description
Url
Here you can see the URL entry point for the Breece cloud API that the application uses to talk to the server.
Installations
Here you can see and select between the installations the service user has access to.


Input settings

You can set which input method you want as the default input in this section. This does not mean that you won't be able to use the other methods. It only means when you enter an action the input method of your choice will be active.


Input Setting(Adjustable for Displays and Products)
Description
Keyboard
When enabled use the on-screen keyboard to type displays or products.
Camera
When enabled use camera scan input to scan displays or products.
Scan
When enabled use the scanner on your device to scan displays or products.
Options

Confirm camera input
When enabled and using the camera, Mobile Assist will ask you to validate the input from the camera.

When you have validated the camera input Press Next.
Press for camera scan
If enabled, this setting will enable you to control, when the camera is searching for a barcode to scan.
Press anywhere on the screen to activate the camera.



If disabled, it will always be searching for a barcode to scan.
Convert camera input UPC to EAN
Will enable UPC to EAN conversion when using the camera scan function.
Convert Code 39 to Code 32 Will enable conversion from Code39 to Code32.
Product keyboard input - numeric only
Changes the product keyboard to a numeric-only keyboard. If your products only consist of numbers enable this setting.

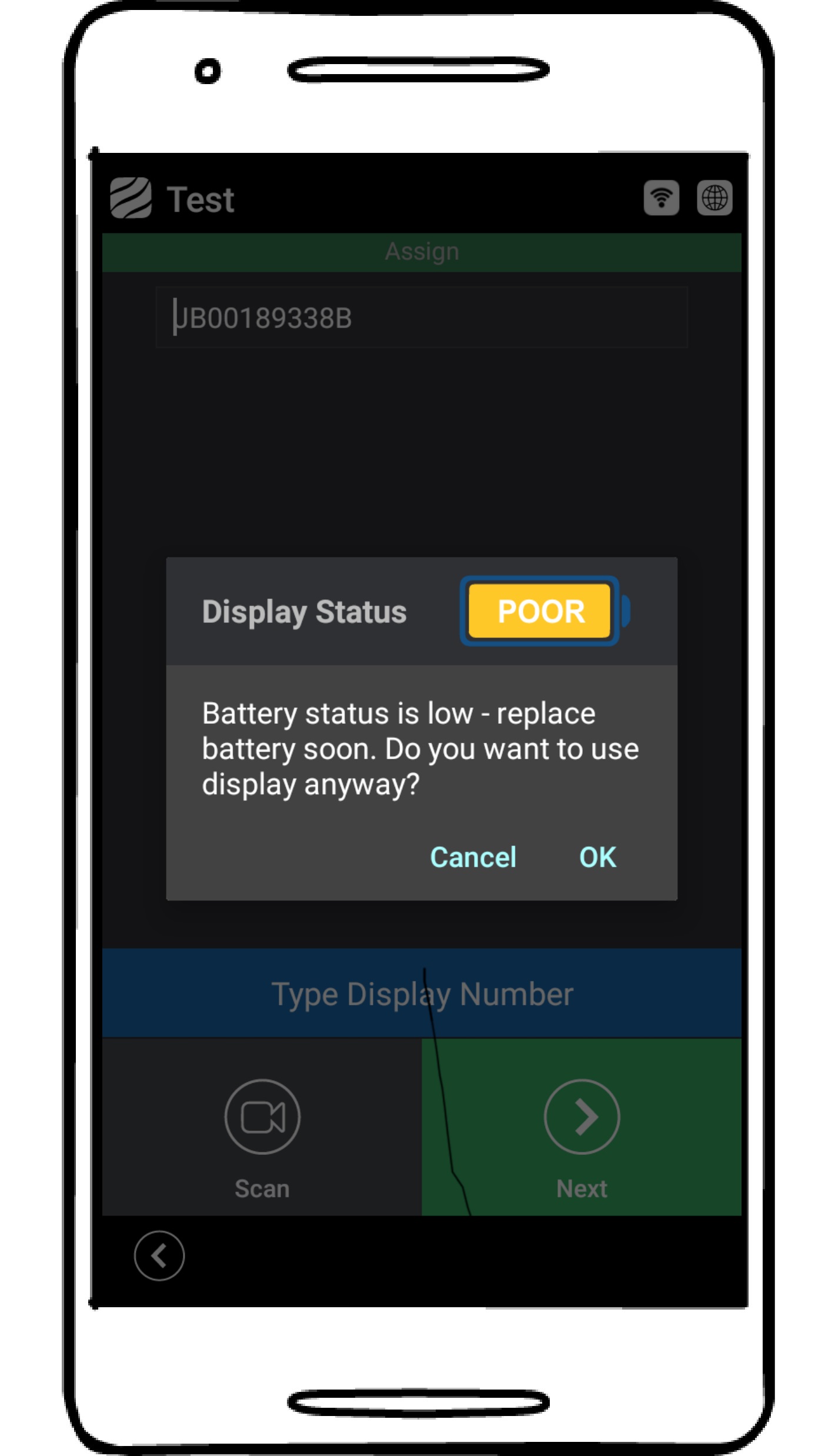

Display status check
When you encounter displays that need attention, like "low battery", you will be prompted for a message telling you whats wrong.



Product lookup

Headers
Here you can select which product information you want to see when you make a product lookup.


Assign product

Validate product input

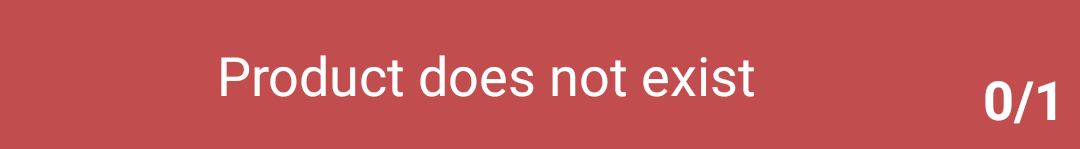

When assigning a product, Mobile Assist will look on all products in the installation and validate that the product exists.

Enabled - You can't assign products, that doesn't exist in the installation.

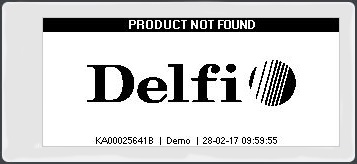

Disabled - You can assign products, that doesn't exist in the installation. The display will show a "product not found" error.

Override product validation option
Can only be enabled if "Validation product input" is enabled.

Enabled - Will assign the product even if has not been validated. The display will show a "product not found" error if not validated.

Disabled -You can't assign products, that doesn't exist in the installation.


Localization

Select language

Available languages

  • English
  • Danish
  • Swedish
  • Norwegian
  • German
  • Italian
