Daily routines in the store


Breece moves all the daily routines regarding management of the electronic displays to the shelves via our handheld terminal solution – Breece Mobile


This results in an easy to use system, and ensures simple management of all the displays in the store. You can also choose to manage the displays behind the premises with the Breece Explorer utility witch can be installed on as many PC’s as needed. Via the Breece Explorer you can, other than the functions Breece mobile makes available, see live overview of system health and details about products and displays.

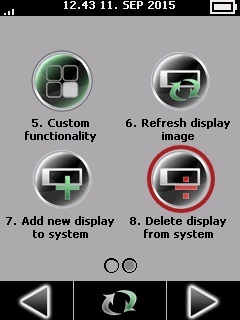

Navigation Breece Moblile

Stylus

Use the stylus to ease the interaction with the screen.

Shortcuts

You can use the keys 1 through 8 to select the different menues on the main screen.

Keyboard

You can access the on screen keyboard be clicking the top of the screen with a stylus. When you don't need it any more you click just click the top of the screen again.



1. Assign product to display

When a display is mounted on the shelf or the product on the shelf change we need to set up a relationship between display and product, so the system knows which information and prices to be displayed for that given product.

  Breece Mobile
  1. Select menu option ”Assign product to display” in the main menu.
  2. Scan ID barcode on the display.
  3. Scan product barcode or enter product number in the field and press Enter.
  4. Repeat step 2-3 until all products is registered.
  5. Synchronize the terminal.




  Breece Explorer
  1. Select the Tab ”Display Administration”.
  2. In “Display Actions” on the right side select “Attach display to product”
  3. Scan or type ID barcode of the display.
  4. Scan product barcode or type product number.
  5. Finish with Enter or press ”Perform”.


2. Release product from display

If a product is deleted or a display is removed from the shelf. The relation between the display and the product need to be removed. The Display will show the message “Ready for use”. When a display shows this message it will not be affected by product updates and the display will safe battery life.

Breece Mobile
  1. From main menu select ” Release product from display”
  2. Scan ID barcode on the display.
  3. Repeat step 2 until all products is registered.
  4. Synchronize the terminal.




Breece Explorer
  1. Select the Tab ”Display Administration”.
  2. In “Display Actions” on the right side select “Release display from product”.
  3. Scan product barcode or type product number.
  4. Finish with Enter or press ”Perform”.


3. Replace a display with a new


If a display is damaged or you just want to change the display to another display type, You can move the link between a product and display from one display, to another. Without scanning the product.

  Breece Mobile
  1. Select menu option ”Assign product to display” in the main menu.
  2. Scan ID barcode on the display.
  3. Scan product barcode or enter product number in the field and press Enter.
  4. Repeat step 2-3 until all products is registered.
  1. Synchronize the terminal.




  Breece Explorer
  1. Select the Tab ”Display Administration”.
  2. In “Display Actions” on the right side select “Attach display to product”
  3. Scan or type ID barcode of the display.
  1. Scan product barcode or type product number.
  1. Finish with Enter or press ”Perform”.


4. View product details

Breece Mobile
  1. From main menu select ”View product details”.
  2. Scan the product number.




  Breece Explorer
  1. Select the Tab ”Product”.
  2. In the product number field search for the product.


5. Custom functionality

The custom menu is for custom functionality. Contact Delfi Technologies for more information.


6. Refresh display image

With this menu you can manually force the display to update the screen. Examples of use:
  • A display hasn’t been update with the right price.
  • An antenna has been disconnected and the display has lost the connection. After the antenna has regained connection there can go up to XX hours before the display has been automatically refreshed.

Breece Mobile
  1. From main menu select ” Refresh display image”
  2. Scan ID barcode on the display.
  3. Repeat step 2 until all displays is registered.
  4. Synchronize the terminal.




Breece Explorer
  1. Select the Tab ”Display Administration”.
  2. In “Display Actions” on the right side select “Force Update”.
  3. Finish with Enter or press "Perform”


7. Add new display to system

If you receive new displays that is not configured with your system, you need to add the displays. Start by placing the display near the main antenna. The main antenna is marked by a red dot.

Breece Mobile
  1. From main menu select ” Add new display to system”
  2. Scan ID barcode on the display.
  3. Repeat step 2 until all products is registered.
  4. Synchronize the terminal.




Breece Explorer
  1. Select the Tab "Display Administration".
  2. In "Display Actions" on the right side select"Add new display to system".
  3. Enter the serial number off the display.
  4. Finish with Enter or press "Perform”

Handling of failed displays

Breece system offers bidirectional Communication between Breece server and the displays. This enables the system to detect errors either in the communication or if the displays fails in another way.

Display failure can be divided into two groups. Physically damaged displays and displays that report failure in the Breece Explorer.

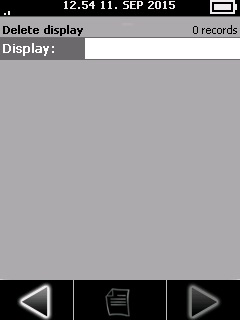

8. Physically damaged displays


In the event that a display are dropped or in another way gets damaged, the display needs to be removed from the system. When removed it needs to be handled as electronic waste.


Breece Mobile

  1. From main menu select ” Delete display from system”
  2. Scan ID barcode on the display.
  3. Repeat step 2 until all products is registered.
  4. Synchronize the terminal.


  Breece Explorer
  1. Select the Tab ”Display Administration”.
  2. In “Display Actions” on the right side select “Delete display from system”.
  3. Scan ID barcode on the display.
  4. Finish with Enter or press ”Perform”


System failed displays


In Breece Explorer you can see the System overview in the first Tab ”System overview” The system overview will show all the displays that are reporting errors. If a display fails to update the system will try to update the display several times before it ends up in the list of displays that are reporting errors.

List of the most common faults and solutions

Failed radio coverage check (RF faults)

The Failed radio coverage check means that the system can’t send new information to the display. The reason for this can either be that the display is out of range of the antenna or the display has a defect/damaged.

Solution: Find the display and make sure it is within coverage. Attempt to “Force Update” the display – if the display still shows the same error delete it from the system and send it in for replacement if it’s under warranty.


Product does not exist

The Breece system product catalog synchronize automatically from the underlying system where product administration is performed. If a product has got a new barcode or doesn’t exist in the in underlying system Breece won’t recognize the product number.

The overview will show the product number that has beed tried utilized. When the product or the barcode is created. The display will automatically be updated and removed from the system failed list.

Soluition: Create the product or barcode in the underlying system and synchromize the system


Low battery

The displays is tested to run for years without changing the battery if it updated maximum 5 times a day. It can happen that a battery fails and is discharged faster than normal. The breece System uses 2-way communication to detect if a display reports low battery. When a display reports low battery it will show on the display with an icon. The displays uses CR2450 batteries. The Displays will function normally in temperatures from 0°C to 40°C.

Soluition:

There are two icon types:

Displayed when the display has low battery. Change the battery.

Displayed when the display is mounted in a cool area below the recommended limit. Move the display to new location where the temperature is in the recommended limit. Wait for the display to warm.

If the display was not in an area below the recommended limit send the display in for replacement.


Display Network/system configuration failure

Every display needs to be enrolled to function with the specific store. If the display fails in this process the display can’t get info from the system and will not show product information.

Soluition:

 Place the display under the primary antenna (often marked with a red dot). Try to reconfigure the display from the system overview by right clicking and selecting “Reconfigure”. If the display continues to fail and is under warranty you need to send the display in for a replacement. If it’s not under warranty you need to handle it as electronic waste.


Mounting the diplays on the shelf

In order to achieve the optimal viewing angle for the customer we recommend that the displays is mounted as described in the illustration below.



Display modeloverview

The Chroma series have four sises. Chroma 21, Chroma 29, Chroma 42 and Chroma 60. Their operating temperature range is between 0°C to 40°C.




The Aura series have three sizes. Aura 21, Aura 29 and Aura 42. Their operating temperature range is between 0°C to 40°C.




When using the displays in a refrigerator be aware that the tempeture around the cooling elements can be lower than 0°C and can cause the display to malfunction.


Infrastructur

The Dynamic Communicator is the device that communicates with the displays. This happens with radio waves on frequency 868Mhz or 915Mhz. The Device is resilient to interference from other sources such as Bluetooth and WiFi.

The Dynamic Communicator enables 2-way communication between the Breece System and the displays. This means that the system gives the user information on the state of the system. If something goes wrong in the display, product or antenna the user will be notified in the Breece Explorer application.

 On startup the indicator flashes constant.




Breece Mobile

A key feature in the Breece System is Breece Mobile. This enables the user to manage all the displays in an easy to use and effective way. Data between the terminal and Breece system is via WiFi or batch.

This means that when you make an action on the terminal it will automatically communicate with the Breece system and make the change on the display.

  Capture

Breece Explorer

With Breece Explorer you can get deep insight in the stat of your system. Breece Explorer will inform you on every change in the system and will give out easy access to the information you need like displays that have failed or antennas that aren’t working properly.



 On the first page ” System Overview” you get a full overview of all failed displays, if an antenna has been disconnected, how many jobs that are running, the number of displays and products linked to your system and times of when they were last updated

 “Display Administration” allows you to manage your displays. You can look up displays with serial number. When you select a display you can see specific details about the display

 ”Product administration” allows you to see all the product date you have. You can look up products with the product number. When you select a product you can see specific details about the product

Standard login for Breece Explorer

Username        : BreeceUser
Password         : Br33c3Us3r
